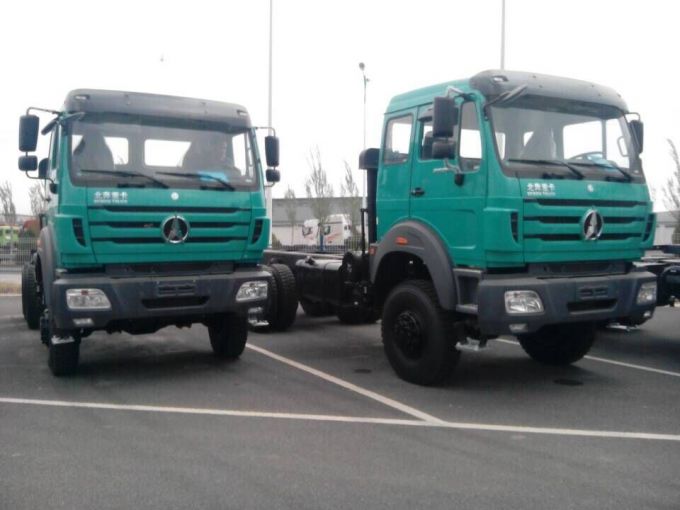

Mercedes Benz Technology North Benz Lorry Truck Cargo Truck for Sale

Mercedes Benz technology North Benz Lorry Truck Cargo truck

Traction type: 6X4
Driving type: LHD (RHD is optioned)
Cabin: North Benz, length cabin, flat head, double doors, tippable

Engine brand: Weichai
Engine model: WD615.46 EURII
Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line
With water cooling, turbo-charging & intercooling
Displacement: 9.726 liters
Max. Output: 360HP@2200rpm
Max torque: 1460NM@1100-1600rpm
Bore/Stroke(mm): 126/130
Mean Position Speed: 9.53m/s
Compression ratio: 15.5: 1
Specific fuel consumption: 198g/Kwh

Gear box: Fuller 9 speeds (RT11909C)
Clutch: GF420 clutch type
Steering: ZF8098 steering from Germany

Front axle: Benz front axle
Rear axle: Benz strengthened axle (punching-welding axle housing, double
Reduction driving axle, inter-wheel differential and differential lock)
No. Of axle: 3
Tyre: 12.00-20 (rim: 8.5-20)
No of tyre: 10+1 spare
Spring: 13/13
Fuel consumption (L/100km): 36
Fuel tank capacity (L): 300
Max. Speed (km/h): 85
Max. Gradeability(%): 30
Kerb. Mass: 11200kg
Towing mass: 13670kg
Total mass: 25000kg
Wheel base (mm): 5050+1450
Front overhang (mm): 1410
Rear overhang (mm): 2505
Track width(mm): 1995/1800
Turning circle diameter: 24m
Approach angle: 26 degree
Departure angle: 22 degree
Dimension (mm): 10145X2495X3260

Body:
Inner size (mm): 7800x2350X600
Thickness of body steel (mm): Floor 4 side & back 2
