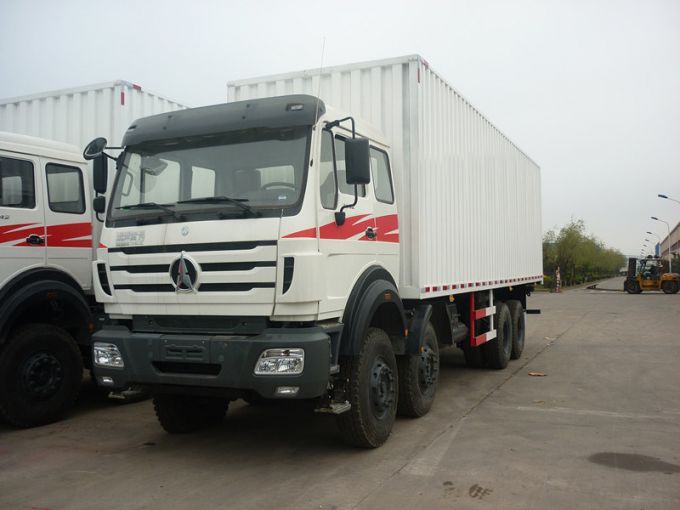

High Quality Beiben 8X4 Cargo Truck

High Quality Beiben 8X4 Cargo truck

For the upper body of cargo truck, we can make it in different type as follwoing pictures,Van box, cargo box, fense box and so on. In aword, we can make the box as your request, so just tell us your request.

1.Specification:

Dimension(Lx WxH)(unloaded)
Approaching angle/Departure angle(°)			26/20
Upper body dimension(mm)			8000x2300x800Option+1200 fense+20cm fense covering; Thickness: side 1.2mm; bottom 1.8mm, Main as your request
Overhang(front/rear)(mm)			1410/2666
Wheel base(mm)			5050+1450
Max speed(km/h)			85
Curb weight(kg)			11300
Loading Weight(kg)			18700kg
Engine	Model		WD.615 280hp /WD615. 32 320hp /34 340hp /380hp water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection
Steyr technology, made in China	Displacement (L)		9.726/Diesel
	Bore Xstroke (mm)		126/130
	Max power(kw/rpm)		247/220
	Max torque (Nm/rpm)		1500/1350-1500
	Emission		EURO II
Fuel tanker(L)			400
Clutch		Model	GFX420, Single dry frictional disc,Hydraulic boosting
Gearbox		Model	9JS150A,mechanism,9gears,1reverse gear, manual,
Brake system		Service brake	Brake gap can be adjusted automatically, double circulation air brake system
		Assistant brake	Engine exhaust brake
		Park brake	Potential springs pressing on middle and rear wheels
Steering system		Model	TAS85,
frame		Fish belly, shape, variable width, variable sections, side beam structure
Front axle (use Mercedes BenzTechnology)		Double-shoe pneumatic brake, non-driving steering axle
Middle and Rear axle (use Mercedes Benz Technology)		Double-shoe pneumatic brake, casting, double reduction driving axles
Transfer case		VG1400
Tyre		12.00-20
Electrical system		Battery		2X12V/135Ah
		Generator		28V-35A
		Starter		5.4Kw/24V
Cab		NG80 Long cabin with single sleeper;
		Full steel skeleton structure, covered with double layer steel plate;
		Can be tipped forwardly;
		With inner A/C

2.Company information:

SEIZE THE FUTURE INTERNATIonAL GROUP is aheavy automobile business unit with the approval of State Administration for Industry and Commerce and State Development Planning Commission and is one of rare domestic enterprises with the authority of Ministry of Commerce.
Team:
1.Exporting trucks and construction machinery for 10 years.
2.Having cooperated with more than 180 customers, exported and reached 80 countries around the world.
3.Perfection for sales, parts -supply, after -sales service team.

We specialize in heavy duty truck and construction machinery for more than 10 years and directly cooperate with Shacman,Beiben and Sinotruk Iveco
Hongyan,ZOOMLION,SHANTUI factory and so on.

3.Contact me:

Susan Zhang

Qingdao Seize The Future Automobile Sales Co., Ltd



Tel: 0086 18153209768
