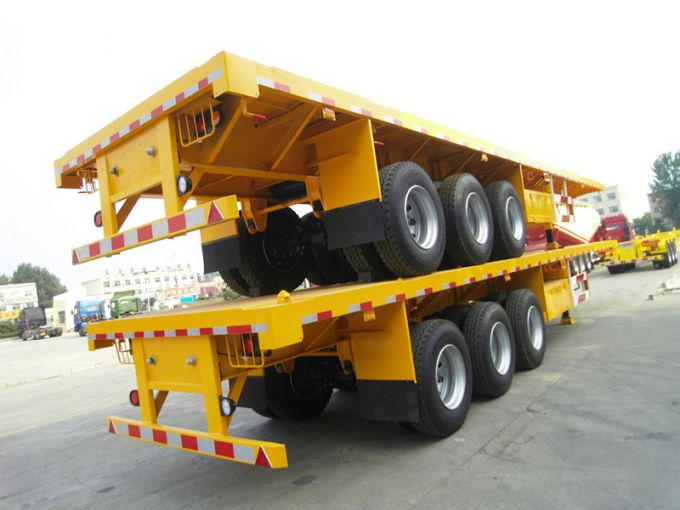

Cimc 3 Axles 40 Feet Flat Bed Container Semitrailer

CIMC 3 axles 40 feet flat bed container semitrailer


MODELZJV9353TJZ CIMC brand
Description of vehicle40"
Axle3-axle13ton FUWA, 16T brake disc
Outrigger/Landing gearJOSTD200T
Gross weight (kg)45000
Tare weight (kg)4500
Payload (kg)40000
External dimension (L*W*H) mm12400x2500x1510

Wheel base(mm)7190+1310
Front/rear overhang(mm)1957/1170
Tires 12R22.5Tubeless tire
Quantity of tires8
Leaf spring7/7
King pin3.5" JOST brand
Brake SystemDual air brake system, 2*40 Liters Air Pressure Tanks; Relay emergency valve, none ABS system.
Brake chamberType 30 on the front axle, type 30/30 on the rear axles
Electrical System24 volt lighting system with modular wiring harness, 7 way ISO receptacle in front of the front bolster, norms NO.1185. Chinese standard .
Beam 6 mm web welded -section main beam. The thickness of top flange is 14mm, the bottom flange is 16mm.

Thickness of bottom steel3mm (checkered iron)
PaintingColored by customer's request
Accessoryone tool box (box only); provided with 2 spare wheel holder (winch), without tires and wheels.

MODEL	ZJV9353TJZ	CIMCbrand
Descriptionofvehicle	40"
Axle	3-axle	13tonFUWA,16Tbrakedisc
Outrigger/Landinggear	JOSTD200T
Grossweight(kg)	45000
Tareweight(kg)	4500
Payload(kg)	40000
Externaldimension(L*W*H)mm	12400x2500x1510
Wheelbase(mm)	7190+1310
Front/rearoverhang(mm)	1957/1170
Tires	12R22.5	Tubelesstire
Quantityoftires	8
Leafspring	7/7
Kingpin	3.5"	JOSTbrand
BrakeSystem	Dualairbrakesystem,2*40LitersAirPressureTanks;Relayemergencyvalve,noneABSsystem.
Brakechamber	Type30onthefrontaxle,type30/30ontherearaxles
ElectricalSystem	24voltlightingsystemwithmodularwiringharness,7wayISOreceptacleinfrontofthefrontbolster,normsNO.1185.Chinesestandard.
Beam	6mmwebwelded-sectionmainbeam.Thethicknessoftopflangeis14mm,thebottomflangeis16mm.
Thicknessofbottomsteel	3mm(checkerediron)
Painting	Coloredbycustomer'srequest
Accessory	onetoolbox(boxonly);providedwith2sparewheelholder(winch),withouttiresandwheels.
