3 Axle 40000L-50000L Water Transport Tank Semi Trailer for Sale

  • 3 Axle 40000L-50000L Water Transport Tank Semi Trailer for Sale
  • USD 18600.40 /Unit
  • 1 Unit
  • 93 Unit
  • 11 days
Product Description
3 axle 40000L-50000L water tanker trailer, water transport tank semi trailer for sale
Tri-Axle 48000liters/48ton carbon steel/stainless steel/aluminum alloy Water Tank Semi Trailer/Water transportation tanker trailer
water tanker series
1 .With optional stainless steel;aluminium alloy & Q235-A carbon steel . 5-10mm thickness .
2. Adapt famous pump brand.
3 The main parts implements automatic welding, while the accessories apply carbon dioxide welding to ensure the tank in good performance.
4 Sub crossbeam apply rectangle steel sheet that thickness more than 5mm, stick out in one time.
5. Painting held more tolerance and coherence, can make sure the tank in good situation more than 5 years.
7 According to customer's needs:
a. The pump can be designed to pump in and out throw meter, or not through meter, self-flow through or not through meter.
b.The tank can be designed as a single compartment or several compartments.
c. You can choose to install heating pipes, insulation layer. The Insulation material is generally 50-100 mm thickness, insulation can be used rockwool, glasswool, polyurethane foam, aluminum silicate. The cladding can be used 1.8-2mm thick white (RAL9003) glass reinforced plastic, 1.2mm cold carbon steel, 1.00mm stainless steel sub-mirror or matter board.
d.At the end or side of tank, It can be installed 1-3 self-flow valve.
e. Inlet and outlet type depends on customers desire by following europe standard or normal.

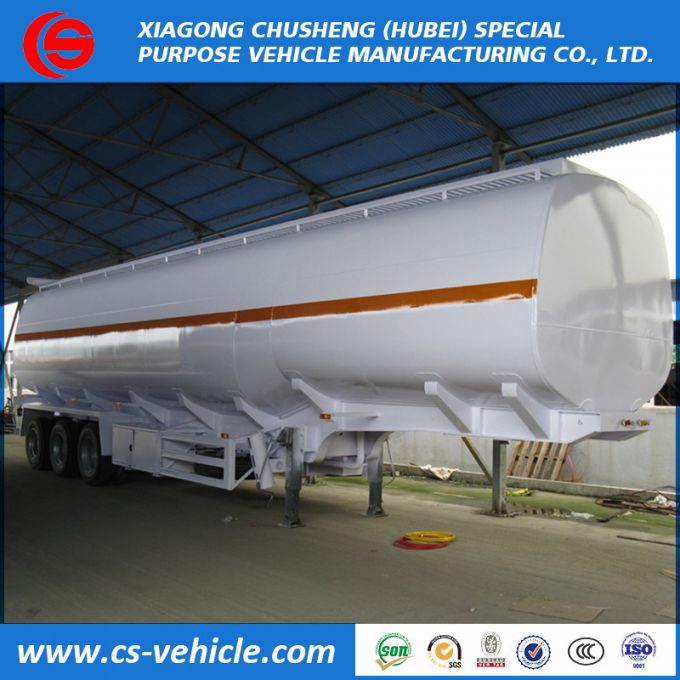

The pictures of3 axle 40000L-50000L water tanker trailer, water transport tank semi trailer for sale.3 Axle 40000L-50000L Water Transport Tank Semi Trailer for Sale
Parameters of3 axle 40000L-50000L water tanker trailer, water transporttank semi trailer for sale
Main Dimensions
Overall Length 11800mm
Overall Height 3600mm
Tare Weight 12500KGS
Loading Capacity 42 m3
Photo only for reference, final product can be made according to exact requirements
Tank Body
ShapeMono block Cylinder
Total Volume(m3)4242CBM
Tanker Body Material5mm steel / Q235 high tensile strength steel or high quality stainless steel
End plate6mm steel sheet/Q235 high tensile strength steel high quality stainless steel
Manhole coverAPI manhole cover,
Discharging valve3 set discharging valves
Discharging Pipe4"rubber hose, 2 pcs, 6m long
Chassis
Main BeamsSpecial design I beam, connected by bolts and nuts with tanker body, removable from tanker body for separate transportation;
Axle3 axles
FUWA 13 Ton, BPW, FUWA, L1 for optional.
Landing GearJOST brand Two-speed, manual operating, heavy duty landing gear
King PinJOST brand 2" bolt-in king pin
Suspensionheavy duty mechanical suspension
Pneumatic Braking SystemWABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.
Wheel rim8.25R22.5 wheel rim, 13 pieces
Tire11R22.5 tubeless tire with one spare tire, 13 pieces
PaintingComplete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
AccessoriesOne standard tool box

Company information:

1.Xiagong Chusheng (Hubei) Special-purpose Vehicle Manufacturing Co., Ltd. is afamous and the biggest manufacturer with very professional experience in special automobile field for more than 15 years in China. We have more than 3000 workers, 400 technicians, and factory scale is more than 690,000m2.

2.Our most advantage and leading products including LPG tanker series, Water Tank, Fuel tank, Refrigerated Truck, Garbage Truck, Towing/Wrecker truck, Dump Truck, Sewage Suction Truck, Concrete Mixer Truck, Bulk Cement Truck, Van truck, Sweeper Truck, Truck with Crane, Fire Fighting Truck, High-altitude Operation Truck, Chemical Liquid Truck, Milk Transport Truck, LED Display Truck, Various Semi-trailer, Spare parts etc.

3.We have successfully exported to more than 60 countries, such as Ghana, Togo, Sudan, Kuwait, Peru, Nigeria, Benin, Angola, Tajikstan, Azerbaijan, Namibia, Burma, Korea, Iran, Afghanistan, Iraq, Philippines, Vietnam, Saudi Arabia, Mexico, Chile, Bolivia, Tanzania, Zambia, Zimbabwe, Yemen etc.

We have strict quality control of raw material, professional management team and technical workers, advanced equipments, strict inspection before delivery, excellent packing and shipping team.

The factory view:
3 Axle 40000L-50000L Water Transport Tank Semi Trailer for Sale

3 Axle 40000L-50000L Water Transport Tank Semi Trailer for Sale
Our product:
3 Axle 40000L-50000L Water Transport Tank Semi Trailer for Sale
3 Axle 40000L-50000L Water Transport Tank Semi Trailer for Sale
For more products information, please contact:Helen JiangSales DirectorXiagong Chusheng (Hubei) Special Purpose Vehicle Manufacturing Co., Ltd.
Factory: NO.9, Jiliang Avenue, Suizhou Economic Development Zone,Suizhou, Hubei, China
Office: Room 1108, Eurasia Plaza, No.20 Jinyinhu Road, East- west lake District, Wuhan, Hubei, China.
Tel: +86-27-59215038;Fax: +86-27-59215082
Mob: +86 135 5419 5719
Web: www.cs-vehicle.com
