40FT Container 2 Axle Flat Bed Semi Trailer
- Price can be negotiated
- 1 Unit
- 37 Unit
- 16 days
Product Description

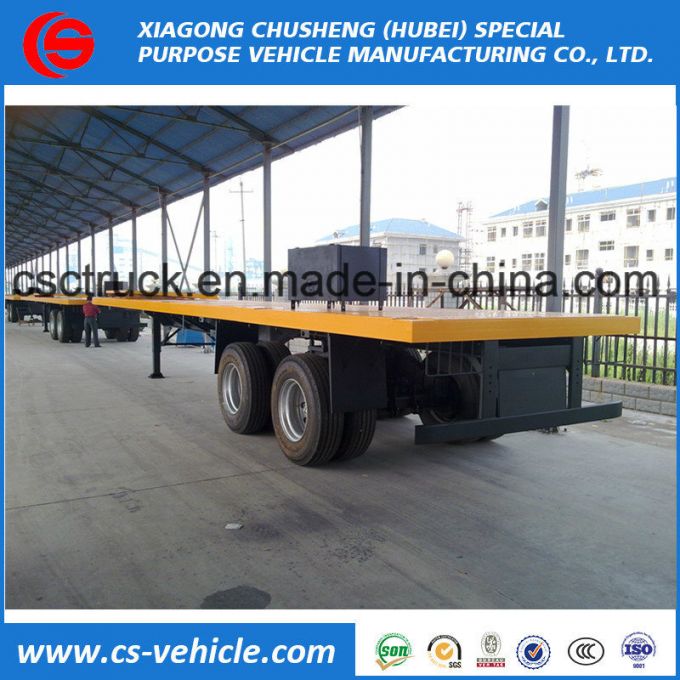

40ft container 2 axle flatbed semi trailer
| DIMENSIONS | ||
| Tare Weight | 6600kg | |
| Overall Length | 12400mm | |
| Overall Width | 2480mm | |
| Payload | 30000kg | |
| SPECIFICATIONS | ||
| I Beam & Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm,Height 500mm, Bottom Flange 16mm,width 140mm. | |
| Axle | 2 axles | |
| L1 brand13 ton | ||
| Suspension | Heavy Duty Mechanical Suspension | |
| Floor | 3mm checker plate | |
| Leaf Spring | 10 piece Leaf spring | |
| King Pin | JOST brand 3.5" Bolt-in King Pin | |
| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | |
| Wheel Rim | 8.25-22.5 wheel rim 9 pieces | |
| Tire | Triangle brand 11R22.5 tire with one spare tire. 9 pieces | |
| Twist Lock | 12 nos. of ISO twist lock for 1x20ft, 2x20ft; 1x40ft container, the retractable central locks can be laid down. | |
| Spare Tire | One set of spare tire including a carrier | |
| Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 40L air tanks | |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | |
| Accessories | One standard tool box | |
