FAW Chassis 5cbm Capacity Tankers for Gas Stations

Basic Info Model NO. QLG5070GJYC5 Seats ≤5 Horsepower ＜150hp Storage Oil Tire Certification ISO Condition New Usage for Fuel Transportation and Charging Rated Payload 3405 Kg Tare Weight 3760kg Overall Dimension 5990mm*2050mm*2500mm Axle Number 2 Tire 7.00r16 7.50r16 Braking System with ABS System(36bg13-30010) Electrical System 24 Voltage, 7 Wire Harness. Painting with Shot Blasting and 4 Layers Painting. Trademark QI LIN Transport Package Nude, Polish with Wax Before Shipment. Specification 5.1 CBM capacity Origin Hebei, China Product Description Customer Question & Answer Ask something for more details (0)

PRODUCT DETAILS

FAW 4X2 Fuel Tanker Truck
Chassis specification
Chassis brand	FAW/DonGFENG /FOTON/DAYUN/ optional
Chassis number	CA1077P40K50L1BE5A84
Drive form	LHD or RHD optional
Emission standard	Euro 2/3/4/5 optional
Cab type	Single row cab ,3 passengers
Leaf spring number	3/4+3
Tyre number	6
Tyre type	7.00R16 7.50R16
Tread	Front:1510mm Rear :1475mm
Rear axle speed ratio	5.571
Drive model	4×2
Wheelbase	3300mm
Overall dimension	5990mm×2050mm×2500mm
Front/rear suspension	1150mm/1540mm
Rated payload	3405kg
Tare weight	3760kg
Max speed	80km/h
Tanker capacity	5.1 CBM
Gear box
Gear box brand	WLY
Number of gear	5
Engine
Engine brand	Chinese engine
Max output powder	80kw
Max horsepowder	110hp
Displacement	2.545L
Fuel type	Diesel
Rated speed	3200rpm
Tanker
Tanker material	Carbon steel
Tanker capacity	5.1CBM

Braking system	Air brake
Electrical system	24 voltage,7 wire harness,LED lights.
Painting	With shot blasting and 4 layers painting,color is optional.
Packing	Nude,polish with wax before shipment.
Remark	The above mentioned data is for your reference only. The detailed specification will be subject to our final /confirm/iation.
1.Price is valid within 10 days.
2.Payment terms:by T/T 30% as deposit,70% balance before shipment.
3.Delivery time:within 40 days after received deposit.

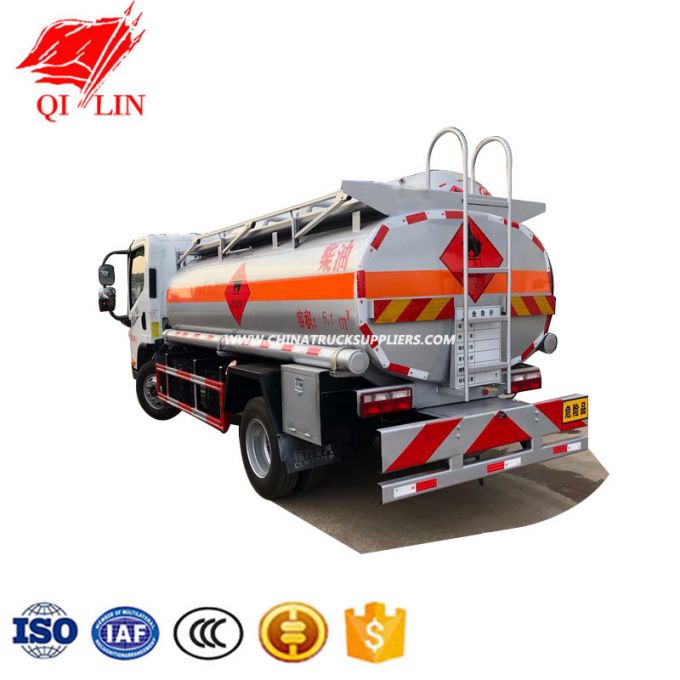

REFERENCE PICTURE













COMPANY INTRODUCTION
1.Hebei Huaqi Special Purpose Vehicle Manufacturing Co., Ltd. was established in 1956,with more than 60 years trailer making experiences.
2.We have more than 300 employees,including 24 technical engineers,18 senior engineers .
3.We are one of the largest manufacturers in China,we have passed ISO9001:2008,CCC National Compulsory Certificate.
4. "Qi Lin" Brand is afamous brand in Hebei province ,China.



WELCOME TO OUR FACTORY!
1.We can pick up you in the airport port;
2.Book the hotel for you;
3.Show youaround the workshop and production line;
4. We can supply the truck parts;
5. We can supply the stock trucks if you need the trucks urgently.


OUR HONOR




PACKING &SHIPPING

1.Nude,polish with water wax before shipment.
2.40HQ ,Ro-Ro ship andbulkshiptransport.



OUR SERVICS
1.Our engineer will go to your side when the tanker truck goes something wrong.
2.Any parts of thetanker truckwill be send to you as soon as possible.
3.Technology consulting are appreciated all the time.

FAQ
1. Can Ihave samples of this type of trailer to test the quality?
Yes, you can buy any sample to test the quality,our MOQ is1 unit.

2. What's the delivery time and can you lower the price?
It depends on your order. The delivery time is within 15 workdays after we received your prepayment.If you have place an order of large quantities, then ,of course, the price can be lowered.

3. Can you supply some quick-wear trailer parts?
Yes, we can supplythe trailer parts as your request,such as traction, traction pin, balance beam and semi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads, brake pan, bearings, etc

4. What's the payment method?
TT 30% asdeposit,balancebefore shipment by TT or L/C at sight.

5.Do you have any used trailer for sale?
We have many trailers in stock for choices, from 2012-2016 year, the price are favorable,we'll show you our stock trailer if you need.

6. How to guarantee customers get the goods smoothly after they pay?
Don't worry, dear.We joined the trade assurance,you can place the order by trade assurance,if we don't delivery products, the deposit will be returned to you.

7. How can you ensure the quality of the products?
Don't worry, dear.We joined the trade assurance,ifthe products have quality problem when you received the goods, youcan get theadvance payments.

ConTACT US


TEL/FAX: 0086-319-2815112
MOB: 0086-13315937358
WEB:www.chinaqilinauto.com
ADD:East ofHuolou Village,HuiningTown,XingtaiCounty,XingtaiCity, HebeiProvince,China.
