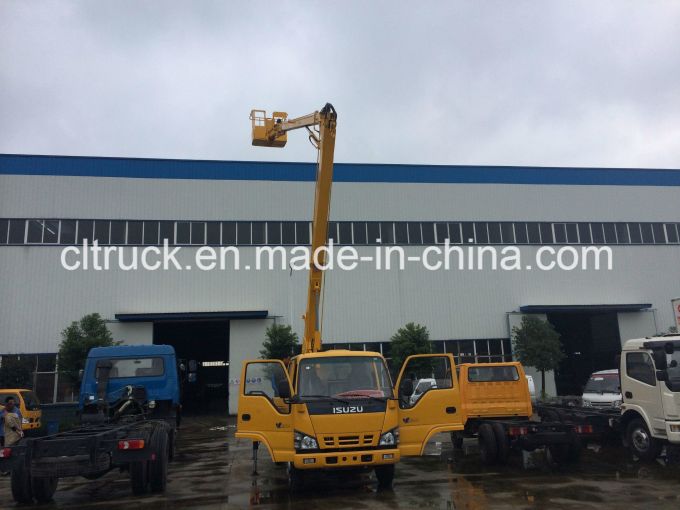

Isuzu 4*2 High Aerial Platform Working Truck for Sale

ISUZU High operation truck and high altitude working truck

Product Description
China Exported high altitude operation truck aerial high lifting truck 10m 12m 14m 16m high platform truck
1.high platform working height 16M
2 loading capacity 200KG
3. rotate 360 degree
4.Hook is optional
5. Key parts are imported

Sale Manager: Albert Du
Mobile:0086-18660874450;0086-18660874450

Technique Parameters

Description	ISUZU High-altitude Working Truck
Drive Model	4X2
Chassis	QL10508
Number of axles	2
Vehicle Main Dimensions	Dimensions(L xW xH)(mm)	7400×1980×3100
	Wheel base (mm)	3360
	Overhang (front/rear) (mm)	1015/2180
	Wheel track (front/rear) (mm)	1385/1425
	Approach/Departure angle(°)	24/12
Weight in KGS	Curb Weight	4975
	GVW.	5300
Max. driving speed(km/h)		95
Engine	Model	4JB1-TC1
	Type	4-stroke direct injection ,4-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)	95HP
	engine capacity(ml)	2771
	Emission standard	Euro III
Gearbox	5 forwards &1 reverse
Clutch	Reinforced diaphragm clutch
Steering Gear	Power steering, hydraulic steering with power assistance
Fuel tank (L)	180
Tire	7.00-15tire ,6 +1(spare)
Brakes	dual circuit compressed air brake
Allowable passengers in cab:	5
Working platform
Material	Q235 Carbon steel
working platform dimension	1100*570*1000mm
Maximum operation height	16M
Maximum operation radius	7M
Max lifting weight	800kg
hydraulic system pressure	<=16MPa
working platform rating allowable passengers	2
Max load capacity of the square platform	250Kg
Electric system	24V
Other	Max operation height>=16m Max operation radius>=7m Max working platform height>=14.5m 360°turning(left or right),4 H-shape legs. 1.5 ton crane Insulating material in the cage The cage can be operated both in the air and on the earth

Chassis dimension	7400×1980×3100mm
working platform	working platform dimension	1100×570×1000mm
	The maximum height from the ground	14300mm
	Max Operating Radius	6920mm
leg	lateral span	2680mm
	longitudinal span	2730mm
Max lifting height	6300mm
