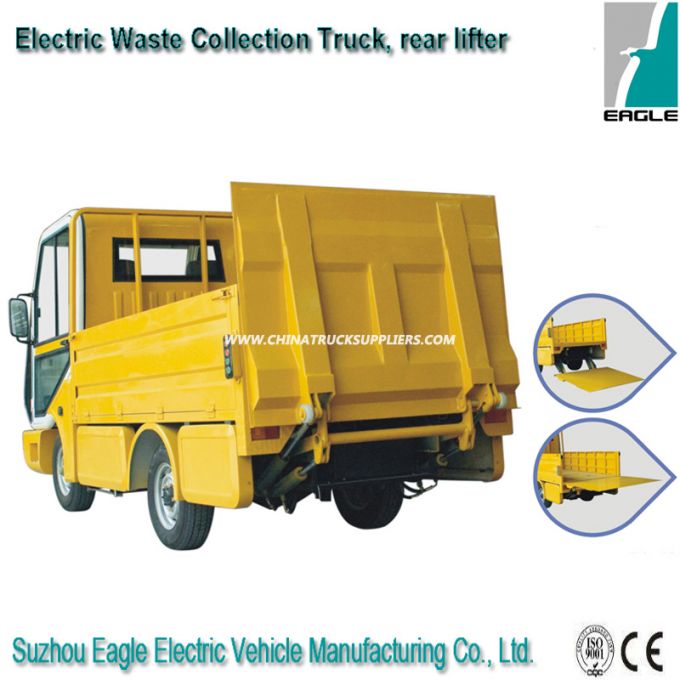

Hot Sale Electric Garbage Truck

C is Suzhou Eagle new developped electric Garbage Truck (developped in 2011).It's built based Suzhou Eagle's new electric truck (EG6032H).They shares the same chassis and other main components.Due to its characteristics of no pullution, no noise and low use cost, this electric garbage truck can be widely used in closed area like community, hotel, resort, garden, park, airport, bus station, train station, etc.For collecting and transporting garbage bin or garbage barrel.

Battery	Deep cycle, lead acid battery, Trojan brand, imported
Motor Power	5KW DC
Controller	Curtis brand, Series excited, imported
Passenger capacity	2
Range (loaded) based on flat road at aspeed of 20km/h (km)	> 55
Max.Speed(km/h)	40
Minimum turning radius (m)	5.3
Max.Climbing ability	20%
Max.Loading weight	1500kgs
Overall dimensions (mm)	4730x1500X2100
Cargo bed dimensions (mm)	3000x1500X550
Body and frame
frame	Welded steel framework with sand blasting+paint treatment
Body	FRP body
Roof	FRP body
Cabin	Aluminum frame +glass door
Windshield	Laminated glass
Large Seats:	With backrest and headrest, sliding
Floor	Anti-sliding ruber floor mat
Battery sliding system
Side rear view mirror
Electric system
Lighting system and horn	2 combined front lights(headlight, turning light, position light), 2front foglight, 2taillight(turn signals and brake lights), with DC-DC converter (converting from 48V to 12V), horn.
Dashboard meter	Voltameter, ammeter, odometer, emergency switch;Combined switch, meter indicator
Audio System	Radio and MP3 adaptor, with 2speakers
Wiper	12V, 50W, single arm
Charger	Input 110V-240V~50Hz-60Hz, output 48V, 25A
Steering and Suspension
Steering system	Recirculating ball steering gear+ steering wheel
Brake system	Four wheel hydraulic drum brake+ parking brake
Brake assistant	Vaccum pump assistant
Transmission system	Clutch, gear box, transimmison shaft
Front Suspension system	Plate spring +hydraulic shock absorber
Rear Suspension system	Integrated rear end, rear plate spring +hydrualic shock absorber
Wheel &Tyre	185R14C tubeless tire, 14*5.5 Jsteel rim
Color
Body Color	4 standard color:Pearl white/industrial yellow/pearl red/saffron yellow
Seat Color	White and Tan
Others
Provides various options like:Heater, seatbelt, EPS, etc...
