Electric Utility Cart, with Hydraulic Lifted Cargo Box, Eg2048zt2

  • Electric Utility Cart, with Hydraulic Lifted Cargo Box, Eg2048zt2
  • USD 5000.80 /Unit
  • 1 Unit
  • 24 Unit
  • 21 days
Product Description

Company History
Founded in 1999, Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd.Is aleading manufacturer specializing in designing and manufacturing 4-wheel electric vehicles.Our company has aworkshop area of 30,000 square meters and 400 workers.Our current daily production capacity is 100units per day, this can be adjusted with the order volume increasing.
Our company has gotten the unique production license for electric vehicle by the Supervision Bureau of Quality and Technology of China.In 2003, we were approved by ISO9001.In 2006, we were approved by WMI quality system to get our own VIN.

With effective management and specialized talents, our company is dedicated to offering top quality products with competitive price and first class after-sales service.

Why EV?
There should be at least three reasons for EV:
Firstly, decrease pollution!EV as azero-emission-car can help improve the environment alot;
Secondly, decrease the cost!Though the initial buy cost of EV is higher than gasoline car, the maintenance cost of EV will be extremely lower than gasoline car.based on calculation, for a48V EV, it only consumes 2KWH electricity per 100kms.Cost is much lower than gasoline car.
Thirdly, energy independent!For acountry that is lack of oil source, it should find away to make it independent from oil.Water resource, sun resource and wind resource are potential alternative resource;The problem is to find amedium to storage the energy.Then battery will be the best choice at this moment.

Key Components

Item
Description
ControllerCurtis controller, 400A, imported from USA directly
Motor
Rated 4KW-5KW (5.44HP-6.8HP), ADC brand or Chinese brand
Both DC motor and AC motor are available

Battery
Trojan battery, T105+, imported from USA directly
Charger
High Frequency onboard charger
(input 90V-265V, 47-63HZ, output 48V/22A)


Performance

Item
Description
Passenger Capacity2

Range (loaded) (km)*

Up to 90
Max.Speed (km/h)Up to 40
Min.Turning radius (m)4.5
Max.Climbing ability(loaded)Up to 20%
Max.Movement after brake at speed of 20km/h≤4m
Max.Loading weight (kgs)450
Charging time (hour)8-10
Battery lifespan (cycles)750

* 1) based on the test conditions:20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2)Range will vary depending on temperature, grade, payload and driving style.

Dimensions

Item
Description
Overall dimensions (mm)3180x1180x1890 (LxWxH)
Rear cargo bed dimensions (mm)1400x1100x250 (LxWxH)
Min.Ground clearance (mm)120
Wheelbase (mm)2450
Front wheel tread (mm)855
Rear wheel tread (mm)975


Body and frame

Item
Description
frame &ChassisWelded steel framework with phosphate+electro-coating treatment
BodyPP plastic front and rear body cover, injected
RoofInjected plastic
WindshieldOne-piece organic glass (PMMA)
Roof supportsCarbon steel, powder coated, black
CushionReborn sponge with artificial leather and plastic bottom cover
BackrestReborn sponge with artificial leather and plastic cover
ArmrestFormed
Floor matSkidproof rubber
DashboardBlack plastic, with F/R switch, battery power indicator, ignition key on it
Beverage holders4 cups holders, 2big and 2small
Side trimExtruded aluminum
Rear cargo bedSTS frame with diamond aluminum fenders and bottom board, with hydraulic lifted function
Score card holderOn the steering wheel



Electric System

Item
Description
Lights
12V, headlight, front turning light, taillight (brake light and rear turing light)

Horn
Electric horn, 12V
Reverse buzzerElectric, 12V
Combination switch
DC/DC converter
48V/12V



Steering &suspersion

Item
Description
Steering System
Single-stage rack and pinion steering system,
With automatic compensation function

Brake System
Rear wheel mechanical brake with foot park brake
AcceleratorResistance type, stepless speed change
Front suspensionCylinder hydraulic shock absorber and leaf spring
Rear suspensionCylinder hydraulic shock absorber and leaf spring
Driving modelRear axle two stage deceleration, motor direct driving
Rear axleAluminum differential cage, integrated, 12.76:1 gear ratio
Wheel &Tyre10x6 Alumimum wheel &205/50-10 4PR
Product Images

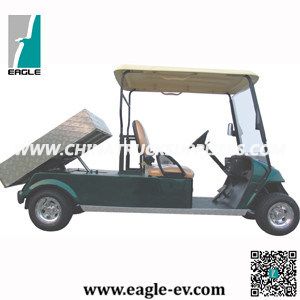

Electric Utility Cart, with Hydraulic Lifted Cargo Box, Eg2048zt2 Images 1
