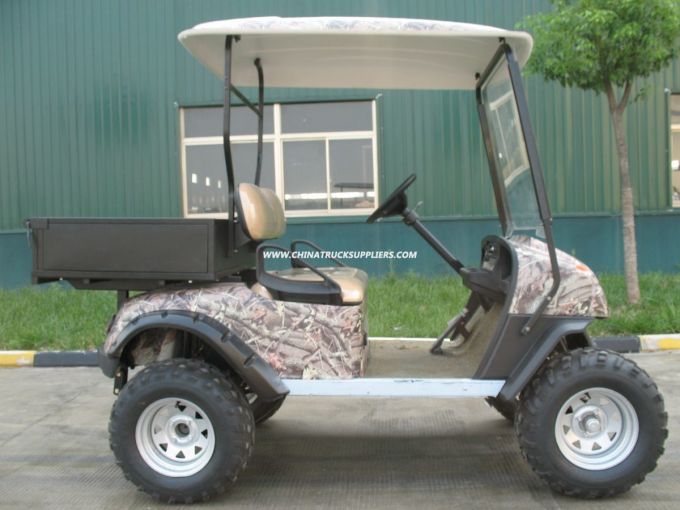

Two Seats Electric Hunting Buggy with Cargo Box

Performance

Passenger capacity 2
Range (loaded) based on flat road at aspeed of 20km/h (km)* >80
Max.Speed @12.76:1 gear ratio 32
Max.Speed @10.26:1 gear ratio 40
Minimum turning radius (m) 3.5
Max.Climbing ability (loaded)@ 12.76:1 gear ratio 20%
Max.Climbing ability (loaded)@ 10.26:1 gear ratio 15%
Max.Movement after brake at speed of 20km/h ≤4m
Max.Loading weight 370kgs
Net weight580kgs

Dimensions

Overall dimensions (mm) 2950x1340x1990mm
Cargo Box Dimension(mm) 770x1100X250
Min.Ground clearance (mm) 120
Wheelbase (mm) 1700
Front wheel tread (mm) 855
Rear wheel tread (mm) 975

Body and frame

frame Welded steel framework with phosphate+electro-coating treatment
Body PP plastic front body +PP plastic rear body
Roof Injected plastic
Windshield one-piece Organic glass


Optons


1.Laminated windshield with wiper
2.Stainless steel package
3.Aluminum roof support
4.2 point seat belt
5.Formed seat backrest vinyl
6.Backrest cover in wood finish
7.Dashboard in wood finish
8.Steering wheel in wood finish
9.Glove box door (include two locks) in black plastic
10.Glove box door (include two locks) in wood finish (inside and outside)
11.Inner rear view mirror
12.Side rear view mirror
13.Battery watering system ,48V &36V system
14.Manual Pump
15.Enclosure
16.Meter(only available for 48V system)
17.Police Light
18.12V accessory plug
19.Hour meter
20.Solar Panel
21.On board charger
22.Right hand drive system(NO extra cost)
23.4-wheel hydraulic brake +hand brake
24.4-wheel hydraulic brake, front disc brake, rear drum brake
25.Rear axle:Integrated, Gear ratio 10.26:1
26.Customized color is available, but extra cost should be paid
