/XCMG Official Manufacturer Yt32 Multi-Purpose Aerial Ladder Fire Truck
- USD 1.10 /Unit
- 1 Unit
- 26 Unit
- 9 days
Product Description

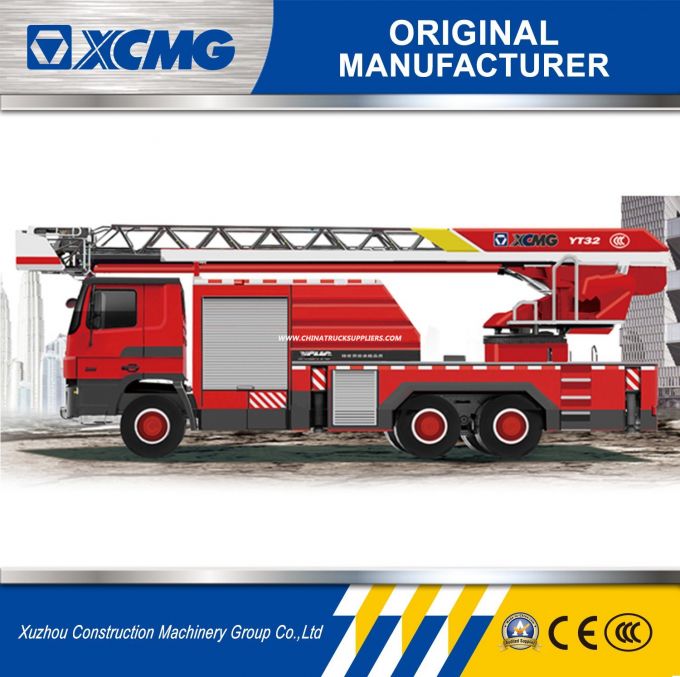

XCMG official manufacturer YT32 Multi-purpose Aerial Ladder Fire Truck
[Product Description]
YT32 Aerial Ladder Fire Truck is a first-attack vehicle for urb an fire-fighting application, which integrates aerial rescue and fire-fighting function. A number of key technologies such as the parametric d esign calculation and manufacturing technology of aerial ladder, the technology about controlling turntable leveling, operating curves of multi-working condition and independent platform leveling, as w ell as the technology for telescoping the l adder by double helix twin twist winch are broken through. It has features of maneuverability, s trong adaptability to job site, fast rescue speed and high technology safety, etc. It is widely used in applications for fire-fighting on medium o r high-rise buildings and rescue in town, mine, oil field and plant, etc. I t is a necessary unit for putting out fire on medium or high-rise buildings, rescuing personnel in distress and property.
1. Powerful rescue capacity, various rescue modes
Well equipped fire-fighting system with powerful water pump and monitor integrated, and a tank with capacity holding water of 2.5 t and foam of 2 t contribute to powerful rescue capacity. Max. flow designed is 5 0L/s. Fire-fighting operation could be carried out from platform or a erial ladder. An independent quick-coupled work platform is available. Two working modes, i.e. with and without platform are designed. Seven operating curves are designed according to various loads, which will greatly improve rescue capacity. When there is no a platform fitted: bridging operation is available. It has strong rescue capacity, because max . working radius is 30 m, and the number of persons rescued one time is up to 12. Aerial fire-fighting operation may be realized by installing the water monitor on the aerial ladder. When there is a platform fitted: platform rescue is available. Working range is determined according to the load on the platform, so rescue cap acity is improved effectively. Fire-fighting operation may be realized by installing the water monitor on the platform.
2. More comprehensive security protection, more personalized
22 safety protection devices are integrated, safe and efficient. The first-ever double helix twin twist winch mechanism in China, three sets of aerial ladder extreme position limit, and advanced ladder rung alignment function supply all-round guarantee to the personal safety of staff. The platform may be rotated 90 ° from operation configuration to transportation configuration, consequently driver's field of vision is widened and travel safety is improved.
3. Maneuverability, strong adaptability to job site
With advanced turntable leveling control technology adopted, ma x. leveling capacity is more than 7 ° by coordinating with chassis outrigger leveling. Total vehicle length is 11.3 m and height is 3.85 m. GVW is 28.8 t an d power mass ratio is up to 11.0, taking the lead in the world.
4. Superior pump system on platform
There is an independent pump system on the platform. It is driven by a motor, and w ill actuate le veling c ylinder for leveling the p latform. Elect ricity i s transmitted to the platform from chassis, thus, the safety problem that is liable to occur when pressurized oil is transmitted within the confined space of aerial ladder is solved effectively.
[Company Information]
XCMG was born in 1943 as an arsenal workshop during the War Against Japanese Aggression and has a history of 72 years.The group was incorporated in 1989, and has kept its leading position in Chines construction machinery industry for 26 years.If you want know more about us, you can also visit our web site: http://www.xcmg.com/en-mena/.
According to KHL's Yellow Table, XCMG ranks No.8 in the world construction machinery industry in 2014.According to the rank of Top50 Summit of World Construction Machinery Industry, XCMG ranks No.5 in the world.
At present, XCMG is a large state-owned international corporation with the most complete range of products and over 30,000 employees operating in China, America, Germany, Netherlands, Poland, India, Brazil and Uzbekistan.
The goal of XCMG is to become a leading world-class enterprise with great value creativity.
[Product Description]
YT32 Aerial Ladder Fire Truck is a first-attack vehicle for urb an fire-fighting application, which integrates aerial rescue and fire-fighting function. A number of key technologies such as the parametric d esign calculation and manufacturing technology of aerial ladder, the technology about controlling turntable leveling, operating curves of multi-working condition and independent platform leveling, as w ell as the technology for telescoping the l adder by double helix twin twist winch are broken through. It has features of maneuverability, s trong adaptability to job site, fast rescue speed and high technology safety, etc. It is widely used in applications for fire-fighting on medium o r high-rise buildings and rescue in town, mine, oil field and plant, etc. I t is a necessary unit for putting out fire on medium or high-rise buildings, rescuing personnel in distress and property.
1. Powerful rescue capacity, various rescue modes
Well equipped fire-fighting system with powerful water pump and monitor integrated, and a tank with capacity holding water of 2.5 t and foam of 2 t contribute to powerful rescue capacity. Max. flow designed is 5 0L/s. Fire-fighting operation could be carried out from platform or a erial ladder. An independent quick-coupled work platform is available. Two working modes, i.e. with and without platform are designed. Seven operating curves are designed according to various loads, which will greatly improve rescue capacity. When there is no a platform fitted: bridging operation is available. It has strong rescue capacity, because max . working radius is 30 m, and the number of persons rescued one time is up to 12. Aerial fire-fighting operation may be realized by installing the water monitor on the aerial ladder. When there is a platform fitted: platform rescue is available. Working range is determined according to the load on the platform, so rescue cap acity is improved effectively. Fire-fighting operation may be realized by installing the water monitor on the platform.
2. More comprehensive security protection, more personalized
22 safety protection devices are integrated, safe and efficient. The first-ever double helix twin twist winch mechanism in China, three sets of aerial ladder extreme position limit, and advanced ladder rung alignment function supply all-round guarantee to the personal safety of staff. The platform may be rotated 90 ° from operation configuration to transportation configuration, consequently driver's field of vision is widened and travel safety is improved.
3. Maneuverability, strong adaptability to job site
With advanced turntable leveling control technology adopted, ma x. leveling capacity is more than 7 ° by coordinating with chassis outrigger leveling. Total vehicle length is 11.3 m and height is 3.85 m. GVW is 28.8 t an d power mass ratio is up to 11.0, taking the lead in the world.
4. Superior pump system on platform
There is an independent pump system on the platform. It is driven by a motor, and w ill actuate le veling c ylinder for leveling the p latform. Elect ricity i s transmitted to the platform from chassis, thus, the safety problem that is liable to occur when pressurized oil is transmitted within the confined space of aerial ladder is solved effectively.
[Company Information]
XCMG was born in 1943 as an arsenal workshop during the War Against Japanese Aggression and has a history of 72 years.The group was incorporated in 1989, and has kept its leading position in Chines construction machinery industry for 26 years.If you want know more about us, you can also visit our web site: http://www.xcmg.com/en-mena/.
According to KHL's Yellow Table, XCMG ranks No.8 in the world construction machinery industry in 2014.According to the rank of Top50 Summit of World Construction Machinery Industry, XCMG ranks No.5 in the world.
At present, XCMG is a large state-owned international corporation with the most complete range of products and over 30,000 employees operating in China, America, Germany, Netherlands, Poland, India, Brazil and Uzbekistan.
The goal of XCMG is to become a leading world-class enterprise with great value creativity.
