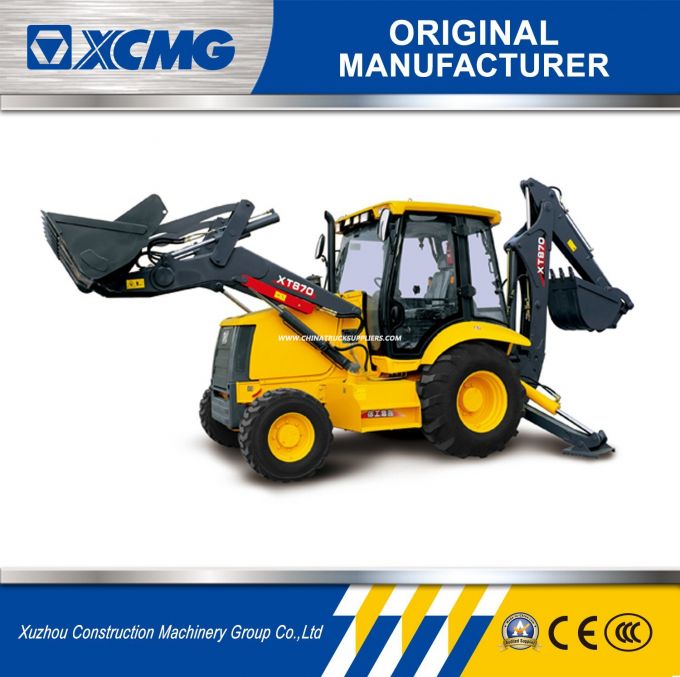

XCMG Official Original Manufacturer Xt870 New Backhoe Loader Price

Our company will offer you the high quality products with a low price, quick delivery,and professional after-sale service.
XCMG Official Xt870\WZ30-25\XT870H Backhoe Loader(more model for sales)

XT870
Rated Power:
70kW 94HP @2,200rpm
Operating Weight:
7,800kg 17,196lb
Bucket capacity:
1.0m3 1.3yd3
Max. Digging Depth:
4,400mm 14'5''
Dimensions(L×W×H):
7,173mmX2,400mmX3,437mm
23'7''X7'11''X11'3''


XT870
Excavating Loader XT870 is a kind of multifunctional construction machinery with following advantages: reasonable and compact layout, beautiful shape, comfortable and convenient operation, small turning radius, good work capability, and higher cost performance. It is widely used in municipal administration,
construction, oil field, water conservancy, forestry, military engineering, and other project construction. Also it can work on excavating,shovel loading, carrying, leveling and so on, which makes flexible and efficient operation on exclusions of waste dumps and industrial waste in largeand medium-side enterprises. It is a perfect machine to do variable works.
imported components such as boxes, bridges and hydraulic system improve the reliability of the machine.
High driving speed and small turning radius intergrated frame improves operatiing and driving stability. Steering priority hydraulic system with single-pump oil makes
system pressure reach 21Mpa, which improves the reliability of the machine.
The maximum speed is 40km / h, increasing machine productivity.
The cab have a good range of vision, with functions of sound insulation, heat insulation and shock absorption, improving the comfortablity of operating environment.
Operators can change the shift at work. Loading hopper is controled by the single swinging boom while excavating hopper by the double swinging booms. We focus on its excavating operation, so it has significantly improved the stability of the excavation in its structual design.

Description	Specifcations		Unit
Working weight	7800		kg
Overall dimensions(LxWxH)	7173x2400x3437		mm
Max.travel speed	40		Km/h
Wheel base	2180		Mm
Tuming radius	3780		Mm
Tires(F/R)	()14-17.5/()19.5L-24
Engine	Rated power	70	82	Kw
	Rated speed	2200	2200	r/min
	Model	TD226B-4IG2	CumminsQSB4.5
	Modality	,,	,,
	Overall displacement	4.156	4.5	L
	Adopt to efficient hydraulic system	230	235	g/kw.h
Loading installment	Bucket capacity(heaped)	1.0		m³
	Dumping clearance	2825		mm
	Dumping reach	727		mm
	Break-out force	42		KN
Excavation installment	Digger capcity	0.3		M³
	Max.digging depth	4000		mm
	Max.digging radium	5400		mm
Four in bucket and hydraulic hammer can be configured according to user needs

Company profile
XCMG is aconstruction machinery manufacturer with over 70 years of experience. Over the years, we have grown to become the world's most comprehensive construction machinery manufacturer and influential multinational company. In 2015, we rank No.1 in China and No. 5in global heavy equipment industry.XCMG's construction machinery covers an astonishing range of equipment, including cranes, earth-movingmachinery, road machinery, excavators, concrete machinery, mining machinery, piling machinery, lumber machinery, fire-fighting machinery, heavy trucks, sanitation machinery, agricultural machinery, and more. We have the world's most comprehensive product line, and offer customers complete solutions for construction equipment.Our other businesses include finance, leasing, and remanufacturing.

At present, the power of my company's straight-arm crane is entirely from the hydraulic oil pressure, that is, through the high-pressure hydraulic oil to promote the cylinder piston reciprocating motion, or drive the hydraulic motor rotation makes the hydraulic winch and rotary mechanism rotation.

So, how do high-pressure hydraulic oil get? Each truck crane is equipped with ahydraulic pump when the vehicle chassis is matched, and the engine provides power for it. The chemical energy of the fuel can be converted into the crankshaft of the engine to rotate the mechanical energy, and then the gearbox gear is rotated, and then the power is transmitted to the hydraulic pump through the power transmission of the gearbox. Therefore, the hydraulic pump can continuously pressurize the hydraulic oil For the high-pressure hydraulic oil, so as to provide power for the crane to achieve the lifting of the goods.

Competitive Advantage
My company's straight arm crane crane covers 1-25 tons 14 models 65 kinds of products, to meet avariety of conditions, with the longest arm of the largest tonnage crane mature manufacturing technology, scientific research and development process, advanced Research and development technology, and constantly have new products to market, to meet customer use.
My company's boom arm section with mature pentagonal, hexagonal and octagonal, the latest generation of products with U-shaped arc arm body weight reduction, arm width of alarge deflection, stability and resistance to deformation Ability to improve, significantly enhance the lifting capacity.
The application of the sub-arm, sub-winch and vice-hook provides abasis for the rapid and large-scale operation of the crane light load and the high-altitude operation. The application of automatic hook technology saves time and effort when starting and ending crane operations, making it easy to operate easily.
Ourcompanywillofferyouthehighqualityproductswithalowprice,quickdelivery,andprofessionalafter-saleservice.
FAQ
1: What kind terms ofpaymentcan be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: Whatcertificatesare available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about thedelivery time?
A: 30 days after receiving the deposit.
4: What about thewarranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about theMinimum Order Quantity?
A: The MOQ is 1 pcs
