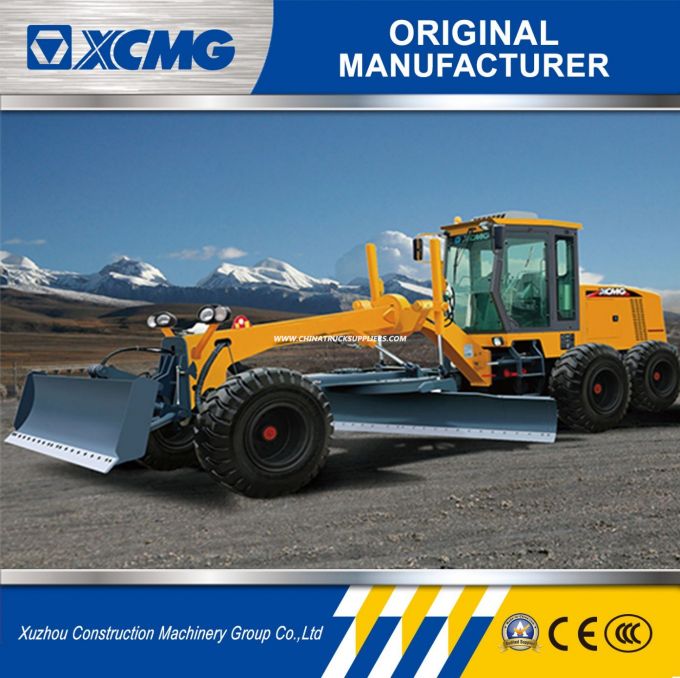

XCMG Original Manufacturer Gr190 Mini Motor Graders

XCMG original manufacturer GR190 mini motor graders

Basic specificationPerformance specificationOperating specification

Engine model	6CTAA8.3 D6114
Rated power/speed	138kW/2200 140kW/2300rpm
Dimension(LxWxH)	8900×2625×3470mm
Operating weight(Standard)	15400kg
Travelling speed ,forward	5,8,11,19,23,38 km/h
Travelling speed ,reverse	5,11,23 km/h
Tractive force(f=0.75)	79KN
Max. gradeability	20%
Tire inflation pressure	260 kPa
Working hydraulic pressure	16 MPa
Transmission pressure	1.3~1.8MPa
Max. steering angle of front wheels	±50°
Max. lean angle of front wheels	±17°
Max. oscillation angle of front axle	±15°
Max. oscillation angle of balance box	15
frame articulation angle	±27°
Min. turning radius using articulation	7.3m
Biade
Maximum lift above ground	450mm
Maximum depth of cutting	500mm
Maximum blade position angle	90°
Blade cutting angle	28°-70°
Circle reversing rotation	360°
Moldboard width X height	3965×610mm

[Company Information]
XCMG was born in 1943 as an arsenal workshop during the War Against Japanese Aggression and has a history of 72 years.The group was incorporated in 1989, and has kept its leading position in Chines construction machinery industry for 26 years.If you want know more about us, you can also visit our web site: http://www.xcmg.com/en-mena/.

According to KHL's Yellow Table, XCMG ranks No.8 in the world construction machinery industry in 2014.According to the rank of Top50 Summit of World Construction Machinery Industry, XCMG ranks No.5 in the world.

At present, XCMG is a large state-owned international corporation with the most complete range of products and over 30,000 employees operating in China, America, Germany, Netherlands, Poland, India, Brazil and Uzbekistan.

The goal of XCMG is to become a leading world-class enterprise with great value creativity.
