/XCMG Official RP452L Asphalt Concrete Paver for Sale
- USD 34800.81 /Unit
- 1 Unit
- 34 Unit
- 21 days
Product Description

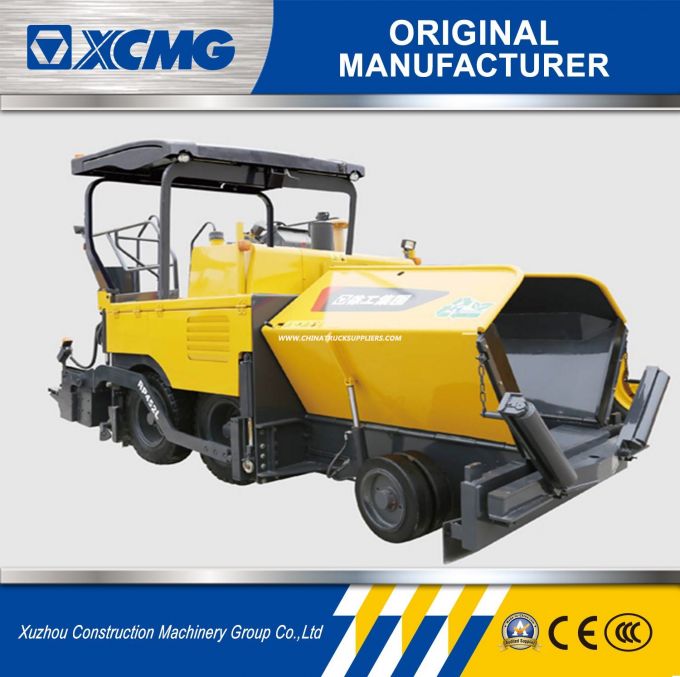

XCMG Official RP452L Asphalt Concrete Paver for sale
RP452L paver is the first full hydraulic compact type tyre asphalt concrete paver. It adopts full hydraulic drive and automatic electro-hydraulic control, featuring advanced technology and reliable performance. The minimum width of the machine is 2 meters, which is the smallest among homemade products. It is flexible and has wide applications. The rear 4WD technology effectively improves the driving force of the machine. The ergonomic design makes it simple and convenient to operate and maintain. Thus the product has high performance/price ratio.
RP452L paver can be widely used in the construction of highways, streets, country roads, expressways and the road maintenance work. It can effectively improve the flatness and compactness of the road surface.
Reliable drive system
It is the first set of full hydraulic drive compact type tyre asphalt concrete paver made in China. The travel, feed and material distribution system all adopt hydraulic drive, featuring good bearing capacity, high drive efficiency, and convenient control.
The plunger pump and motor all adopt products of America Sauer brand, and all the elements all adopt products of famous brands to ensure the reliability, such as control valve, steel pipe, joint, filter, etc.
Efficient feed/ material distribution system
The feed system and distribution system are independent and they can be controlled separately.
The single chain adopts unique double scraper blade, which effectively improves the conveying capability of the machine.
There is reverse blade in the middle of the material distribution bin, which can effectively improve the material supplying from the lower part of the bin and prevent dissociation.
Efficient control system
It adopts mechanical-electric-hydraulic integrated control technology, featuring high level of automation, control accuracy and reliability.
The left/right feed/material distribution device adopts ultrasonic level gauge which can achieve automatic even feeding of materials.
The standard configuration includes electronic automatic leveling device which ensures higher evenness of the paving surface.
Strong power system
Anhui Shangchai 4JR3G1 diesel engine, 55KW, large power reserve.
The combined radiator effectively reduces the working temperature of the engine and hydraulic system and ensures long-time reliable work.
Advanced screed technology
Hydraulic stepless extension/withdrawal, applicable to the work condition of widened road.
The unique frame design, and good overall rigidness of the screed.
The stepless adjustable vibration frequency can meet the requirements for various work conditions.
The quick gas heating design, nozzle with safety switch, and the heating is quick and safe.
Performance advantages
Compact structure, flexible control.
The minimum width of the machine body is 2m, which can be used freely at narrow roads.
The hopper is folded from single side, and the pushing wheel can be folded with the hopper synchronically, which improves the pass ability of the machine.
The control panel features centralized control, simple and convenient operation; combined instrument, and the work condition is very clear.
Excellent performance, wide application
Quick site transfer and paving speed, applicable to the construction of municipal highway and country road as well as the maintenance operation of expressway and various kinds of highways.
With small minimum paving width, it is applicable to the construction work of streets for residential areas and scenic spots.
Equipped with hydraulic telescopic screed, it is applicable to the paving of widened roads.
It adopts rear 4WD, which has large ground adhesive force, applicable to the paving of various kinds of road surface.
The wide hopper is applicable to various kinds of dump vehicle, the storage capacity of the hopper is up to 12t, which ensures successive paving operation.
Company profile
XCMG is aconstruction machinery manufacturer with over 70 years of experience. Over the years, we have grown to become the world's most comprehensive construction machinery manufacturer and influential multinational company. In 2015, we rank No.1 in China and No. 5in global heavy equipment industry.XCMG's construction machinery covers an astonishing range of equipment, including cranes, earth-movingmachinery, road machinery, excavators, concrete machinery, mining machinery, piling machinery, lumber machinery, fire-fighting machinery, heavy trucks, sanitation machinery, agricultural machinery, and more. We have the world's most comprehensive product line, and offer customers complete solutions for construction equipment.Our other businesses include finance, leasing, and remanufacturing.
At present, the power of my company's straight-arm crane is entirely from the hydraulic oil pressure, that is, through the high-pressure hydraulic oil to promote the cylinder piston reciprocating motion, or drive the hydraulic motor rotation makes the hydraulic winch and rotary mechanism rotation.
So, how do high-pressure hydraulic oil get? Each truck crane is equipped with ahydraulic pump when the vehicle chassis is matched, and the engine provides power for it. The chemical energy of the fuel can be converted into the crankshaft of the engine to rotate the mechanical energy, and then the gearbox gear is rotated, and then the power is transmitted to the hydraulic pump through the power transmission of the gearbox. Therefore, the hydraulic pump can continuously pressurize the hydraulic oil For the high-pressure hydraulic oil, so as to provide power for the crane to achieve the lifting of the goods.
Competitive Advantage
My company's straight arm crane crane covers 1-25 tons 14 models 65 kinds of products, to meet avariety of conditions, with the longest arm of the largest tonnage crane mature manufacturing technology, scientific research and development process, advanced Research and development technology, and constantly have new products to market, to meet customer use.
My company's boom arm section with mature pentagonal, hexagonal and octagonal, the latest generation of products with U-shaped arc arm body weight reduction, arm width of alarge deflection, stability and resistance to deformation Ability to improve, significantly enhance the lifting capacity.
The application of the sub-arm, sub-winch and vice-hook provides abasis for the rapid and large-scale operation of the crane light load and the high-altitude operation. The application of automatic hook technology saves time and effort when starting and ending crane operations, making it easy to operate easily.
Ourcompanywillofferyouthehighqualityproductswithalowprice,quickdelivery,andprofessionalafter-saleservice.
FAQ
1: What kind terms ofpaymentcan be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: Whatcertificatesare available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about thedelivery time?
A: 30 days after receiving the deposit.
4: What about thewarranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about theMinimum Order Quantity?
A: The MOQ is 1 pcs
Contact us
Mr Fang+86 187 9621 1467
Mr Ding+86 138 5200 7271
Mr zou+86 152 6202 3988
RP452L paver is the first full hydraulic compact type tyre asphalt concrete paver. It adopts full hydraulic drive and automatic electro-hydraulic control, featuring advanced technology and reliable performance. The minimum width of the machine is 2 meters, which is the smallest among homemade products. It is flexible and has wide applications. The rear 4WD technology effectively improves the driving force of the machine. The ergonomic design makes it simple and convenient to operate and maintain. Thus the product has high performance/price ratio.
RP452L paver can be widely used in the construction of highways, streets, country roads, expressways and the road maintenance work. It can effectively improve the flatness and compactness of the road surface.
Reliable drive system
It is the first set of full hydraulic drive compact type tyre asphalt concrete paver made in China. The travel, feed and material distribution system all adopt hydraulic drive, featuring good bearing capacity, high drive efficiency, and convenient control.
The plunger pump and motor all adopt products of America Sauer brand, and all the elements all adopt products of famous brands to ensure the reliability, such as control valve, steel pipe, joint, filter, etc.
Efficient feed/ material distribution system
The feed system and distribution system are independent and they can be controlled separately.
The single chain adopts unique double scraper blade, which effectively improves the conveying capability of the machine.
There is reverse blade in the middle of the material distribution bin, which can effectively improve the material supplying from the lower part of the bin and prevent dissociation.
Efficient control system
It adopts mechanical-electric-hydraulic integrated control technology, featuring high level of automation, control accuracy and reliability.
The left/right feed/material distribution device adopts ultrasonic level gauge which can achieve automatic even feeding of materials.
The standard configuration includes electronic automatic leveling device which ensures higher evenness of the paving surface.
Strong power system
Anhui Shangchai 4JR3G1 diesel engine, 55KW, large power reserve.
The combined radiator effectively reduces the working temperature of the engine and hydraulic system and ensures long-time reliable work.
Advanced screed technology
Hydraulic stepless extension/withdrawal, applicable to the work condition of widened road.
The unique frame design, and good overall rigidness of the screed.
The stepless adjustable vibration frequency can meet the requirements for various work conditions.
The quick gas heating design, nozzle with safety switch, and the heating is quick and safe.
Performance advantages
Compact structure, flexible control.
The minimum width of the machine body is 2m, which can be used freely at narrow roads.
The hopper is folded from single side, and the pushing wheel can be folded with the hopper synchronically, which improves the pass ability of the machine.
The control panel features centralized control, simple and convenient operation; combined instrument, and the work condition is very clear.
Excellent performance, wide application
Quick site transfer and paving speed, applicable to the construction of municipal highway and country road as well as the maintenance operation of expressway and various kinds of highways.
With small minimum paving width, it is applicable to the construction work of streets for residential areas and scenic spots.
Equipped with hydraulic telescopic screed, it is applicable to the paving of widened roads.
It adopts rear 4WD, which has large ground adhesive force, applicable to the paving of various kinds of road surface.
The wide hopper is applicable to various kinds of dump vehicle, the storage capacity of the hopper is up to 12t, which ensures successive paving operation.
| Item | Unit | RP452L |
| Basic paving width | m | 2.0 |
| Max paving width | m | 4.5 |
| Max paving thickness | mm | 150 |
| Paving speed | m/min | 0~13 |
| Travel speed | Km/h | 0~13 |
| Theoretical productivity capacity | t/h | 240 |
| Hopper capacity | t | 12 |
| Gradeability | % | 20 |
| Pavement evennesss | mm/3m | 3 |
| Transverse leveling accuracy | % | ±0.03 |
| Centre crown ratio | % | 0~+3 |
| Engine model | YC4D95Z-T21 | |
| Engine power | Kw | 70 |
| Engine speed | r/min | 2200 |
| Diesel tank capcity | L | 130 |
| Machine weight | t | 10.5 |
| Overall dimensions | mm | 5690x2070X3590 |
| Auger speed | r/min | 0~73 |
| Conveyor speed | m/min | 0~30 |
| Tamper vibration frequency | Hz | 6~42 |
| Screed heating | Gas heating | |
| Auger and conveyor control | Automatic control ultrasonic sensors | |
| Automatic leveling control | Simulator control |
Company profile
XCMG is aconstruction machinery manufacturer with over 70 years of experience. Over the years, we have grown to become the world's most comprehensive construction machinery manufacturer and influential multinational company. In 2015, we rank No.1 in China and No. 5in global heavy equipment industry.XCMG's construction machinery covers an astonishing range of equipment, including cranes, earth-movingmachinery, road machinery, excavators, concrete machinery, mining machinery, piling machinery, lumber machinery, fire-fighting machinery, heavy trucks, sanitation machinery, agricultural machinery, and more. We have the world's most comprehensive product line, and offer customers complete solutions for construction equipment.Our other businesses include finance, leasing, and remanufacturing.
At present, the power of my company's straight-arm crane is entirely from the hydraulic oil pressure, that is, through the high-pressure hydraulic oil to promote the cylinder piston reciprocating motion, or drive the hydraulic motor rotation makes the hydraulic winch and rotary mechanism rotation.
So, how do high-pressure hydraulic oil get? Each truck crane is equipped with ahydraulic pump when the vehicle chassis is matched, and the engine provides power for it. The chemical energy of the fuel can be converted into the crankshaft of the engine to rotate the mechanical energy, and then the gearbox gear is rotated, and then the power is transmitted to the hydraulic pump through the power transmission of the gearbox. Therefore, the hydraulic pump can continuously pressurize the hydraulic oil For the high-pressure hydraulic oil, so as to provide power for the crane to achieve the lifting of the goods.
Competitive Advantage
My company's straight arm crane crane covers 1-25 tons 14 models 65 kinds of products, to meet avariety of conditions, with the longest arm of the largest tonnage crane mature manufacturing technology, scientific research and development process, advanced Research and development technology, and constantly have new products to market, to meet customer use.
My company's boom arm section with mature pentagonal, hexagonal and octagonal, the latest generation of products with U-shaped arc arm body weight reduction, arm width of alarge deflection, stability and resistance to deformation Ability to improve, significantly enhance the lifting capacity.
The application of the sub-arm, sub-winch and vice-hook provides abasis for the rapid and large-scale operation of the crane light load and the high-altitude operation. The application of automatic hook technology saves time and effort when starting and ending crane operations, making it easy to operate easily.
Ourcompanywillofferyouthehighqualityproductswithalowprice,quickdelivery,andprofessionalafter-saleservice.
FAQ
1: What kind terms ofpaymentcan be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: Whatcertificatesare available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about thedelivery time?
A: 30 days after receiving the deposit.
4: What about thewarranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about theMinimum Order Quantity?
A: The MOQ is 1 pcs
Contact us
Mr Fang+86 187 9621 1467
Mr Ding+86 138 5200 7271
Mr zou+86 152 6202 3988
