/XCMG 1.6t Light Vibratory Double Road Rollers Xmr15s
- USD 11400.27 /Unit
- 1 Unit
- 36 Unit
- 23 days
Product Description
Our company will offer you the high quality products with a low price, quick delivery,and professional after-sale service.

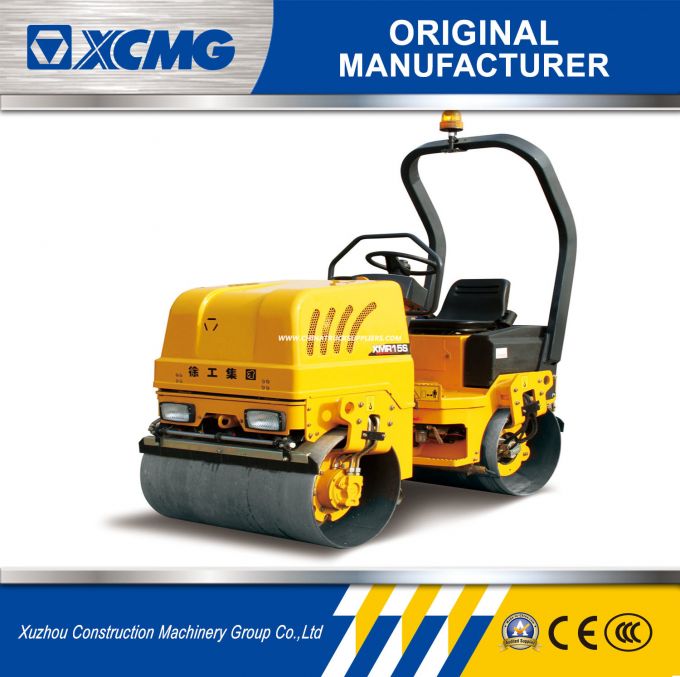

XCMG 1.6ton Light Vibratory Double Road Rollers XMR15S
XMR15S is a light-duty vibratory roller with working mass of 1.6t. Specially designed for compacting operation at small field, the vibratory roller features small volume, powerful manoeuvrability, good compacting flatness and high operating efficiency and can be used for compacting base courses and top courses. The machine is extensively applied to construction and maintenance of various infrastructures and the is the necessary construction equipment for road maintenance, repair over a small area and compaction in trenches, which has particular compacting efficiency in municipal works like construction of stadiums, parks, sidewalks, parking lots, etc.
XMR15S is a light-duty vibratory roller with working mass of 1.6t. Specially designed for compacting operation at small field, the vibratory roller features small volume, powerful manoeuvrability, good compacting flatness and high operating efficiency and can be used for compacting base courses and top courses. The machine is extensively applied to construction and maintenance of various infrastructures and the is the necessary construction equipment for road maintenance, repair over a small area and compaction in trenches, which has particular compacting efficiency in municipal works like construction of stadiums, parks, sidewalks, parking lots, etc.
XCMG is aconstruction machinery manufacturer with over 70 years of experience. Over the years, we have grown to become the world's most comprehensive construction machinery manufacturer and influential multinational company. In 2015, we rank No.1 in China and No. 5in global heavy equipment industry.XCMG's construction machinery covers an astonishing range of equipment, including cranes, earth-movingmachinery, road machinery, excavators, concrete machinery, mining machinery, piling machinery, lumber machinery, fire-fighting machinery, heavy trucks, sanitation machinery, agricultural machinery, and more. We have the world's most comprehensive product line, and offer customers complete solutions for construction equipment.Our other businesses include finance, leasing, and remanufacturing.
At present, the power of my company's straight-arm crane is entirely from the hydraulic oil pressure, that is, through the high-pressure hydraulic oil to promote the cylinder piston reciprocating motion, or drive the hydraulic motor rotation makes the hydraulic winch and rotary mechanism rotation.
So, how do high-pressure hydraulic oil get? Each truck crane is equipped with ahydraulic pump when the vehicle chassis is matched, and the engine provides power for it. The chemical energy of the fuel can be converted into the crankshaft of the engine to rotate the mechanical energy, and then the gearbox gear is rotated, and then the power is transmitted to the hydraulic pump through the power transmission of the gearbox. Therefore, the hydraulic pump can continuously pressurize the hydraulic oil For the high-pressure hydraulic oil, so as to provide power for the crane to achieve the lifting of the goods.
Competitive Advantage
My company's straight arm crane crane covers 1-25 tons 14 models 65 kinds of products, to meet avariety of conditions, with the longest arm of the largest tonnage crane mature manufacturing technology, scientific research and development process, advanced Research and development technology, and constantly have new products to market, to meet customer use.
My company's boom arm section with mature pentagonal, hexagonal and octagonal, the latest generation of products with U-shaped arc arm body weight reduction, arm width of alarge deflection, stability and resistance to deformation Ability to improve, significantly enhance the lifting capacity.
The application of the sub-arm, sub-winch and vice-hook provides abasis for the rapid and large-scale operation of the crane light load and the high-altitude operation. The application of automatic hook technology saves time and effort when starting and ending crane operations, making it easy to operate easily.
Ourcompanywillofferyouthehighqualityproductswithalowprice,quickdelivery,andprofessionalafter-saleservice.
FAQ
1: What kind terms ofpaymentcan be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: Whatcertificatesare available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about thedelivery time?
A: 30 days after receiving the deposit.
4: What about thewarranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about theMinimum Order Quantity?
A: The MOQ is 1 pcs
Contact us
Mr Fang+86 187 9621 1467
Mr Ding+86 138 5200 7271
Mr zou+86 152 6202 3988
XCMG 1.6ton Light Vibratory Double Road Rollers XMR15S
XMR15S is a light-duty vibratory roller with working mass of 1.6t. Specially designed for compacting operation at small field, the vibratory roller features small volume, powerful manoeuvrability, good compacting flatness and high operating efficiency and can be used for compacting base courses and top courses. The machine is extensively applied to construction and maintenance of various infrastructures and the is the necessary construction equipment for road maintenance, repair over a small area and compaction in trenches, which has particular compacting efficiency in municipal works like construction of stadiums, parks, sidewalks, parking lots, etc.XMR15S is a light-duty vibratory roller with working mass of 1.6t. Specially designed for compacting operation at small field, the vibratory roller features small volume, powerful manoeuvrability, good compacting flatness and high operating efficiency and can be used for compacting base courses and top courses. The machine is extensively applied to construction and maintenance of various infrastructures and the is the necessary construction equipment for road maintenance, repair over a small area and compaction in trenches, which has particular compacting efficiency in municipal works like construction of stadiums, parks, sidewalks, parking lots, etc.
Item | XMR15S |
| Kg Working mass, Kg | 1600 |
| (/)Kg Distributed mass of vibrating drum (front wheel/rear wheel), Kg | 800/800 |
| (/)N/cm Static linear load (front wheel/rear wheel), N/cm | 88/88 |
| km/h Speed scope, km/h | 0~9 |
| % Theoretical gradeability, % | 30 |
| mm Minimum turning external radius, mm | 2700 |
| mm Minimum ground clearance, mm | 250 |
| mm Wheel base, mm | 1350 |
Steering angle | ±34° |
Swing angle | ±7° |
| Hz Vibration frequency, Hz | 70 |
| mm Nominal amplitude, mm | 0.4 |
| kN Exciting force kN | 17 |
| mm Diameter of compacting roller, mm | 582 |
| mm Width of compacting roller, mm | 893 |
Engine model | Perkins 403D-11 |
| r/min Engine rated speed, r/min | 2600 |
| kW Engine rated power, kW | 17.3 |
| g/kW.h Engine oil consumption, g/kW.h | 253 |
| L Capacity of hydraulic oil tank, L | 19 |
| L Capacity of fuel tank, L | 24 |
| L Capacity of watering tank, L | 110 |
XCMG is aconstruction machinery manufacturer with over 70 years of experience. Over the years, we have grown to become the world's most comprehensive construction machinery manufacturer and influential multinational company. In 2015, we rank No.1 in China and No. 5in global heavy equipment industry.XCMG's construction machinery covers an astonishing range of equipment, including cranes, earth-movingmachinery, road machinery, excavators, concrete machinery, mining machinery, piling machinery, lumber machinery, fire-fighting machinery, heavy trucks, sanitation machinery, agricultural machinery, and more. We have the world's most comprehensive product line, and offer customers complete solutions for construction equipment.Our other businesses include finance, leasing, and remanufacturing.
At present, the power of my company's straight-arm crane is entirely from the hydraulic oil pressure, that is, through the high-pressure hydraulic oil to promote the cylinder piston reciprocating motion, or drive the hydraulic motor rotation makes the hydraulic winch and rotary mechanism rotation.
So, how do high-pressure hydraulic oil get? Each truck crane is equipped with ahydraulic pump when the vehicle chassis is matched, and the engine provides power for it. The chemical energy of the fuel can be converted into the crankshaft of the engine to rotate the mechanical energy, and then the gearbox gear is rotated, and then the power is transmitted to the hydraulic pump through the power transmission of the gearbox. Therefore, the hydraulic pump can continuously pressurize the hydraulic oil For the high-pressure hydraulic oil, so as to provide power for the crane to achieve the lifting of the goods.
Competitive Advantage
My company's straight arm crane crane covers 1-25 tons 14 models 65 kinds of products, to meet avariety of conditions, with the longest arm of the largest tonnage crane mature manufacturing technology, scientific research and development process, advanced Research and development technology, and constantly have new products to market, to meet customer use.
My company's boom arm section with mature pentagonal, hexagonal and octagonal, the latest generation of products with U-shaped arc arm body weight reduction, arm width of alarge deflection, stability and resistance to deformation Ability to improve, significantly enhance the lifting capacity.
The application of the sub-arm, sub-winch and vice-hook provides abasis for the rapid and large-scale operation of the crane light load and the high-altitude operation. The application of automatic hook technology saves time and effort when starting and ending crane operations, making it easy to operate easily.
Ourcompanywillofferyouthehighqualityproductswithalowprice,quickdelivery,andprofessionalafter-saleservice.
FAQ
1: What kind terms ofpaymentcan be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: Whatcertificatesare available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about thedelivery time?
A: 30 days after receiving the deposit.
4: What about thewarranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about theMinimum Order Quantity?
A: The MOQ is 1 pcs
Contact us
Mr Fang+86 187 9621 1467
Mr Ding+86 138 5200 7271
Mr zou+86 152 6202 3988
