/Lorry Crane 4X2 XCMG 1-2ton Hydraulic Truck Mounted Crane Sq2sk1q
- USD 1000.10 /Unit
- 1 Unit
- 68 Unit
- 20 days
Product Description

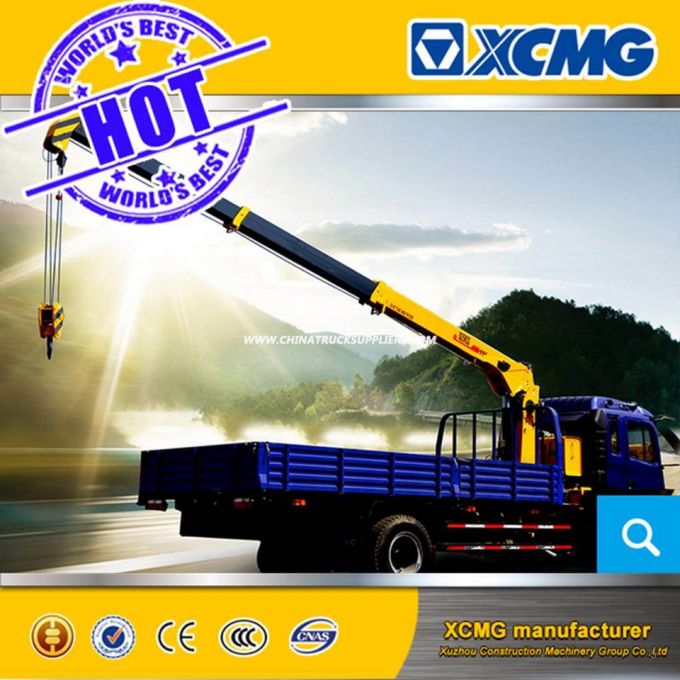

Truck Lorry Crane 4x2 XCMG 1Ton 2Ton hydraulic Truck Mounted Crane SQ2SK1QSQ2SK2Q
At present, the power of my company's straight-arm crane is entirely from the hydraulic oil pressure, that is, through the high-pressure hydraulic oil to promote the cylinder piston reciprocating motion, or drive the hydraulic motor rotation makes the hydraulic winch and rotary mechanism rotation.
So, how do high-pressure hydraulic oil get? Each truck crane is equipped with ahydraulic pump when the vehicle chassis is matched, and the engine provides power for it. The chemical energy of the fuel can be converted into the crankshaft of the engine to rotate the mechanical energy, and then the gearbox gear is rotated, and then the power is transmitted to the hydraulic pump through the power transmission of the gearbox. Therefore, the hydraulic pump can continuously pressurize the hydraulic oil For the high-pressure hydraulic oil, so as to provide power for the crane to achieve the lifting of the goods.
Competitive Advantage
My company's straight arm crane crane covers 1-25 tons 14 models 65 kinds of products, to meet avariety of conditions, with the longest arm of the largest tonnage crane mature manufacturing technology, scientific research and development process, advanced Research and development technology, and constantly have new products to market, to meet customer use.
My company's boom arm section with mature pentagonal, hexagonal and octagonal, the latest generation of products with U-shaped arc arm body weight reduction, arm width of alarge deflection, stability and resistance to deformation Ability to improve, significantly enhance the lifting capacity.
The application of the sub-arm, sub-winch and vice-hook provides abasis for the rapid and large-scale operation of the crane light load and the high-altitude operation. The application of automatic hook technology saves time and effort when starting and ending crane operations, making it easy to operate easily.
BIN LIU
Xuzhou Construction Machinery Group Co., Ltd.
office.China :+86 (0)516 87739535
Mobile.: +86 136 8513 7919
| Item | Unit | SQ2SK1Q |
| Max Lifting Capacity | kg | 2100 |
| Max Lifting Moment | t.m | 4.2 |
| Recommend Power | kw | 9 |
| Max Oil Flow of Hydraulic System | L/min | 20 |
| Max Pressure of Hydraulic System | Mpa | 16 |
| Oil Tank Capacity | L | 25 |
| Crance Weight | kg | 875 |
| Installation Space | mm | 850 |
| Rotation Angle | ° | 360°All Rotaion |
| Item | Unit | SQ2SK2Q |
| Max Lifting Capacity | kg | 2100 |
| Max Lifting Moment | t.m | 4.2 |
| Recommend Power | kw | 9 |
| Max Oil Flow of Hydraulic System | L/min | 20 |
| Max Pressure of Hydraulic System | Mpa | 16 |
| Oil Tank Capacity | L | 25 |
| Crance Weight | kg | 950 |
| Installation Space | mm | 850 |
| Rotation Angle | ° | 360°All Rotaion |
At present, the power of my company's straight-arm crane is entirely from the hydraulic oil pressure, that is, through the high-pressure hydraulic oil to promote the cylinder piston reciprocating motion, or drive the hydraulic motor rotation makes the hydraulic winch and rotary mechanism rotation.
So, how do high-pressure hydraulic oil get? Each truck crane is equipped with ahydraulic pump when the vehicle chassis is matched, and the engine provides power for it. The chemical energy of the fuel can be converted into the crankshaft of the engine to rotate the mechanical energy, and then the gearbox gear is rotated, and then the power is transmitted to the hydraulic pump through the power transmission of the gearbox. Therefore, the hydraulic pump can continuously pressurize the hydraulic oil For the high-pressure hydraulic oil, so as to provide power for the crane to achieve the lifting of the goods.
Competitive Advantage
My company's straight arm crane crane covers 1-25 tons 14 models 65 kinds of products, to meet avariety of conditions, with the longest arm of the largest tonnage crane mature manufacturing technology, scientific research and development process, advanced Research and development technology, and constantly have new products to market, to meet customer use.
My company's boom arm section with mature pentagonal, hexagonal and octagonal, the latest generation of products with U-shaped arc arm body weight reduction, arm width of alarge deflection, stability and resistance to deformation Ability to improve, significantly enhance the lifting capacity.
The application of the sub-arm, sub-winch and vice-hook provides abasis for the rapid and large-scale operation of the crane light load and the high-altitude operation. The application of automatic hook technology saves time and effort when starting and ending crane operations, making it easy to operate easily.
BIN LIU
Xuzhou Construction Machinery Group Co., Ltd.
office.China :+86 (0)516 87739535
Mobile.: +86 136 8513 7919
