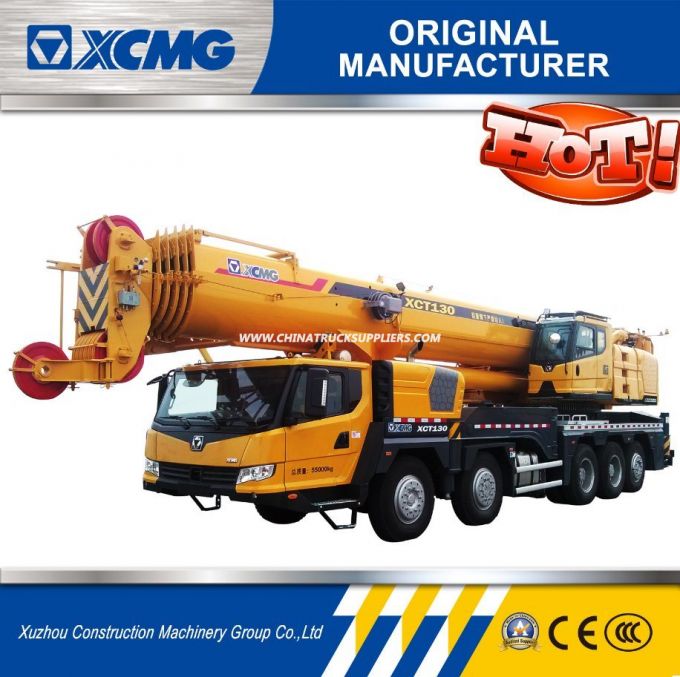

XCMG XCT130 130Ton Truck Crane for Sale

Our company will offer you the high quality products with alow price, quick delivery, and professional after-sale service.
XCMG Xct130 130ton Truck Crane for Sale

Technical Specifications

XCT130 adopts five-axle truck crane chassis, six U-shaped booms, fixed extended jib, concealed double independent winches, external-geared slewing mechanism, combined counterweight, open hydraulic system. Main pump adopts variable pump, supplemented by fixed-displacement pump. Winch applies variable motor and slewing mechanism adopts fixed-displacement motor to meet different needs. Load-sensitive system brings higher working efficiency. Multiple-mode monitoring function is supported by computer- integrated control technology, which contributes to safer operation. The new outline of XCT series shows great elegance with stratified curved cover and large monolithic control panel in operator's cab. All these features contribute to larger working range, stronger lifting capacity and easier operation.

Category	Item			Unit	Parameter
Dimension s	Overall length			mm	15195
	Overall width			mm	3000
	Overall height			mm	3970
	Wheel base			mm	1920+3500+1420+1505
	Track			mm	2449/2449/2315/2315/2449
	Front overhang			mm	2650
	Rear overhang			mm	2765
Weight	Total weight in travel configuration			kg	55000
	Axle load		1st axle	kg	10000
			2nd axle	kg	10000
			3rd axle	kg	13000
			4th axle	kg	13000
			5th axle	kg	9000
Power	Chassis engine model				ISM11E4 440	WP12.430 E40	WP12.430 E50
	Engine rated power			kw/(r/min)	318/1900	316/1900
	Engine rated torque			N.m/(r/min)	2080/1200~1300	2060/1000~1400
	Superstructure engine model				WP6G240E330	OM906LA.E3A/2
	Engine rated power			kw/(r/min)	176/2300	190/2200
	Engine rated torque			N.m/(r/min)	860/1200-1700	1000/1200-1600
Travel	Tra vel speed	Max. travel speed		km/h	80(China National IV)/90(China National V)
		Min. travel speed		km/h	3
	Tur ning	Min. turning diameter		m	23
	Min. ground clearance			mm	312
	Approach angle			°	18

Competitive Advantage
My company's straight arm crane crane covers 1-25 tons 14 models 65 kinds of products, to meet avariety of conditions, with the longest arm of the largest tonnage crane mature manufacturing technology, scientific research and development process, advanced Research and development technology, and constantly have new products to market, to meet customer use.
My company's boom arm section with mature pentagonal, hexagonal and octagonal, the latest generation of products with U-shaped arc arm body weight reduction, arm width of alarge deflection, stability and resistance to deformation Ability to improve, significantly enhance the lifting capacity.
The application of the sub-arm, sub-winch and vice-hook provides abasis for the rapid and large-scale operation of the crane light load and the high-altitude operation. The application of automatic hook technology saves time and effort when starting and ending crane operations, making it easy to operate easily.
