XCMG XCT100 100Ton Truck Crane for Sale

Our company will offer you the high quality products with alow price, quick delivery, and professional after-sale service.

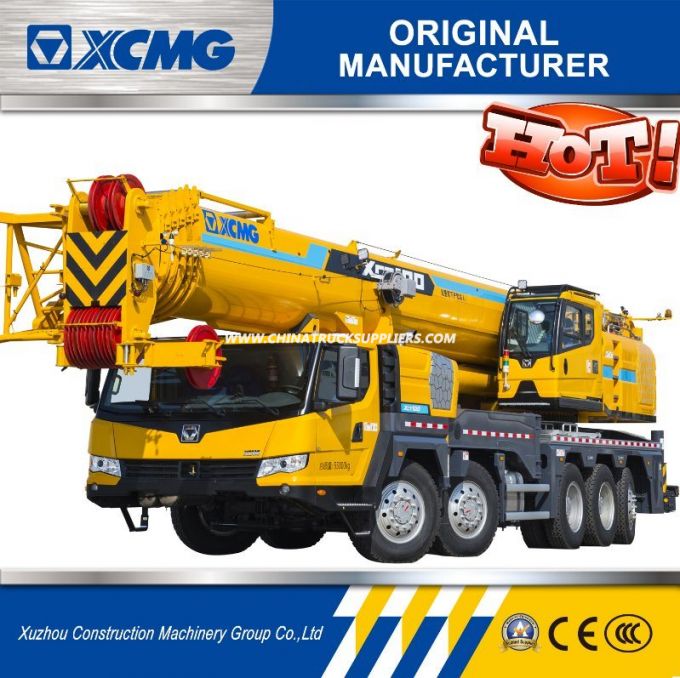

XCMG Xct100 100ton Truck Crane for Sale

Technical Specifications

XCT100(G1) is mounted on a five-axle chassis for truck crane with engine conforming to China national V emission standard. Six-section U-shaped booms are applied with new single-cylinder pinning telescoping system. Fixed jib, including optional inserts and independent jib head is also adopted. Furthermore, this product applies concealed double independent winches, external-geared slewing mechanism, combined counterweight and open hydraulic system. Main pump adopts variable pump, supplemented by fixed-displacement pump. Winch applies variable motor and slewing mechanism adopts fixed-displacement motor to meet different needs. Load-sensitive system brings higher working efficiency. Multiple-mode monitoring function is supported by computer-integrated control technology. Meanwhile, safer and more reliable operation is also realized by the comprehensive application of intelligent boom technology. New appearance, humanized design and the utilization of human-machine interactive system satisfy the humanized needs of users. All these features contribute to larger working range stronger lifting capacity and easier operation.

Category	Item		Unit	Parameter
				XCT100(G1)
Outline Dimensions	Length×Width×Height		mm	15600×3000×3870
	Wheel base		mm	1920+3500+1420+1505
	Track(front/rear)		mm	2449/2315
	Front/Rear overhang		mm	2650/2765
	Front/Rear extension		mm	1840/0
Weight	Max. gross vehicle weight		kg	55000
	Axle load	1st Axle	kg	10000
		2nd Axle	kg	10000
		3rd Axle	kg	13000
		4th Axle	kg	13000
		5th Axle	kg	9000
Travel	Max. travel speed		km/h	90
	Min. turning diameter		m	23
	Min. ground clearance		mm	326
	Approach / departure angle		°	18/13
	Braking distance(initial brake speed at 30 km/h)		m	≤10
	Max. grade ability		%	45
	Exterior noise level		dB(A)	≤88
	Noise level at seated position		dB(A)	≤90
	Oil consumption per 100 km		L	70(Weichai Power)	65(Xi'an cummins)
Chassis	Engine	Model	--	WP6G240E330	OM906LA.E3A/2
		Rated power/ rotating speed	kW/(r/min)	176/2300	190/2200
		Max. output torque/rotating speed	N.m/(r/min)	860/1200-1700	1000/1200-1600
		Model	--	WP12.430 E50	ISM11E5 440
		Rated power/ rotating speed	kW/(r/min)	316/1900	324/1900
		Max. output torque/ rotating speed	N.m/(r/min)	2060/1000-1400	2080/1200

Competitive Advantage
My company's straight arm crane crane covers 1-25 tons 14 models 65 kinds of products, to meet avariety of conditions, with the longest arm of the largest tonnage crane mature manufacturing technology, scientific research and development process, advanced Research and development technology, and constantly have new products to market, to meet customer use.
My company's boom arm section with mature pentagonal, hexagonal and octagonal, the latest generation of products with U-shaped arc arm body weight reduction, arm width of alarge deflection, stability and resistance to deformation Ability to improve, significantly enhance the lifting capacity.
The application of the sub-arm, sub-winch and vice-hook provides abasis for the rapid and large-scale operation of the crane light load and the high-altitude operation. The application of automatic hook technology saves time and effort when starting and ending crane operations, making it easy to operate easily.
