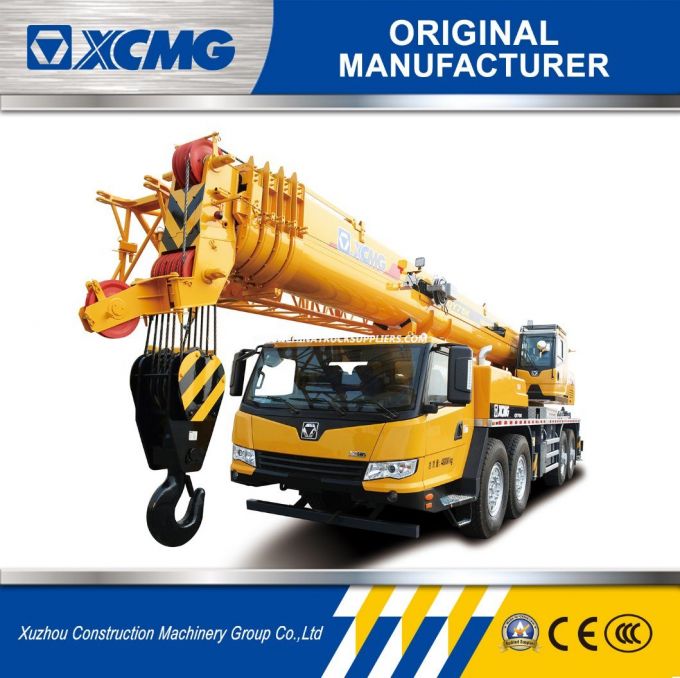

/XCMG Crane Lift Qy75K 75ton Truck-Mounted Crane
- USD 180000.30 /Unit
- 1 Unit
- 66 Unit
- 26 days
Product Description
Our company will offer you the high quality products with a low price, quick delivery,and professional after-sale service.
XCMG crane lift Qy75k 75ton truck-mounted crane
TRUCK CRANE Descriptions
Five main U-type booms with plug-in boom heads, leading ahead of competitors in aspects of lifting heights and working ranges and ranking top in lifting capacity industries that 3%-15% exceeds of competitors' products with the same tonnages;
Working range: The lengths of main boom and jib respectively are 47m and17.5m that the working range completely exceeds that of competitors;
The mature combined-type counterweight technique: Provide users with more abundant combined conditions through the multi-composite modes of combined-type counterweight technique. New-type mechanical fixing device of counterweight: It makes counterweight fixed in the same frame when driving that is easier and more convenient to place; Make sure no shaking and turning conditions of the counterweight appear when driving, which is more efficient, steady and reliable.
Parameters
Company profile
XCMG is aconstruction machinery manufacturer with over 70 years of experience. Over the years, we have grown to become the world's most comprehensive construction machinery manufacturer and influential multinational company. In 2015, we rank No. 1in China and No. 5in global heavy equipment industry. XCMG's construction machinery covers an astonishing range of equipment, including cranes, earth-moving machinery, road machinery, excavators, concrete machinery, mining machinery, piling machinery, lumber machinery, fire-fighting machinery, heavy trucks, sanitation machinery, agricultural machinery, and more. We have the world's most comprehensive product line, and offer customers complete solutions for construction equipment. Our other businesses include finance, leasing, and remanufacturing.
At present, the power of my company's straight-arm crane is entirely from the hydraulic oil pressure, that is, through the high-pressure hydraulic oil to promote the cylinder piston reciprocating motion, or drive the hydraulic motor rotation makes the hydraulic winch and rotary mechanism rotation.
So, how do high-pressure hydraulic oil get? Each truck crane is equipped with ahydraulic pump when the vehicle chassis is matched, and the engine provides power for it. The chemical energy of the fuel can be converted into the crankshaft of the engine to rotate the mechanical energy, and then the gearbox gear is rotated, and then the power is transmitted to the hydraulic pump through the power transmission of the gearbox. Therefore, the hydraulic pump can continuously pressurize the hydraulic oil For the high-pressure hydraulic oil, so as to provide power for the crane to achieve the lifting of the goods.
Competitive Advantage
My company's straight arm crane crane covers 1-25 tons 14 models 65 kinds of products, to meet avariety of conditions, with the longest arm of the largest tonnage crane mature manufacturing technology, scientific research and development process, advanced Research and development technology, and constantly have new products to market, to meet customer use.
My company's boom arm section with mature pentagonal, hexagonal and octagonal, the latest generation of products with U-shaped arc arm body weight reduction, arm width of alarge deflection, stability and resistance to deformation Ability to improve, significantly enhance the lifting capacity.
The application of the sub-arm, sub-winch and vice-hook provides abasis for the rapid and large-scale operation of the crane light load and the high-altitude operation. The application of automatic hook technology saves time and effort when starting and ending crane operations, making it easy to operate easily.
FAQ
1: What kind terms ofpaymentcan be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: Whatcertificatesare available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about thedelivery time?
A: 30 days after receiving the deposit.
4: What about thewarranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about theMinimum Order Quantity?
A: The MOQ is 1 pcs
Contact us
Mr Fang +86 187 9621 1467
Mr Ding +86 138 5200 7271
Mr zou +86 152 6202 3988
XCMG crane lift Qy75k 75ton truck-mounted crane
TRUCK CRANE Descriptions
Five main U-type booms with plug-in boom heads, leading ahead of competitors in aspects of lifting heights and working ranges and ranking top in lifting capacity industries that 3%-15% exceeds of competitors' products with the same tonnages;
Working range: The lengths of main boom and jib respectively are 47m and17.5m that the working range completely exceeds that of competitors;
The mature combined-type counterweight technique: Provide users with more abundant combined conditions through the multi-composite modes of combined-type counterweight technique. New-type mechanical fixing device of counterweight: It makes counterweight fixed in the same frame when driving that is easier and more convenient to place; Make sure no shaking and turning conditions of the counterweight appear when driving, which is more efficient, steady and reliable.
Parameters
| Item | Parameter | Unit |
| Overall length | 14650 | mm |
| Overall width | 2800 | mm |
| Overall height | 3880 | mm |
| Wheel base | 1500+4665+1500 | mm |
| Wheel track | 2380/2300 | mm |
| Total mass under driving status | 48000 | Kg |
| The fist and second axles | 12000 | Kg |
| The third and forth axles | 12000 | Kg |
| Engine type | D10.38A-40 | |
| Engine power rating | 276/2200 | Kw/(r/min) |
| Rated torque of engine | 1500/1100-1600 | N. M/(r/min) |
| Maximum travel speed | 80 | Km/h |
| Minimum diameter of turning circle | 20 | M |
| Minimum ground clearance | 427 | mm |
| Approach angle | 19 | |
| Departure angle | 15 | |
| Braking length (the speed is 30km/h) | 10 | M |
| Maximum grade ability | 37 | % |
| Fuel consumption per hundred kilometers | 48 | L |
| Maximum rated total suspended load | 75 | T |
| Minimum working range | 3 | M |
| Turning radius of rotary table | 4330 | mm |
| base boom | 2969 | Kn. M |
| Full-extend boom | 1428 | Kn. M |
| Length wise direction | 6.4 | M |
| Landscape orientation | 7.6 | M |
| base boom-lifting height | 12.6 | M |
| Full-extend boom-lifting height | 47 | M |
| Full-extend boom+jib-lifting height | 64 | M |
| base boom-boom length | 12.2 | M |
| Full-extend boom-boom length | 47 | M |
| Full-extend boom+jib-boom length | 64.5 | M |
Company profile
XCMG is aconstruction machinery manufacturer with over 70 years of experience. Over the years, we have grown to become the world's most comprehensive construction machinery manufacturer and influential multinational company. In 2015, we rank No. 1in China and No. 5in global heavy equipment industry. XCMG's construction machinery covers an astonishing range of equipment, including cranes, earth-moving machinery, road machinery, excavators, concrete machinery, mining machinery, piling machinery, lumber machinery, fire-fighting machinery, heavy trucks, sanitation machinery, agricultural machinery, and more. We have the world's most comprehensive product line, and offer customers complete solutions for construction equipment. Our other businesses include finance, leasing, and remanufacturing.
At present, the power of my company's straight-arm crane is entirely from the hydraulic oil pressure, that is, through the high-pressure hydraulic oil to promote the cylinder piston reciprocating motion, or drive the hydraulic motor rotation makes the hydraulic winch and rotary mechanism rotation.
So, how do high-pressure hydraulic oil get? Each truck crane is equipped with ahydraulic pump when the vehicle chassis is matched, and the engine provides power for it. The chemical energy of the fuel can be converted into the crankshaft of the engine to rotate the mechanical energy, and then the gearbox gear is rotated, and then the power is transmitted to the hydraulic pump through the power transmission of the gearbox. Therefore, the hydraulic pump can continuously pressurize the hydraulic oil For the high-pressure hydraulic oil, so as to provide power for the crane to achieve the lifting of the goods.
Competitive Advantage
My company's straight arm crane crane covers 1-25 tons 14 models 65 kinds of products, to meet avariety of conditions, with the longest arm of the largest tonnage crane mature manufacturing technology, scientific research and development process, advanced Research and development technology, and constantly have new products to market, to meet customer use.
My company's boom arm section with mature pentagonal, hexagonal and octagonal, the latest generation of products with U-shaped arc arm body weight reduction, arm width of alarge deflection, stability and resistance to deformation Ability to improve, significantly enhance the lifting capacity.
The application of the sub-arm, sub-winch and vice-hook provides abasis for the rapid and large-scale operation of the crane light load and the high-altitude operation. The application of automatic hook technology saves time and effort when starting and ending crane operations, making it easy to operate easily.
FAQ
1: What kind terms ofpaymentcan be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: Whatcertificatesare available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about thedelivery time?
A: 30 days after receiving the deposit.
4: What about thewarranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about theMinimum Order Quantity?
A: The MOQ is 1 pcs
Contact us
Mr Fang +86 187 9621 1467
Mr Ding +86 138 5200 7271
Mr zou +86 152 6202 3988
