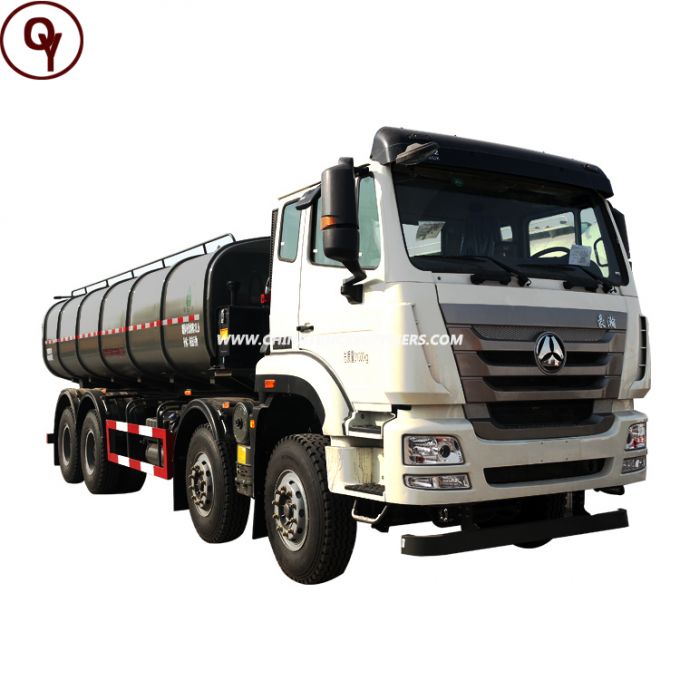

China Sinotruk HOWO Cleaning Sewage Suction Tanker Truck

  • China Sinotruk HOWO Cleaning Sewage Suction Tanker Truck
  • USD 23000.28 /Unit
  • 1 Unit
  • 36 Unit
  • 17 days
Product Description
China Sinotruk HOWO Cleaning Sewage Suction Tanker TruckThe products we can make are: truck, trailer, heavy truck, light truck, truck parts, agricultural machinery, agricultural machinery parts and so on.


Table 6 x4 sinotruk HOWO Dump Truck parameters
SINOTRUK HOWO 6X4 Dump Truck RHD/LHD
ModelZZ3257N3647Driving type: 6x4
CabinHW76lengthened cab, basic equipment: one sleeper, new-style seat, adjustablesafety steering wheel,EURonew type heating & ventilating system; with largesize LCD screen, Germany VDO instrument and electric control block, four pointsfloating air suspension(front coil spring, rear air spring) and shock absorbers forhighway vehicle, four points floating air spring suspension and shock absorbersfor off-highway vehicle; transverse stability installation, double locking safety beltand external sun shade for various mode.
EngineHorse power:336HP
Displacement:9.726 (L) liter
Max torque:1100Nm
Cylinder diameter / stoke:126mm/130mm
WD615.95E diesel engine, EURO 2emission standard. 6 cylinder in-line withwater cooling, turbo-charging & inter-cooling. 4 stroke direct injection dieselengine. Compression ratio: 17:1. Full load fuel consumption: 193g/kwh; Ratedrevolution: 2200RPM. Engine net weight: 850KG
Gear boxModel:HW15710
Speed:10drive, 2reverse. Max torque:1390NM
HW19710 SINOTRUK 10speed manual type transmission, the first shift gearratio: 14.28, small ratio grade difference and big first shift ratio produce anexcellent performance on start up Gear ratio:1=14.28, 2=10.62, 3=7, 4=5.87,5=4.38, 6=3.27, 7=2.43, 8=1.80, 9=1.34, 10=1, R1=13.91, R2=3.18
Front axle1xHF9, 9 ton axle load, rigid stub axle with double T- cross section and dish /drum brake.
Rear axle2 xHC16, HC16 heavy casting hub reduction drive axle with super loading ability,
excellent performance on start-up with heavy load and slope climbing.
Steering8098power steering, hydraulic steering with power assistance.
ClutchSingle-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air
assistance.
BrakeService brake: Dual circuit compressed air brake.
Parking brake: Spring energy, storage air-break brake.
Engine brake: Engine exhausted gas brake.
Tire & Rim11.00-20;12.00-20; 11.00R20; 12.00R20;
Overall dimension (mm)8214x2496x3450(LxWxH)
Dump Box Dimension (mm)5600/5400x2300X1500(LxWxH)
Total Mass (Kg)25,000
loading Weight (kg)12580
Maximum Speed (km/h)75
ColorWhite, red, yellow, green, blue
ModelZZ3257N3647Driving type: 6x4
CabinHW76lengthened cab, basic equipment: one sleeper, new-style seat, adjustablesafety steering wheel,EURonew type heating & ventilating system; with largesize LCD screen, Germany VDO instrument and electric control block, four pointsfloating air suspension(front coil spring, rear air spring) and shock absorbers forhighway vehicle, four points floating air spring suspension and shock absorbersfor off-highway vehicle; transverse stability installation, double locking safety beltand external sun shade for various mode.
EngineHorse power:336HP
Displacement:9.726 (L) liter
Max torque:1100Nm
Cylinder diameter / stoke:126mm/130mm
WD615.95E diesel engine, EURO 2emission standard. 6 cylinder in-line withwater cooling, turbo-charging & inter-cooling. 4 stroke direct injection dieselengine. Compression ratio: 17:1. Full load fuel consumption: 193g/kwh; Ratedrevolution: 2200RPM. Engine net weight: 850KG
Gear boxModel:HW15710
Speed:10drive, 2reverse. Max torque:1390NM
HW19710 SINOTRUK 10speed manual type transmission, the first shift gearratio: 14.28, small ratio grade difference and big first shift ratio produce anexcellent performance on start up Gear ratio:1=14.28, 2=10.62, 3=7, 4=5.87,5=4.38, 6=3.27, 7=2.43, 8=1.80, 9=1.34, 10=1, R1=13.91, R2=3.18
Front axle1xHF9, 9 ton axle load, rigid stub axle with double T- cross section and dish /drum brake.
Rear axle2 xHC16, HC16 heavy casting hub reduction drive axle with super loading ability,
excellent performance on start-up with heavy load and slope climbing.
Steering8098power steering, hydraulic steering with power assistance.
ClutchSingle-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air
assistance.
BrakeService brake: Dual circuit compressed air brake.
Parking brake: Spring energy, storage air-break brake.
Engine brake: Engine exhausted gas brake.
Tire & Rim11.00-20;12.00-20; 11.00R20; 12.00R20;
Overall dimension (mm)8214x2496x3450(LxWxH)
Dump Box Dimension (mm)5600/5400x2300X1500(LxWxH)
Total Mass (Kg)25,000
loading Weight (kg)12580
Maximum Speed (km/h)75
ColorWhite, red, yellow, green, blue


China Sinotruk HOWO Cleaning Sewage Suction Tanker Truck










Our Company
Jinan Quan Yu Economic and Trade Co., Ltd. is one of the main exporters of Chinese trucks which is authorized by Ministry of Commerce.
Our main products include full series products of CNHTC(HOWO, STR, Golden Prince,Man,etc. ), and spare parts for them. At the same time, we are always glad to provide professional suggestion for your orders, related technical support, and perfect after-sales services.
Staff of our company can provide the trucks meeting the requirement of customers at the best price. We have many years of experience in exporting trucks. We have not only the certificate and license of truck export and also strict quality management, fast and convenient channel of goods delivery, strict examination in quality and quantity of products, professional packing, professional and reliable loading goods, on-time delivery and competitive prices. If you want to buy theseproducts, please contact us.
We sincerely hope to cooperate with you to expand market in your country!
