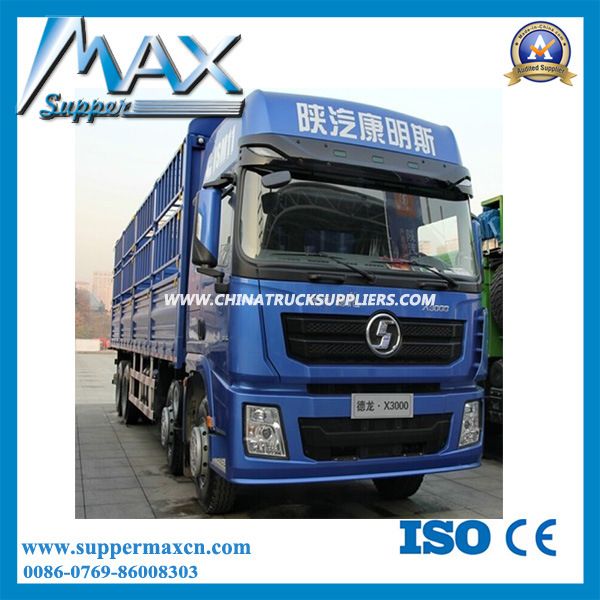

Shaanxi Shacman Delong X3000 345HP 8*4 12 Wheel Heavy Lorry Truck

Shaanxi Shacman Delong X3000 345hp 8*4 12 wheel heavy lorry truck
1. Model:SX5316CCY4V456
2. Type : 8X4 , X3000
3. Power : 345HP

The Specification sheet

BRAND & MODE		SX5316CCY4V456
Load Parameters
G. V. W. (kg)		31000
Curb weight, toal (kg)		12800
Loading capacity (kg)		18070
Drive form		8X4
Max. speed KM/h		91KM/h
Front axle capacity(KG)		5500
Rear axle capacity (KG)		13000
Leaf spring		1413/1413/12
Appr/Dep.:(°)		18/12
Dimension Parameters
Dimension(mm) (L*W*H)		12000x2490X3650
Cargo box	Dimension(L*W*H)	9500x2390X800
Wheel base(mm)		1800+4575+1400
Wheel trace(mm)		2011, 1860
Configuration Parameters
Cabin	Cabin type
	Seating capacity	2
Engine	Brand&Model	ISM11E4 345
	Max. horsepower	345hp
	Max. power	254KW
	Max.output torque	1699N·m
	Displacment(ml)	10800
	Combustion types	Diesel
Gearbox	Brand&Model	12JSD180TA
Fuel tank capacity		600L
Emission standard		EURO 4
