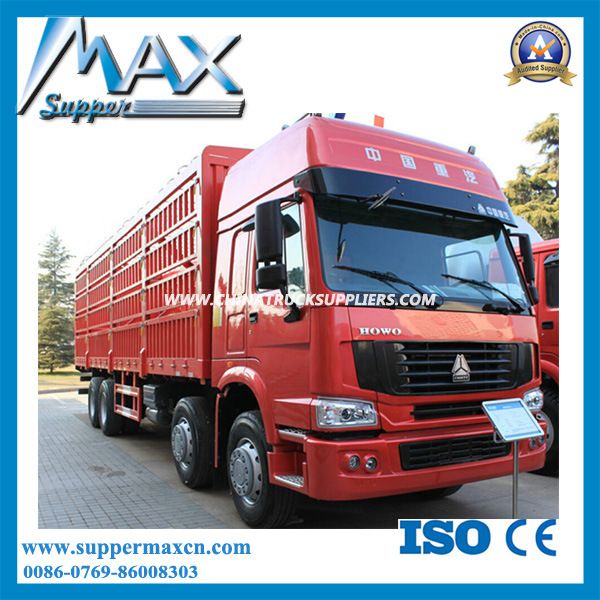

Cnhtc Sinotruk HOWO 8*4 Cargo Truck

SINOTRUK new Huanghe 8x4 van Cargo truck with high loading capacity
1.diesel engine,310hp,Euro4,diesel engine
2.body type:van,box,rack
3.quality certificate:CCC,SGS


Van Cargo truck ZZ5317CLXN4667CSpecifications

G. V. W. (kg)		31000
Curb weight, toal (kg)		14110
Loading capacity (kg)		16900
Drive form		8X4
Max. speed KM/h		90KM/h
Front axle capacity(KG)		6500/7000
Rear axle capacity (KG)		17500
Leaf spring		1413/1413/12,4/4/12
Appr/Dep.:(°)		16/14
Dimension Parameters
Dimension(mm) (L*W*H)		11984X2496X3940
Cargo box	Dimension(L*W*H)	9500x2326X800
Wheel base(mm)		1800+4600+1350mm
Wheel trace(mm)		2022/2022,2041/2041, 1830/1830mm
Configuration Parameters
Cabin	Cabin type
	Seating capacity	2
Engine	Brand&Model	WD615.95E
	Max. horsepower	336hp
	Max. power	247KW/1100-1600RPM
	Max.output torque	1350N·m
	Displacment(ml)	9726
	Combustion types	Diesel
Gearbox	Brand&Model	HW15710
Fuel tank capacity		520L
Emission standard		EURO 3
