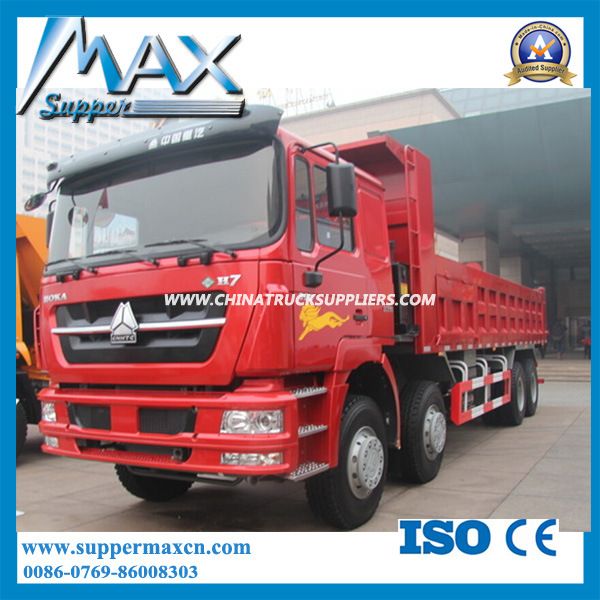

Sinotruk Tipper 8*4 Hoka H7 Dump Truck 380HP Hoka Dumper

Sinotruk Tipper 8*4 HOKA H7 Dump Truck 380HP Hoka Dumper High Quality
1. Dump truck
2. CCC&ISO certificate
3. Competitive price
4. Option:LHD Drive/ RHD Drive
(dump material: high tensile steel / Hardox)
(dump truck opting left hand drive or right hand drive)
( Opting 4x2, 4x4, 6x2, 6x4, 6x6, 8x4, 8x8 dump truck models)

Specification

Parameters for SINOTRUK HOKA H7 ZZ3313N4661E1L Dump Truck
Basic Information
Announcement Type	ZZ3313N4661E1L
Drive form	8*4
Wheelbase(mm)	8300+4600 + 1350mm
Vehicle dimensions (mm)	L11375mm
	W 2490mm
	H3500mm
Tread(mm)	F 2022mm
	R 1830mm
Vehicle weight (kg)	15470
Rated load(kg)	15400
Maximum total weight (kg)	31000
Approach angle	14 degrees
Departure angle	24 degrees
Cartons parameters(mm)	L 8300mm
	W 2300mm
	H 975mm
Engine
Engine type	SINOTRUK T12.38-50
Maximum output power	279kw
Cylinders	6
Fuel type	liquefied natural gas (LNG)
Cylinder arrangement form	inline
Displacement	11.596L
Emission Standards	Euro 4
Maximum Horsepower	380hp
Torque	1650Nm
Maximum torque speed	1200-1500RPM
Maximum power speed	2200RPM
Engine Type	In-line, four-stroke, turbocharged, water-cooled, electronically controlled gas system, spark ignition, lean
Transmission
Transmission type	SINOTRUK HW19712
Shift mode	Manual
Forward gears	12
Reverse gears	2
Tire
Tires	12
Tire size	11.00-20
Chassis
Rear axle permissible load	17500kg
Number of spring	11/11/12
Tank
Tankmaterial	Aluminum
Tankcapacity	400L
