50cbm 6 Compartments 3 Axle Aluminum Alloy Fuel Tanker

Specifications
Oil Tanker Semitrailer With 3 Axle 6 compartment

1 Applied carbon steel sheet Q235-A; Stainless steel; Aluminium alloy that in accordance with the international standard. Thickness is 5-10mm.
2 Apply the famous pump.
3 The main parts implements automatic welding, while the accessories apply carbon dioxide welding to ensure the tank in good performance.
4 Sub crossbeam apply rectangle steel sheet that thickness more than 5mm, stick out in one time.
5 Fire extinguisher replaced on the back of the truck for the emergency.



Product Description

Main Dimensions
Overall Length	13000mm
Overall Width	2500mm
Overall Height	3975mm
Tare Weight	7950 kg
Curb Payload	32050 kg
Loading Capacity	50m3

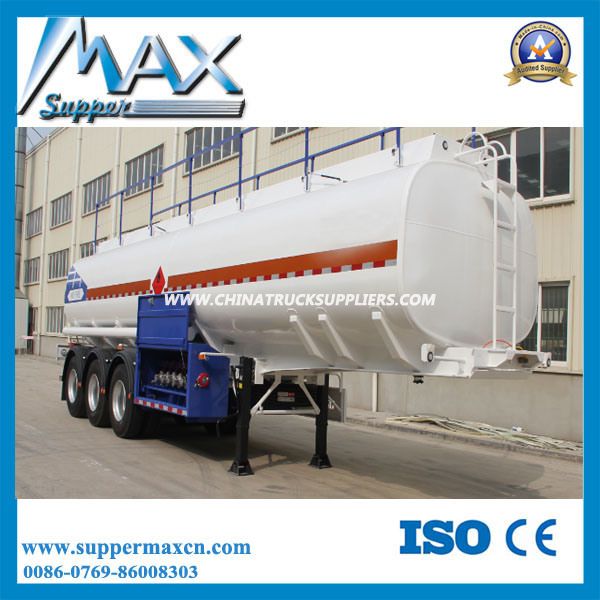

Photo only for reference, final product can be made according to exact requirements
Tank Body
Shape			Elliptical
Total Volume(m3)			50 CBM
Tanker Body Material			6mm aluminum 5182
End plate Material			7mm aluminum 5182
Baffles Material			Aluminum
Manhole of Baffles			500mm
Manhole cover			6 aluminum manhole covers, 500mm 6 sets with 7 breather valves, fitted with high flow vapor vent and sensing probe
Bottom Valve			6 set of API Pneumatic Bottom Valve,Pneumatic control
Top Safety Rail			1 Set
Walkway			Aluminum Non-slip walkways
Discharging valve			6 set 100mm discharging valves
Vapor Return System			Aluminum line through barrel with section outboard of shell with vapor adapt-or and dust cover to be provided
No.of Compartment			6
Discharging Pipe			4"rubber hose, 2 pc, 6m long
Anti-static wire loop			1
Chassis
Main Beams		Full Aluminum frame including outrigger and cross members. Special design I beam, connected by bolts and nuts with tanker body, removable from tanker body for separate transportation;
Overturn Protection		Full length structural extrusion each side on top
Axle		3 axles
		BPW13 Ton
Suspension		Air bag suspension
Landing Gear		JOST brand C205 Two-speed, manual operating, heavy duty landing gear
King Pin		JOST brand 2" bolt-in king pin
Suspension		German design heavy duty BPW air bag suspension
Pneumatic Braking System		WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.
Wheel rim		11.75-22.5 aluminum wheel rim, 7 pieces including one spare
Tire		385/65R22.5 tubeless tire with one spare tire, 7 pieces
Painting		Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint
Ladder		Aluminum Ladder at rear
Lights &Sound		Reverse light and buzz to be installed
Wiring		24V,7 wire system
Accessories		One standard tool box
		Stickers ass required
		Fire Extinguisher 2 no.
