Skeletal Type 8 Car Carrier Semi Trailer for Sale

  • Skeletal Type 8 Car Carrier Semi Trailer for Sale
  • USD 18000.24 /Unit
  • 1 Unit
  • 29 Unit
  • 21 days
Product Description
6 cars carrier trailer
Manufacturer enclosed car trailer, car carrying trailer, car carrier trailer with side wall
Main Qualities:
1:Main frame adopts HG60(δb=60kg/mm2) steel, high box shape, high strength, not easy to deformation, good ability for concentrated loading.
2:The connecting between unit module and unit module is multiple plates. The advantage as follows:
a. High connecting strength, not easy to break;
b. Convenient combine, shorter combine time.
A. Advantage:
1). Hydraulic raising system both front and end part;
2). The whole upper floor could be down and up by hydraulic cylinder;
3). Strong posts to support the trailer;
4). Front part of upper floor could be down and up seperately;
5). Simple is best.

B. Specifications:
DIMENSIONS
Overall Length14300 mm
Overall Width2500 mm
Overall Height3990 mm
Wheelbase8000+1300 mm
SPECIFICATION
Main StructureThe upper platform has front & rear section. The front section platform's front & rear part and the rear section platform's rear part use hydraulic cylinder to lift. The rear section platform's rear part use steel wire rope pulley block cylinder, there are 2 control valves separately control the cylinder's right & left side lifting;The upper & under platform's rear parts will equip with stretchable car crawler board for carrying long-size cars;The goose neck part will equip with 1set mobilizable board, it can be kept in the middle of frame when not in use;The rear car crawler board's angle is 9°;There are 2 spare tire carriers at the right side; 2 ladder at the left side;The runway and ladder use 3mm perforated plate;The side of upper platform equip with protection steel rope.
Axle2units FUWA brand 13Tordinary axle(8 holes)
SuspensionFUWA brand2-axle suspension, Americandesign
Leaf Spring4pcs leaf spring
King Pin1unit FUWA brand 2" bolted typekingpinwith self-lock bolt
Wheel Rim5units 8.25-22.5 rim, including 1unit spare rim
Tire5unitsTriangle brand 285/70R19.5tire, including 1unit spare tire
Landing Gear25Tsingle-actionlanding gear
Hydraulic Cylinder3sets
Overflow Valve1set
Oil Pump70#
Pneumatic Braking SystemWith WABCO brand ABS system, 4S/2M;
Two units of WABCO RE 4 relay valve; four units of T30/30 spring brake chamber; two units of T30 brake chamber, two units of reliable local brand 45L air tank; two units of reliable local brand standard coppery air-connector.
Electrical System1unit JAEGER POWAY, 24V 7-pin ISO 1185 socket; LEDlights system(LED rear round type lights & side lights). 1setDAFA(brand) 6-core standard Cable.
PaintingSand blasting processing clean rust;
One coat of anticorrosive primer;
Two coats of finish urethane paint;
Color upon request by client
AccessoryOne box with a set of standard trailer tool(include tire wrench inside);
Tool box is made by aluminium alloy material(3mm thickness) with 2-door opening and an ear with hole for padlock purposes;
2) tire stopper: 32units;
3) 2.5M belt: 32sets;
8kg fire extinguisher: 1unit.
C. Functions
1. This series car semi-trailers are mainly used in the car/ suv transportation.
2. The rated capacity varies widely from 30Tons to 100Tons, and the dimension different from 7000mm to 25000mm, we can manufacture it according to your needs.
3. The axles can be Fuwa / Bpw with different tonnages by your need with price differences.
4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc.
5. The side wall height and side wall can be skeleton or enclosed type.
6. The floor can be double plates or single plates with hydraulic lifting system.


D. FAQ
1. Can I make a initial order of this type trailer to test the quality?
Of course yes, my friend, and our MOQ is 1 unit. And my friend, the more units, the lower price
2. What's the delivery time and can you lower the price?
It depends on the quantity. Usually it is within 25 days after the receipt of deposit. And we will catch the earliest vessel for you.
3. Can I customize the trailer?
Yes, the design will be made according to your suggestions.
4. What's the payment terms?
30% by T/T as deposit and balance by T/T before delivery. Or by 100% irrevocable L/C at sight.
5. How do you ensure its quality?
There will be a warranty offered to you, 12 months for main beam.



WHYyoutrustandchooseus?

1.Completeproductionline,fromtrailerDesigntoDelivery.

2.ISO9001:2008andCCCqualitycertificate.

3.Use100%famousbrandsparepartsinChinaforourproducts.

4.OEM/ODMservice.Justtellusyouridea,ourR&Dteamisstandingby.

5.WearetrustedbytheclientsfromAfrica,Australia,SouthAmerica,Indonesiaandsoon.

6.Weaccept100%inspection,welcometoourfactoryatanytime.

If you have cooperation intention, then please send inquiries to us right now!
Product Images

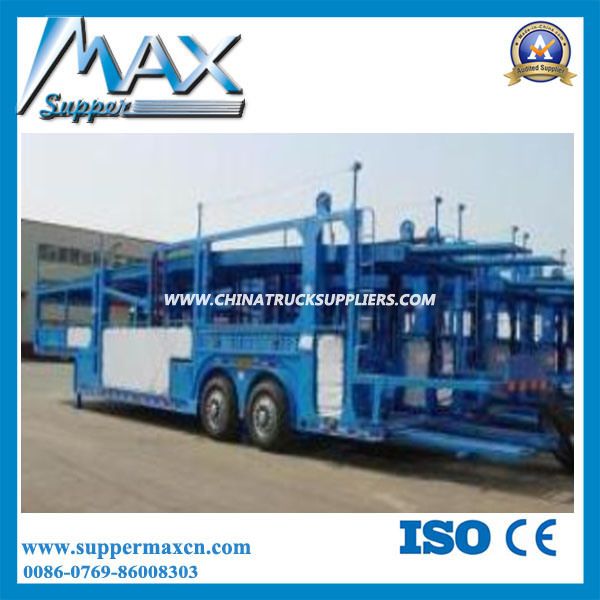

Skeletal Type 8 Car Carrier Semi Trailer for Sale Images 1
