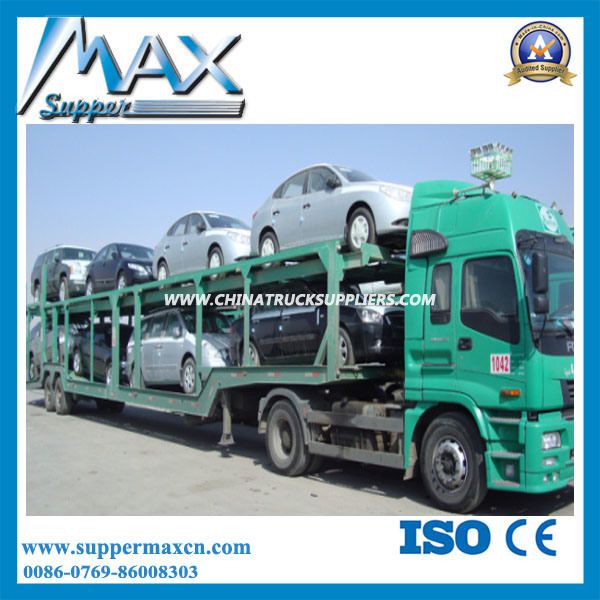

3axles Cheap Car Trailer, Car Carrier Trailer in China

3axles cheap car trailer, car carrier trailer in china
Main Qualities:
1:Main frame adopts HG60(δb=60kg/mm2) steel, high box shape, high strength, not easy to deformation, good ability for concentrated loading.
2:The connecting between unit module and unit module is multiple plates. The advantage as follows:
a. High connecting strength, not easy to break;
b. Convenient combine, shorter combine time.

Model Number	LAT9389TJZG
Name	Car transport semi trailer
Rated Load	35000 kg
Tare Weight	12000 kg
Wheel base	6900+1310 (mm)
Tyre Specifications	12R22.5
No. Of the Tyres	8
Axle Brand	FUWA
No. Of the Axles	3
Axle-load	13000 kg
King Pin	50#/90#
Landing Leg	2
Pieces of leaf-spring	10
Suspension	Steel leaf spring suspension
Departure Angle	14.5
Front/Rear Overhang	2120 mm
Outside Dimensions (LxWxH)	14200x2500X3800 (mm)
Material of the Main Beam	Q345B
Brake System	Dual line braking system /ABS
Brake Air Chamber	double chamber
Electrical	24V 7 ways(7 wire harness)
Color	Any color will be available
Accessory	One tooling box with a set of standard trailer tool
Guarantee term	1 year

WHYyoutrustandchooseus?

1.Completeproductionline,fromtrailerDesigntoDelivery.

2.ISO9001:2008andCCCqualitycertificate.

3.Use100%famousbrandsparepartsinChinaforourproducts.

4.OEM/ODMservice.Justtellusyouridea,ourR&Dteamisstandingby.

5.WearetrustedbytheclientsfromAfrica,Australia,SouthAmerica,Indonesiaandsoon.

6.Weaccept100%inspection,welcometoourfactoryatanytime.
