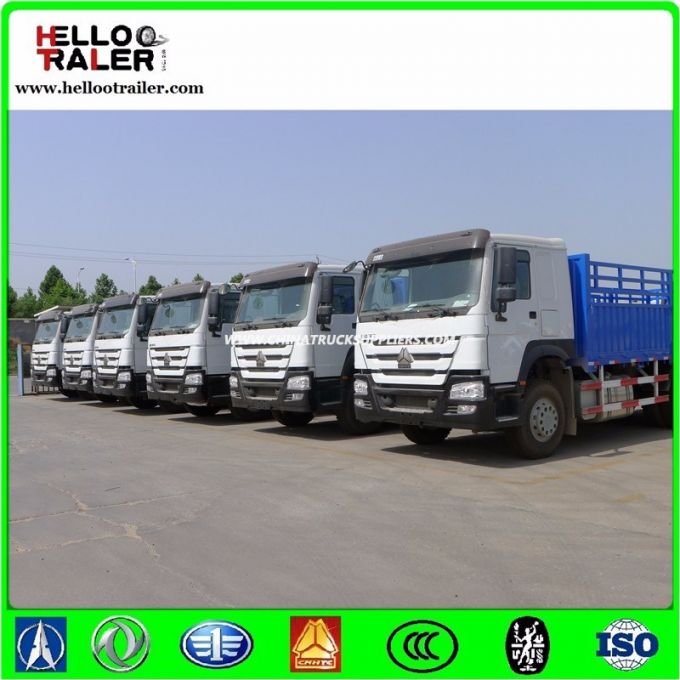

Sinotruk 8X4 Cargo Truck HOWO 40t Heavy Duty Cargo Lorry Truck
- USD 33500.00 /Unit
- 1 Unit
- 27 Unit
- 24 days
Sinotruk 8X4 Cargo truck HOWO 40t Heavy duty Cargo Truck
| Product | HOWO 8x4 cargo truck | Model | ZZ1317M3861W | |
| Dimension | Overall dimension (mm) L*W*H | 11182*2496*3115 | ||
| Cargo body dimension (mm) L*W*H | 8480*2326*800 | |||
| Cargo body capacity (m3) | 15.8 | |||
| Wheel base (mm) | 1800+3800+1350 | |||
| Wheel tread (front/rear, mm) | 2022/1830 | |||
| Overhang (front/rear, mm) | 1500/2732 | |||
| Approach/departure angle (°) | 16/15 | |||
| Weight | Gross vehicle weight(kg) | 13170 (chassis 10910) | ||
| Pay load (kg) | 17700 | |||
| Overall weight (kg) | 31000 | |||
| Max. speed (km/h) | 102 | |||
| Chassis | Number of axles | 4 | ||
| Tire | 12.00R20 | |||
| Number of tires | 12+1 | |||
| Cab | Model | HW 76 lengthened, 2 seats, 1 bed | ||
| Air conditioner | optional | |||
| Engine | Type | In-line, 6 cylinder, water-cooling, turbo-charging, EFI, diesel | ||
| Model | WD615.87 | |||
| Displacement (ml) | 9726 | |||
| Rated power (hp/rpm) | 290/2200 | |||
| Peak torque (N.m/rpm) | ||||
| Emission standard | Euro 2 | |||
| Clutch | Model | |||
| Type | Single, dry plate | |||
| Gear box | Model | |||
| Type | manual | |||
| Forward gears | ||||
| Ratio | ||||
| Steering | Model | ZF 8098 | ||
| Type | Integral power steering | |||
| Front axle | Model | HF 7 hub | ||
| Loading capacity | 7000 | |||
| Rear axle | Model | HW 1697 | ||
| Loading capacity | 2x13000 | |||
| Ratio | ||||
| Braking system | Service brake | Dual circuit compressed air brake | ||
| Parking brake (emergency brake) | Spring energy, compressed air operating on rear wheels | |||
| Auxiliary brake | Engine exhaust brake | |||
| Option | ABS | |||
| Suspension | Front | Type | Non-independent | |
| Number of leaf spring | ||||
| Rear | Type | Non-independent | ||
| Number of leaf spring | ||||
1.Bulk cargo transportation
2 By ro-ro ship transportation
Ship time :30 days after get the 30% deposit
Packaging:Nude or acoording to customers' demand
Our Service:
1. Quality Inspection of Chengli Truck:
Before truck delivery, we can supply inspection certificate issued by 3rd party, such as BV, Intertek, etc.
2. Spare Parts of Chengli Truck:
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. only charge cost price for customer convenience.
3. Warranty of Chengli Truck:
One year's free warranty for major 3 components, includingEngine,Gearbox,Axles.
4. After Sales Service of Chengli Truck:
Email & Phone call tracking for each truck on timely manners, also possible engineer
maintenace in customer's Country.
Our main products:
1. Dump Truck /Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck /Fire Truck /Fire Vehicle /Fire Engine
3. Truck with crane /Truck Mounted Crane
4. LPG Tank Truck Trailer/Oil Tank Truck /Fuel Tanker Truck
5. Water Truck /Water Tank Truck /Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck /Insulated truck/ Refrigeration truck
8. Fecal suction truck /Sewage Suction Truck,
9. Cement Powder Tank truck/ Bulk Cement Truck
10. High-altitude operation truck,
11. Self-loading Garbage Truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer (flat bed trailer /skeleton trailer /dump semi trailer /side wall trailer /low bed trailer /van container trailer /warehouse trailer, etc. )
Aimee
Sales Manager
TEL/FAX:+86-0531-8601 8959
Mobile// :+86-150 6915 3172
Facebook:Aimee Liang
linked in: Aimee Liang
If you are interested in our trucks, please feel free to contact me at any time.
Welcome to vist our factory!
-
