3axles with 90# Traction Carry Container Other Cargo Trailer

3axles carry container or other cargo with 90# or 50# traction
cargo trailer trailers

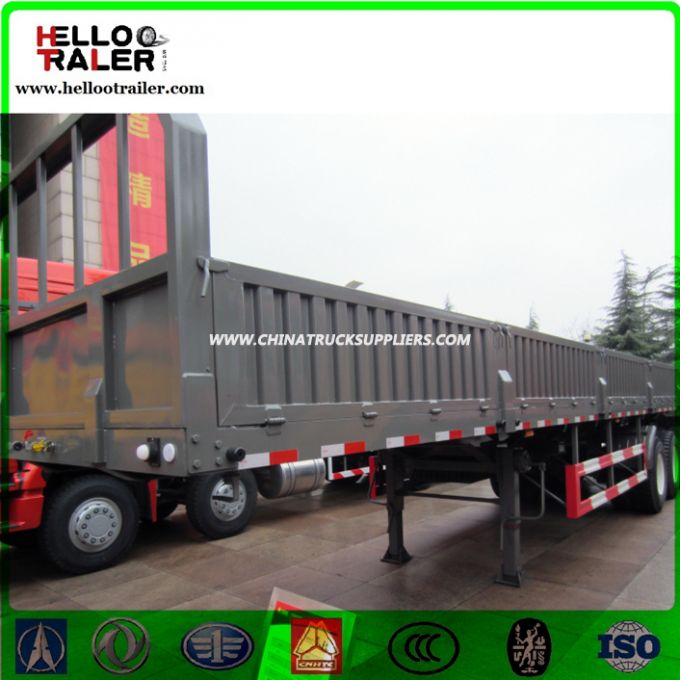

3 Axle cargo trailer for Container Semi Trailer

Side wall semi trailer

Model	side wall semi trailer
Function	2x 20ft and 1x40ft container or other stuff
Overall dimension	12500x 2500 x1600mm or customized
Sidewall	600mm height
Loading weight	40000kg
Main beam?	Carbon steel Q345B.The height 500 mm, upper plate 14mm,down plate?16mm,middle plate 8mm.
Side beam	16mm channel steel
Traction pin	2" (50mm) or 3.5''(90mm) optional
Land gear	Standard 28ton
Axle	13ton *3 axle Fuwa brand
Spring leaf	90mm*13mm*10pcs or 100mm*12mm*12pcs
suspension	Mechanical suspension /Air suspension customized
Rim	9.00-22.5 12pcs
Tire	Tubeless tire12R22.5/ Steel radial tire11.00R20 or 315/80r22.5
Tire quantity	8 units
platform thickness	3 mm
valve	WABCO RE 6relay valve
Brake Chamber	T30/30+T30 Spring brake chamber
Tool box	1 unit 1m*0.5m*0.5m
Spare wheel carrier	2 units
Marker lamp	LED type
Voltage	24V
Receptacle	7ways (7 wire harness)
Painting	Complete Chassis sand blasting to clean rust, 1coat of anticorrosive?prime, 2coats of final paint

Company informationShandong hellootrailer co.,ltd is one of the qualified manufacturers of various trailers, like low-bed semi-trailer, flatbed semi-trailer, cargo trailer, etc.Integrated production, scientific research&development and professional sales teams, all those advantagescould provide full service of trailers, semitrailers, tractor head, Dump Truck, engineering machinery and trailer parts.Contact: Richard Li
