China 3 Axles Low Bed Trailer Low Bed Semi Trailer Hydraulic Ladder
- USD 9200.00 /Unit
- 1 Unit
- 69 Unit
- 28 days
Product Description
Product Description
Packaging & Shipping

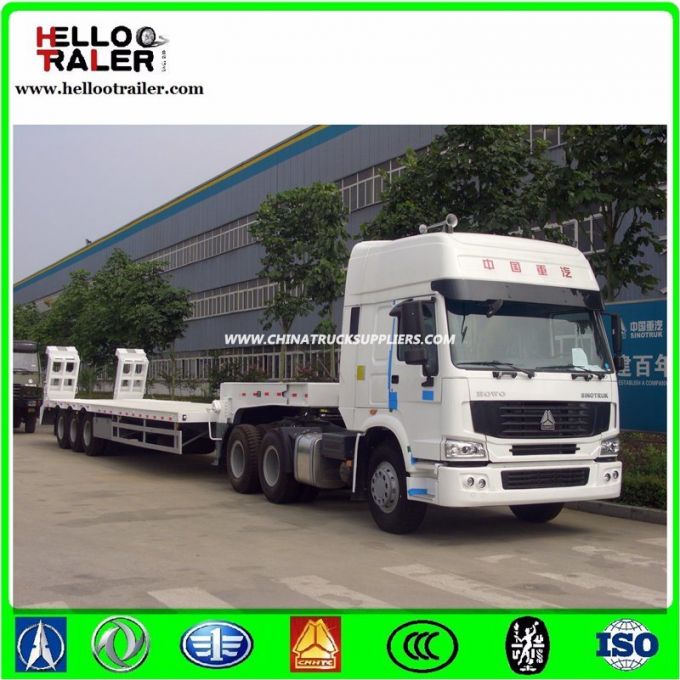

Chinese tri-axles60T Low bed semi trailer
Model number | SCD trailer |
| Total size | 13,000x3,000x1,650 mm |
| Working size | 9,000x3,000x800 mm |
| Curb weight | 7,000 kg |
| Loading weight | 50,000-60,000 kg |
| Departure angle | 16 |
| Axle | 3* 13ton axle |
| Axle number | Three |
| Wheelbase | 8,580+1,310+1,310 mm |
| Suspension system | leaf spring suspension |
| Steel spring | 10/10/10 leaf spring suspension |
| Main beam | Beam height 500 mm Upper plate 16 mm Down plate 18 mm middle plate 10 mm |
Platform plate | 3 mm diamond plate |
| Tire type and quantity | Radial tire 11.00R20 x 12 units |
| Ladder | with ladder |
| Tration pin | 2" or 3.5" |
| Landing gear | Standard 28T |
| Brake system | Dual line braking system |
| Brake air chamber | Six big dual chamber |
| Spare wheel bracket | 2 pieces |
| Painting | One coat anti-rust prime, two coats final paint |
| Light | Tail lamp with turn singal, brake light& reflector, side lamp, etc |
Packaging & ShippingNude and wax, shipped in bulk or RO-RO.
China 60 ton low bed semi trailer
12monthsfor3keyparts(engine,transmission,axle).
Trackingservicetime:lifelong.
Third-partyserviceforoverseasclient.
UsethestepsDescription
Partssupplyontime
