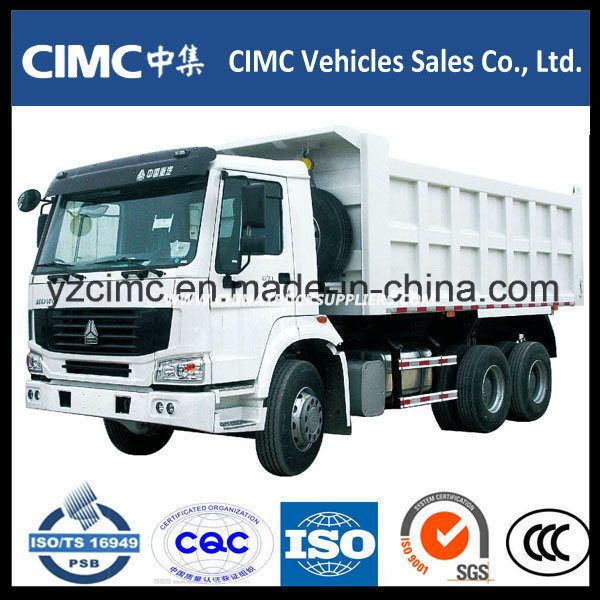

HOWO 6X4 336HP Dump Truck 18cbm

Main Characters of HOWO Truck
(Cargo truck, Dump Truck, Tractor Truck and sepcial truck)1, VOLVO Core chassis technology
2,comprehensive products range
3, Good feedback from clients
4, SINOTRUK Engine(brand Hangfa, base on WEICHAI technology)
5, SINOTRUK Transsmisson (FAST is optional)
6,Chassis produced by SINOTRUK, cargo body or semi-trailer produced by CIMC

Please contact us for full specifications and prices.

2.Options
(1)Driving style: 4x2, 6x4,8x4
(2)Cab: HW70, HW76, HW79
No sleeper, one sleeper, two sleepers
No air condition, one air condition
(3)Engine: 266hp, 290hp, 336hp, 371hp
Emission: EUROII, EUROIII, EUROIV, EUROV
(4)Transmission: HW13710, HW15710, HW19710
(5)ABS
(6)Saddle: 90#(3.5''), 50#(2'')

3.CNHTC
(1)Generally introduction:
ChinaNationalHeavy DutyTruck GroupCo., Ltd has nearly 60 years' history since 1958, where the first heavy duty truck was produced in China. CNHTC introduced VOLVO,STEYRandMAN technologyin 1983 and 2009 year separately, ahead of other truck suppliers at home.

The sales volume broke through 100,000 units early in 2007, becominga listed company and one of top five truck suppliers worldwide.

(2)Products:
Brand SINOTRUK:HOWO A7, HOWO, HOVA, SWZ, STEYR, HOKA, Yellow River, etc
Series:cargo truck, dump truck, tractor truck, special truck, bus, etc
Driving type:RHD, LHD
Engine:with STEYR, MAN technology
Emission:EURO II, III, IV, V

(3)Advanced process line:
Automotive Body Stamping line: 3 pcs
Cab welding production line: 8 pcs
Cab painting line: 12 pcs
Assembly line: 9 pcs

(4)Overseas offices:
Establish about 480 sales&service offices in 6 districts worldwide:south east Asia, middle east, south Africa, north Africa, south America, part of Russia in middle Asia

(5)Exportation situation:
about 35,000 units of trucks were exported abroad in 2013

Cabin	ZZ3257N3647A
	HW76cab.OriginalluxuryVolvocabwithaberthandanA/C.
VehicleMainDimensions	L×W×H(mm)			8150×2500×3170
	Wheeltrack(mm)			1830
	Wheelbase(front/rear)(mm)			3625+1350
	Approach/Departureangle(°)			19/26
Weight	TareWeight(t)			12.42t
	LoadingCapacity(t)			40t
	Frontaxlesloadingcapacity(t)			1×9t
	Rearaxlesloadingcapacity(t)			33t
Max.DrivingSpeed(km/h)				85
Engine	Brand			SINOTRUK
	Model			WD615.69
	Type			6-cylinderin-linewithwatercooling; 4-strokedirectinjection; turbo-chargingandinter-cooling
	HorsePower(HP)			336HP
	EmissionStandard			EuroII
FrontAxle	HF9drumaxle
RearAxle	HC16designoverallcaststeelaxle.
Gearbox	HW15710.10blocktransmission,TenForward&Tworeverse.
Clutch	Reinforceddiaphragmspringclutch,diameter430mm
SteeringGear	ZF8098,originalmadeinGerman.Powersteering,hydraulicsteeringwithpowerassistance.
FuelTank(L)	300L
Tire	Elevenunitsof12.00-20Nylontires.(option:12.00R20)
Brakes	Servicebrake:dualcircuitcompressedairbrake Parkingbrake:springenergy,compressedairoperatingonrearwheels Auxiliarybrake:engineexhaustvalvebrake
DumpBody
Thickness		Side	6mminhightensilestrengthsteelQ345B
		Front	6mminhightensilestrengthsteelQ345B
		Bottom	8mminhightensilestrengthsteelQ345B
DumpBodySize		L×W×H	5600mm×2300mm×1500mm
TippingHydraulics		TippingType	Middletippingtype
		TippingSystem	CompletesetofLocalbrandTtypehydraulicssystem

This chassis model, with scientific structure, excellent performance, is used for refitting fire truck, wrecker truck, oil field truck, crane truck, concrete pumper and etc. This chassis model can satisfy the need of refitting of various kinds of special vehicles.This model is the proven product of SINOTRUK, which features reliable structure, great loading capacity, strong power, reliable performance and wide acceptance. This model can meet the requirements of severe environment like construction site and mining zone. This model can satisfy your need of short distance transportation of mining rock and soil as well as engineering construction.

This model is the proven product of SINOTRUK, which features reliable structure, great loading capacity, excellent power, reliable performance. This model can meet the requirements of different road conditions. This model can satisfy your need of long distance highway transportation.

Special Truck Chassis
This vehicle, designed as a HOWO special working truck, can be used for modified autocrane, Fire Fighting Truck, concrete pump truck, road-block removal truck, desert truck, oil field working truck and other special purpose vehicles, and features excellent dynamic property, reliable stability, and international-level economic efficiency, comfort, safety and reliability.
