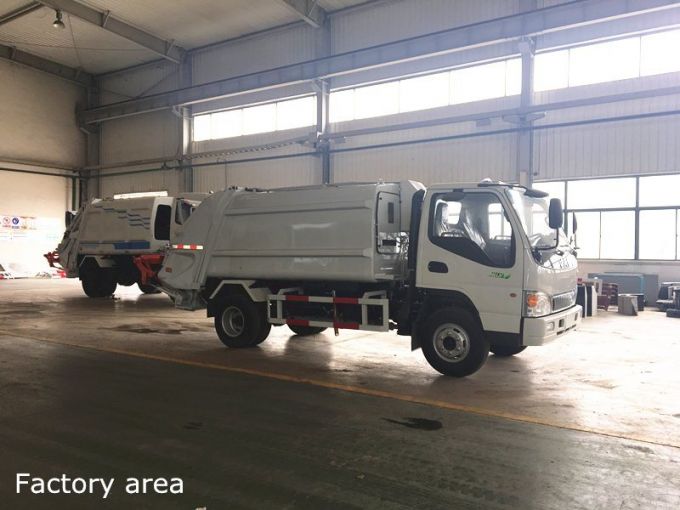

5t Refuse Collection Rubbish Compator Truck

Overall Length (mm)	7510-8310
Overall Width (mm)	2490-2500
Overall Height (mm)	2990-3050
Rated Mass (Kg)	8040-9470
Max.Loading Mass(Kg)	2090-3155
Max. Speed(Km/H)	90
Model	Cummins/Yuchai
Manufacturer	Cummins/Yuchai
Power (HP/KW)	160-210
Fuel Consumption(100Km/L)	23.9-26.8
Fuel	Diesel oil
Exhaust Standard	Euro 3/4/5
Manufacturer	JAC/ISUZU/Dongfeng/Foton/FAW
Steering	Integral hydraulic power steering
Fuel tank	240L
Tyre	9.00-20/9.00R20
Front/Rear Overhang (mm)	1335-1400/2210-2535
Wheel base (mm)	3800/3900
Wheel Track(mm)	1880/1860
Valve Manufacturer	ShinMaywa (Japan)
Tank Capacity(m3)	8-10(5T)
PLC	imported
Tipper Device	Option-Hanging barrel type (240L/660L/1100L) and shovel board

Note: We can supply different kinds of Garbage Trucks,Water Trucks,swppers and customized upper units with desgin requiements in especial.Our truck chassis brands are from JAC,Dongfeng,HOWO,HINO,ISUZU,FOTON(top 1 level in China market)






We,JiangsuYuedaSpecialVehicleCo.,Ltd.WhoisoneofthebiggestmanufacturerofcompressiongarbagetrucksinChina,andalso2008BeijingOlympic,Paralympic Games,2010ShanghaiWorldExpo.,2016HangzhouG20Summitdesignated
environmentalsanitationvehiclesupplier.Andwe also supplyagriculture machines,bus,UAV(unmanned aerial vehicle),
YuedaVehicleisabranchvehicleindustryofYuedaGroup(ChinaTop130,ownsfamousbrandsincludingKIA car,
Mahindra Jinma tractor,Aunde textile,Carrefour supermarket,Costa coffee,Triumph bra,Diaverum health system), cooperateswithFujiHeavyIndustries(WorldTop500),introducedthemostadvancedtechnologyfromit.

Yueda Vehicle has 3 serials, more than 50 models, the main products are compression garbage truck(rear & side mounted), garbage transit trucks, road cleaning trucks, water trucks, high-pressure washing trucks, food waste garbage trucks, garbage stations, and so on.

ThetotalinvestmentofYuedavehicleisRMB356million,coversanareaofnearly200,000squaremeters,152acresofland
planning,spareplant135acres,thetotalinvestmentisRMB180millionforfirstphaseproject.
