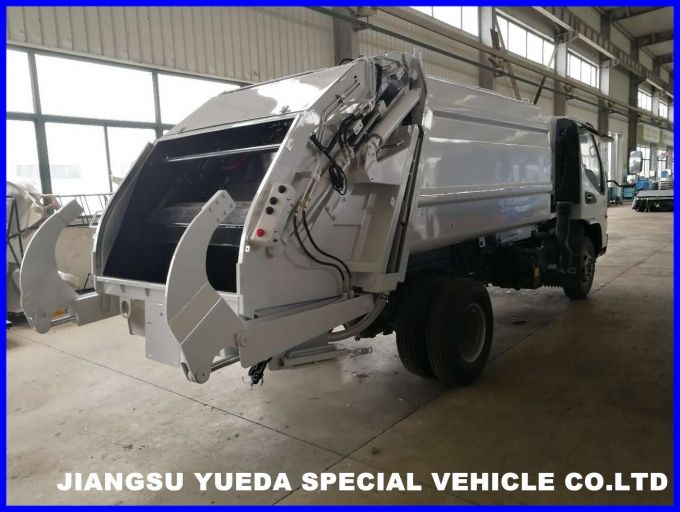

Customized 8-10 M3 Compactor Garbage Truck Refuse Collector Special Vehicle

Quick guide for our company:
Jiangsu Yueda Special Vehicle Co., Ltd., Jiangsu Yueda Group and Japan's Fuji Heavy Industries Ltd. for technical cooperation, we can produce top quality vehicle body(Upper unit) and control system, key parts multi-way valves and PLC are imported from Japan.
We havestamping, welding, assembly, painting, testing and other advanced technology equipment.



Main Specification:

Technical parameter of YD5121ZYSDFE5
Mode		YD5121ZYSDFE5
Dimension		7510×2490×2990
Body capacity	(m3)	8-10
Chassis model		DFL1120B21
Chassis brand		DONGFENG
Engine model		ISD180 50
Displacement/power	(kw)	4500/132
Emssion		CHINA V
Rated weight	(kg)	4260
Max weight	(kg)	12495
Wheelbase	(mm)	3800
Max speed	(km/h)	98
Loading time	(s)	12-14
Discharging time	(s)	<23
Hydraulic pressure	(Mpa)	19.6
Fuel type		Diesel
No of leaf spring		8/10+8,7/9+6
Tyre size		9.00-20,9.00R205
