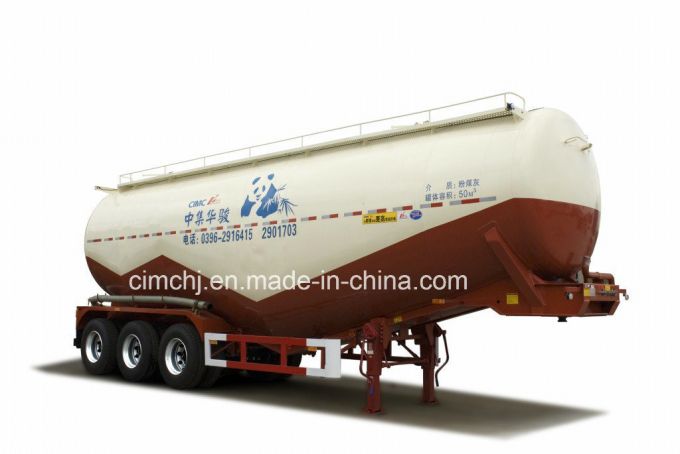

Panda W Type Bulk Cement Tanker Semi-Trailer

Production description:

Type	bulk cement semi-trailer
MODEL	ZCZ9404GFLHJF
Overall Dimensions	11090,10940,10090 * 2500 * 3950(mm)
LandingLegSetting	2,500mm
Wheelspan	5350+1310+1310(mm)
AxleSpacing	1310mm
KingPinSetting	1250mm

Tank:

LoadingCapacity	40T(69M3)
Tankshell	Q235,6mmthickness,andQ3454mm
Dishedends	Q235,6mmthickness
Pipematerial	Carbonsteel
DischargingHoseDiameter	4"
Dischargingvalve	4"butterflyvalve
DischargingHoseLength	7.2m
Hosequickcoupling	4"femalequickcoupling.
Dischargingcapacity	≥1m3/min
Workingpressure	0.2Mpa
Testpressure	0.3Mpa
Manhole	3
MAX.HorizontalDischargingDistance	5,000mm
MAX.VerticalDischargingDistance	15,000mm

RUNNINGGEAR:

Suspension	Undermounttri-axlesuspensionwithequalizer;10-LeafSpring
Axle	Squareaxle,150x150mm.(FUWA16Tcapacity)
Brake	Duallinepneumaticbrakesystem.
ParkingBrake	Type30/30springbrakesystemontwoaxles
Rim	8.5-20,10holessteelDiscwheel,12Pcs.
Tire	12.00R20STEELRADIUSTYRE,12Pcs
KingPin	3.5"
LANDINGLEG	Twospeedmanualoperationtypewithsandshoe.

PNEUMATICSYSTEM:

Electromotor	4102MadeinChina,(44Kw,2000r/Min)
AirCompressor	12m3/minMadeinChina,Mountedatthefrontoftrailer

ELECTRICAL:

Voltage	24Volt
Receptacle	7way
Light	FrontMarkerLamp:White
SideMarkerLamp	Amber
RearLamp	Red
TurnSignalLamp	Amber

STRUCTURALWEIGHTRATING:

TareWeight	81000KG,89000KG
PayLoad	31900KG,31100KG
G.V.W.R.

PAINTING:

Painting

Asperclient'srequirement

Note:allthedetailsnotmentionedaboveshouldcomplywithChineseregulations.
