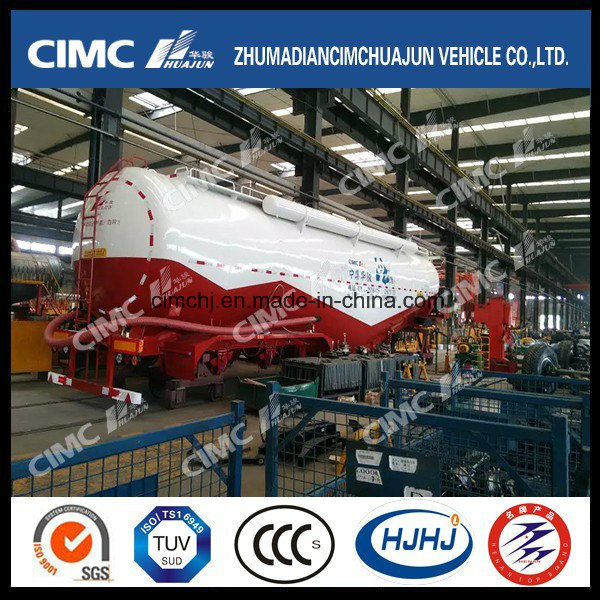

Cimc Hj Hot Sales W Type Cement Tank Trailer

Production description:

Type	bulk cement semi-trailer
MODEL	ZCZ9404GFLHJF
Overall Dimensions	11090,10940,10090 * 2500 * 3950(mm)
Landing Leg Setting	2,500 mm
Wheelspan	5350+1310+1310(mm)
Axle Spacing	1310mm
King Pin Setting	1250mm

Tank:

Loading Capacity	40T(69M3)
Tank shell	Q235,6mm thickness, and Q345 4mm
Dished ends	Q235,6mm thickness
Pipe material	Carbon steel
Discharging Hose Diameter	4"
Discharging valve	4" butterfly valve
Discharging Hose Length	7.2m
Hose quick coupling	4" female quick coupling.
Discharging capacity	≥1m3/min
Working pressure	0.2 Mpa
Test pressure	0.3 Mpa
Manhole	3
MAX. Horizontal Discharging Distance	5,000 mm
MAX. Vertical Discharging Distance	15,000 mm

RUNNING GEAR:

Suspension	Undermount tri-axle suspension with equalizer;10-Leaf Spring
Axle	Square axle,150x150mm.(FUWA 16T capacity)
Brake	Dual line pneumatic brake system.
Parking Brake	Type 30/30 spring brake system on two axles
Rim	8.5-20,10 holes steel Disc wheel, 12Pcs.
Tire	12.00R20 STEEL RADIUS TYRE, 12 Pcs
King Pin	3.5"
LANDING LEG	Two speed manual operation type with sand shoe.

PNEUMATIC SYSTEM:

Electromotor	4102 Made in China, (44Kw, 2000r/Min)
Air Compressor	12m3/min Made in China,Mounted at the front of trailer

ELECTRICAL:

Voltage	24 Volt
Receptacle	7 way
Light	Front Marker Lamp : White
Side Marker Lamp	Amber
Rear Lamp	Red
Turn Signal Lamp	Amber

STRUCTURAL WEIGHT RATING:

Tare Weight	81000KG,89000KG
Pay Load	31900KG,31100KG
G.V.W.R.

PAINTING:

Painting

As per client's requirement

Note : all the details not mentioned above should comply with Chinese regulations.
