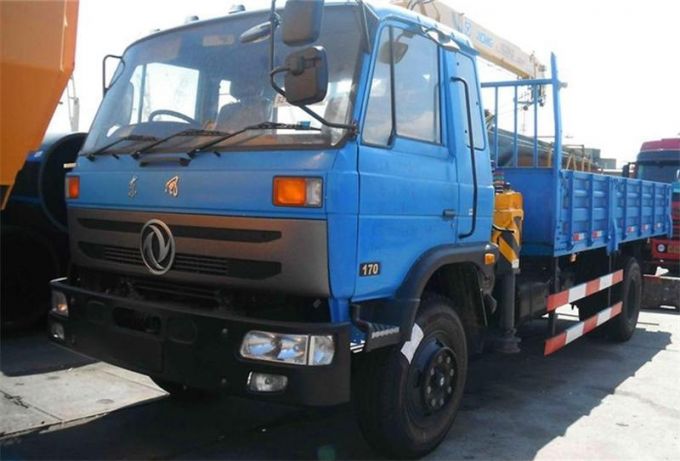

LHD/Rhd Truck with Small Lift Carry Cranes (XZJ5110JSQD)

LHD/RHD Truck withSmall Lift Carry Cranes(XZJ5110JSQD)
Truck with crane is large tonnage and high-end crane product developed by our company for strategic transfer, participating in international competition and recover for large tonnage crawler crane market share.

This crane uses crawler as its carrier, lattice type boom, features less ground pressure, travel with a load, high lifting height and heavy lifting load, tower attachment possible for adjacent to high buildings, sideway-super-lift equipment provides strong lifting and flexible maneuverability.

The German PAT computer-controlled system ensures safety for crane operation.

The pump controlled variable displacement hydraulic system works together with the electronic proportional control system, high efficiency, energy saving and precise control.

The power drive parts from well-known international company is environmental protection and reliable.

The Technology Parameters of Truck
Production name:	truck with crane	Dimension :	8000×2495×3350(mm)
Chassis model:	EQ1110GLJ3	Carriage dimension:	4700×2294×600(mm)
Total weight:	11695(Kg)	Approach/departure:	31/22(°)
Payload weight:	5000(Kg)	Front/rear overhang:	1250/2050(mm)
Curb weight:	6500 (Kg)	Max. speed:	90(km/h)
Engine	ISDe160 30	Power (kw)	118
Engine producer	Dongfeng Cummins engine co., LTD
Emission standard:	GB3847-2005,GB17691-2005 EURO III
Axle:	2	Front wheel tread:	1900 (mm)
Wheelbase:	4700,4500	Rear wheel tread:	1800(mm)
Tyre numbers:	6	Tyre specification:	9.00-20
fuel:	diesel	Spring number:	8/11+8
displacement(ml):	4500	Passengers:	3
Remarks	With Anti-corrosion spray wax

Technology parameters of crane (straight arm crane)
Item	Unit	SQ3.2SK2Q
Max. Lifting Weight	Kg	3200
Max. Torque	T.M	6,72
Max. Working range	m	7.56
Rotation Angle	°	360 full rotation
Power	kw	14
Maximum flow of hydraulic system	L/min	25
Rated pressure of hydraulic system	MPa	20
Fuel volume	L	30
Curb Weight	Kg	1229
Installation	mm	850
Outrigger	mm	1989-3329
Lifting capacity/Working range	Kg/m	3200/2.10
		1800/3.36
		900/5.46
		500/7.56
