/10ton Double Drum Vibratory Road Roller Xd102
- Price can be negotiated
- 1 Unit
- 35 Unit
- 29 days
Product Description

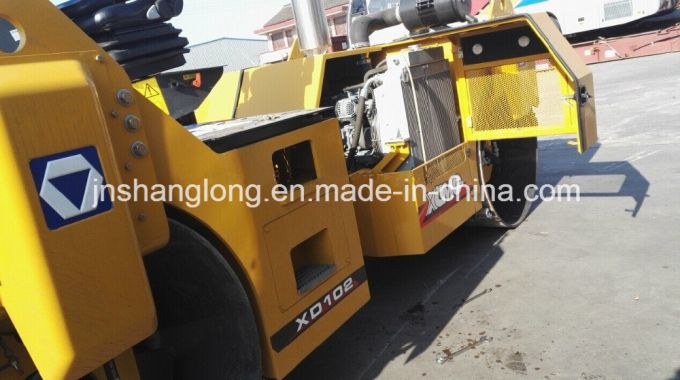

10Ton double drum vibratory road roller XD102
| Basic parameter | ||
| Static linear load | N/cm | 292/292 |
| Vibration frequency | Hz | 48/45 |
| Nominal amplitude | mm | 0.4/0.8 |
| Centrifugal force | kN | 60/120 |
| Drum size | mm | 1150*1750 |
| Driving performance parameters | ||
| Speed | km/h | 0~9.5 |
| Theoretical grade ability | % | 30 |
| Minimum turning radius | mm | 4065/5815 |
| Steering angle | ± ° | 38 |
| Swing angle | ±° | 8 |
| Basic parameter | ||
| Operating weight | Kg | 10000 |
| load on front drum | Kg | 5000 |
| Load on rear wheels | Kg | 5000 |
| Overall size (LxWxH) | mm | 4890*1970*3070 |
| Engine | ||
| Engine model | DEUTZ BF4M2012-10T3R | |
| Type | Water cooled, pressurized | |
| Rated speed | r/min | 2300 |
| Rated power | Kw | 74.9 |
