14ton Single Drum Vibratory Sheep Foot Road Roller (Xs143j)

14ton Single Drum Vibratory Removable Sheep Foot Road Roller (Xs143j)

1. Main Purposes of road construction machinery.
Can be widely used in highways, airports, embankment fill, harbors, dams, railways, mines and other compaction depth and efficient construction.
2. Main parameters of road construction machinery.
1). Machinery single drum vibratory roller
2). imported open gear pump and motor;
3). Without Air conditioner;
4). Shanghai Diesel Engine 114 series water-cooled engine 92kw EURO II;
5). Ovevrall size: 6010x2340x3200 mm
6). Operating weight: 14000 Kg
7). Static linear load: 322 N/cm
8). Vibration frequency(High/Low): 28 Hz
9). Engine model: SC5D125G2B1
10). Rated power: 92 Kw
11). Engine oil consumption: 230 g/kW. H
More details please check the table.

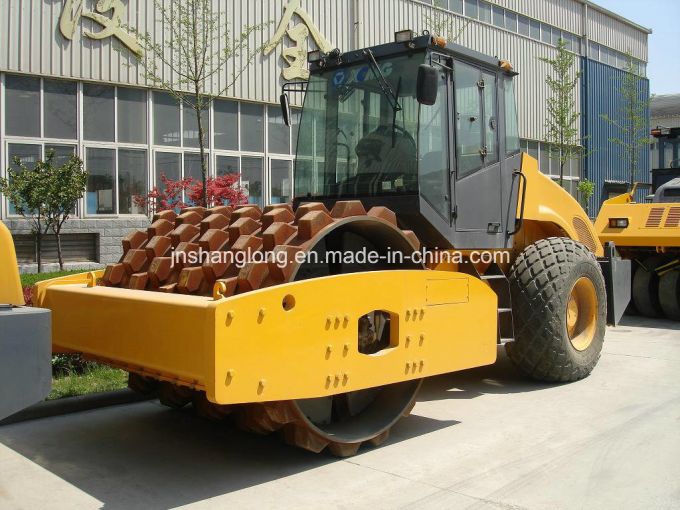

3. Visual appearance of road construction machinery.

4. More construction equipment of us:
* Construciton crane sector: Truck Crane / All Terrain Crane / Crawler Crane / Tower Crane/ Truck Mounted Crane / Aerial work machinery
* Road machinery sector: Paver / Mixer station / Milling machine / Mixing plant/Cold recycling / Mixing station / Asphalt pavement / Road roller / Grader
* Agricultural equipment machinery: Mini-excavator / Backhoe loader
* Sanitation construction machinery: Detachable container garbage collector / Compression refuse collector
Expect your inquiry at any time for any product.

Type	Unit	XS143J	XS163J	XS183J
Working mass	Kg	14000	16000	18000
Distribution mass on front	kg	7000	7700	9000
Static linear load	N/cm	322	362	422
Driving Speed	km/h
I speed		2.7	2.3	2.3
II speed		4.8	4.5	4.5
III speed		10.5	9.4	9.4
Theoretical gradeability	%	30	30	30
Min, outer turning radius	mm	6800	6500	6500
Steering angle		± 30 °	± 33 °	± 33 °
Swinging angle		± 11 °	± 11 °	± 11 °
Vibrating frequency	Hz	28	28	28
Nominal amplitude(high/low)	mm	1.9/0.95	1.9/0.95	1.9/0.95
Centrifugal force (high/low amp)	KN	274/137	290/145	320/160
Engine model		SHANGCHAI D4114	SHANGCHAI D6114	SHANGCHAI D6114
Type		Water-cooling, pressurized
Max. power	KW	92@2200r/min	115@1800r/min	115@1800r/min
Hydraulic tank capacity	L	170	170	170
Fuel tank capacity	L	180	240	240
