Double-Drum Vibratory Road Roller 12ton Road Compactor

Double-drum Vibratory Road Roller Road Compactor

1--Main parameters ofroad compactor.
1-----Working performance parameters

Static linear load: 297/297 N/cm
Vibration frequency: 50/67 Hz
Nominal amplitude: 0.3/0.8 mm
Centrifugal force: 103/159 Kn
Drum Diameter: 1300 mm
Drum Width: 2130 mm

2-----Driving performance parametersSpeed: 0-12 Km/h
Theoretical grade ability: 42 %
Min. turning radius (Inside/Ouside): 4470/6600 mm3-----Basic parameter

Operating weight: 12300 Kg
Overall size: 5140x2290x3070 mm
Weight on rear wheel: 6150 Kg
Weight on front drum: 6150 Kg4-----Engine

Engine model: DEUTZ BF04M2012C
Rated speed: 2300 r/min
Rated power: 98 Kw

2--Main Purposes of road compactor:

Can be widely used in highways, airports, embankment fill, harbors, dams, railways, mines and other compaction depth and efficient construction.

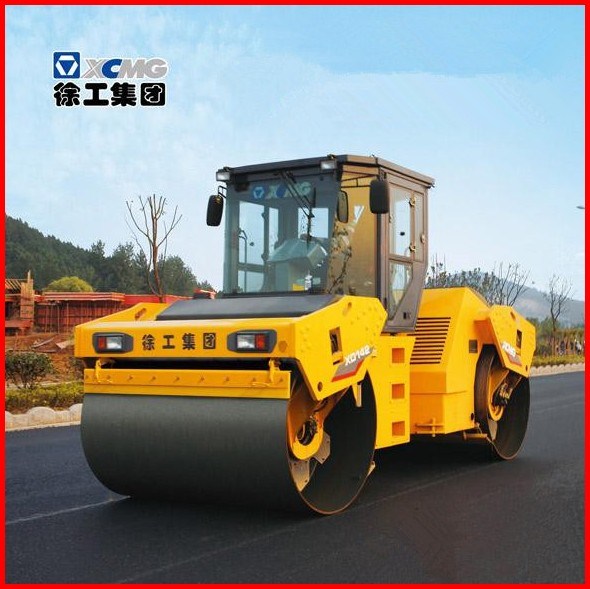

3.Pictures.

4. More construction equipmentof us:

* Construciton crane sector: Truck Crane / All Terrain Crane / Crawler Crane / Tower Crane/ Truck Mounted Crane / Aerial work machinery

* Road machinery sector: Paver / Mixer station / Milling machine / Mixing plant/Cold recycling / Mixing station / Asphalt pavement / Road roller / Grader

* Agricultural equipment machinery: Mini-excavator / Backhoe loader

* Sanitation construction machinery: Detachable container garbage collector / Compression refuse collector

Expect your inquiry at any time for any product.

Basic parameter
Static linear load	N/cm	283/283
Vibration frequency	Hz	45 / 48
Nominal amplitude	mm	0.4/0.75
Centrifugal force	kN	85/140
Drum width	mm	2130
Minimum ground clearance	mm	340
Crab-walking distance	mm	160
Wheel base	mm	3700
Driving performance parameters
Speed	km/h	0~10
Theoretical grade ability	%	30
Minimum turning radius	mm	4800/6930
Steering angle	± °	35
Swing angle	±°	8
Basic parameter
Operating weight	Kg	12300
load on front drum	Kg	6150
Load on rear wheels	Kg	6150
Overall size (LxWxH)	mm	5700x2420x3020
Engine
Engine model	DEUTZ BF4M2012-13T3R/6
Type	Water cooled, pressurized
Rated speed	r/min	2100
Rated power	Kw	92
Rated oil wear	g.kw/h	205
Water tank capacity	L	2×450
Fuel tank capacity	L	210
