China Famous Digging Machine 0.1m3 Small Excavator 6ton

Operating weight: 5960 (kg)
Standard bucket capacity: 0.09-0.23 (m³)
Engine model: 4TNV94L
Rated power/speed: 53.8/2150 (kw/rpm)
Travel speed: 4.2/2.2 (km/h)
Swing speed: 11 (r/min)
Max. gradeability: 30°
Ground pressure: 32.5 (kPa)
Max.Bucket digging force: 48.3 (kN)
Max.arm crowd force: 32.5 (kN)
Max. digging height: 5630 mm
Max. dumping height: 3945mm
Max. digging depth: 3830 mm
Max. vertical wall digging depth: 2680 mm
Max. digging reach: 6130 mm
Min. swing radius: 2460 mm
Max.dozer lifting height: 390 mm
Max.dozer cutting depth: 560 mm

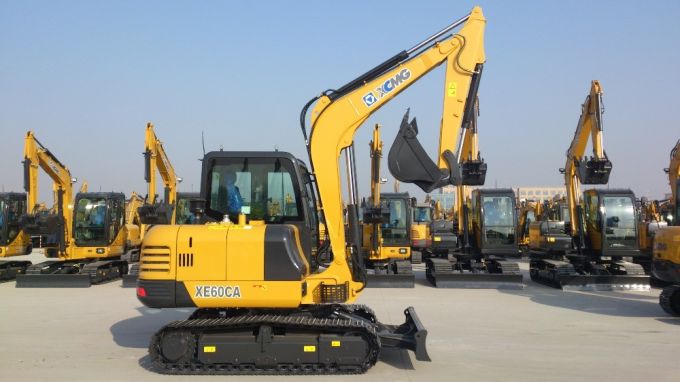

XE60CA
Model	Unit	XE60CA
Operating weight	kg	5960
Standard bucket capacity	m³	0.09-0.23
Engine
Engine model		4TNV94L
Rated power/speed	kw/rpm	53.8/2150
Max. torque/speed	N.m	255/1800
Displacement	L	3.059
Main performance
Travel speed	km/h	4.2/2.2
Swing speed	r/min	11
Max. gradeability	/	30°
Ground pressure	kPa	32.5
Max.Bucket digging force	kN	48.3
Max.arm crowd force	kN	32.5
Hydraulic system
Main pump		Toshiba
Rate flow of main pump	L/min	138/143
Max pressure of prime relief valve	MPa	24.5
Max pressure of travel system	MPa	22
Max pressure of swing system	MPa	21
Max pressure of pilot system	MPa	3.5
Oil capacity
Fuel tank capacity	L	110
Hydraulic tank capacity	L	85
Engine lubrication	L	12
Overall size
Overall size	mm	5960x1920x2585
Overall width of upperstructure	mm	1780
Track length	mm	2540
Overall width of undercarriage	mm	1920
crawer width	mm	400
Dozer black(width/height)	mm	1920×340
Tumbler distance	mm	1990
Crawer gauge	mm	1550
Clearance under counterweight	mm	710
Ground clearance	mm	385
Min.tail swing radius	mm	1660
Working range
Max. digging height	mm	5630
Max. dumping height	mm	3945
Max. digging depth	mm	3830
Max. vertical wall digging depth	mm	2680
Max. digging reach	mm	6130
Min. swing radius	mm	2460
Max.dozer lifting height	mm	390
Max.dozer cutting depth	mm	560
