/Hydraulic Walking Operation Simple Small Wheel Type Excavator
- Price can be negotiated
- 1 Unit
- 83 Unit
- 17 days
Product Description
| ENGINE | |
| Emission Standard | Tier 3/ Stage III |
| Make | YUCHAI |
| Model | YC4D115Z |
| Power /Rotation speed | 85kw(115HP)@2200rpm |
| Number of cylinder | 4 |
| DRIVING SYSTEM | |
| Maximum Travel speed | 19/32km/h |
| Tire model | 9.00-20 |
| Number of tires | 8 |
| Driving type | Hydraulic controlling |
| Steering type | Steering wheel |
| TRANSMISSION | |
| Type | Free shift(Stepless gear box) |
| BRAKE SYSTEM | |
| Driving brake(Front axle) | Air break+oil brake |
| Driving brake(Rear axle) | Air break+oil brake |
| Parking brake | Disc break |
| Emergency brake | Foot brake |
| PERFORMANCE PARAMETER | |
| Standard Bucket capacity | 0.6m³ |
| Swing speed | 12rpm |
| Maximum Grade ability | 25° |
| Maximum Bucket digging force | 91KN |
| Maximum Arm digging force | 55KN |
| Hydraulic system pressure | 32Mpa |
| Machine weight | 13500kg |
| Fuel tank | 252L |
| Hydraulic oil tank | 160L |
| Engine oil capacity | 11L |
| MACHINE SIZE | |
| Overall dimension (L*W*H) | 7520mm*2570mm*3425mm |
| Height of cabin | 3015mm |
| Wheel base | 2600mm |
| Tread | 1944mm |
| Minimum Ground clearance | 350mm |
| Swing radius at tail | 2332mm |
| WORKING RANGE | |
| Maximum Digging height | 8930mm |
| Maximum Dumping height | 6520mm |
| Maximum Digging depth | 4750mm |
| Maximum Vertical digging depth | 4200mm |
| Maximum Digging radius | 8000mm |
| Minimum swing radius | 2445mm |
| Maximum lifting height of dozer blade | 400mm |
| Maximum cutting depth of dozer blade | 100mm |

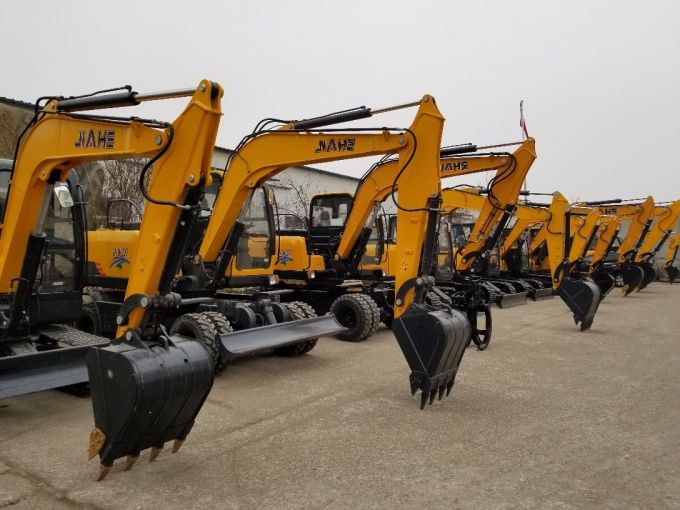

Product Images
-
