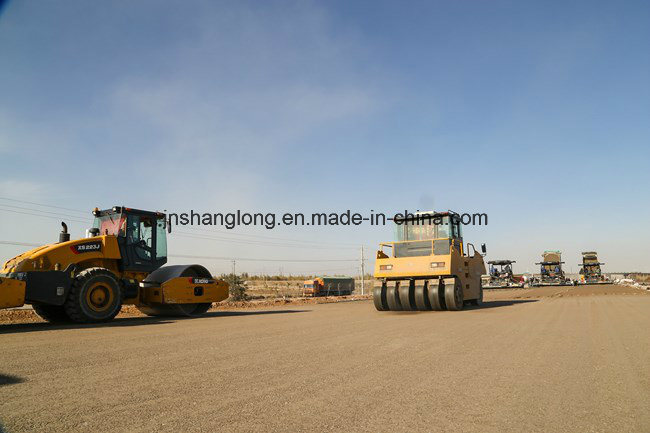

China XP263 26ton Tire Road Roller (front 4/ rear 5)

China XP263 26ton Tire Road Roller (front 4/ rear 5)

1.There are two steering wheels, two seats, and two independent control systems for operations. The speed change adopts electric control handle and two-speed gear shift design, which can respectively meet the requirements of compaction and site transfer, together with flexible electronic control operation and comfortable handfeel, greatly reduces the labor intensity of the drivers.
2.The brake system includes emergency brake and hand brake. The emergency brake adopts air over oil shoe brake system, ensuring the safety, durability and reliability of the machine. The hand brake adopts diaphragm spring brake, it supplements the foot brake and is restricted by the foot brake, featuring safety and reliability.
3.The engine cover is easy to open. Adopt the cover plate structure which can be lifted, which facilitates the inspection, adjustment, and maintenance of the battery, water pump system, and chains.

Basic parameter
Min. operate weight (including cab)		kg	15000
Add weight		kg	10550
Water weight		kg	650
Max. operate weight		Kg	26300
Overall size		mm	4925*2530*3370
Wheelbase		mm	3840
Fuel tank		L	170
Water tank		L	650
Tyrespecification		13/80-20
Amount		Front 4 Rear 5
Cabin with air conditioned		With
Traction performance
Speed	I	Km/h	0~8
	II	Km/h	0~17
Gradeability in theory		%	20
Min. turning radius		mm	7620
Working performance
Compaction width		mm	2360
Ground pressure			200~470
Min ground clearance		mm	300
Engine
Engine model		SHANGCHAI Engine, SC7H160.2G3
Rated power		Kw	118
Rated speed		r/min	1800
Fuel consumption		g/kW·h	≤235
