Low Price Xs142j 14 Ton Single Drum Vibratory Road Roller

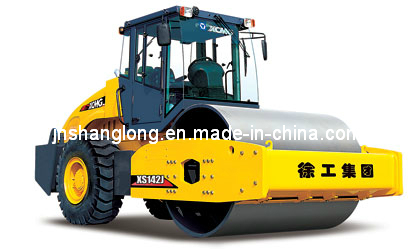

X-CMG XS142J 14 ton single drum vibratory Road Roller

XS142J/XS162J/XS182J vibratory compactor is a kind of heavy duty self-propelled vibratory compactor. It can effectively compact various soil layers and rock fill, and can be applied to the constructions of modern freeways, airports, embankment fill, ports, dams, railways, mines, etc.
Performance featureThe spacious and bright cab features wide view and comfort.Simple operationThe humanity instrument panel has a reasonable layout, all the control buttons are clear at a glance.Adopt the gearbox with synchronizer, which is easy to operate.The special compactor drive axle has the function of preventing slipping, featuring strong traction.Reliable and durable hydraulic systemThe standard configuration includes imported open gear pump and motor. The optional configuration includes closed hydraulic vibration system, imported piston pump, motor (16t, 18t). All those have a long service life, supplying stable start-oscillation and oscillation stop and high compacting quality.Energy-saving and environmental friendly power

Model	Unit	XS142J
Operating weight	kg	14000
Weight on front drum	kg	7000
Static linear pressure	N/cm	322
Speed range	km/h
Speed I		2.7
Speed II		4.8
Speed III		10.5
Theoretical gradeability	%	30
Min. external turning radius	mm	6800
Steering angle	°	±30
Oscillating angle	°	±11
Vibration frequency	Hz	28
Nominal amplitude (high/low)	mm	1.9/0.95
Excitation force (high/low amplitude)	kN	274/137
Engine model		SC5D125G2B1
Type	Water cooled, pressurized	Water cooled, pressurized
Max. power	kW	92@2200r/min
Engine oil consumption	g/kW.h	230
Hydraulic oil tank capacity	L	170
Fuel tank capacity	L	180
