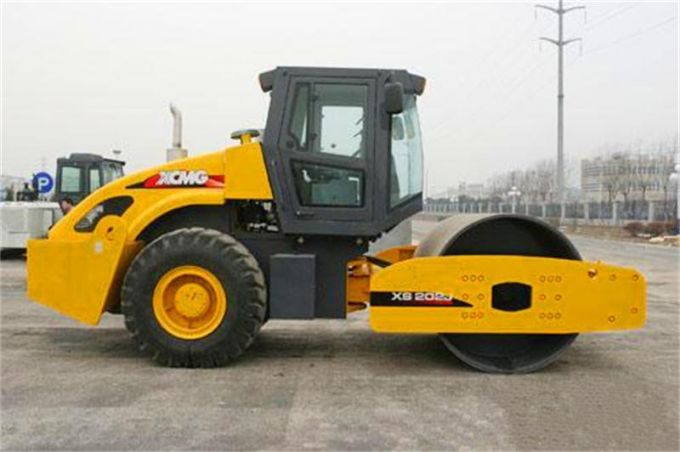

New Single Drum Vibratory Road Roller (XS202)

New Single Drum Vibratory Road Roller (XS202)

XS202 Hydraulic Single Drum Vibratory road roller:
Hydraulic vibratory rollers are suitable for compaction of non-cohesive materials such as gravel, crushed stone, sand-macadam mixture, sandy soil and rock filling etc. On base course, sub-base and embankment fill construction, which are ideal equipment for high-class highway, railway, airport, harbors, dams and large-scale industrial ground.

Future of XS202 road roller:
Powerful Cummins diesel engine; Hydrostatic wheel & drum travel drive operated by a single lever at two range infinitely variable speeds.
Adjustable frequency and amplitude vibration device with imported vibrating pump and motor.
Parking brake hydraulically mounted in central input of the driving axle with oil-cutoff braking for reliable safety.
Circle arc glasses cabin with air conditioner(option) and curve engine hood for unique streamline shape appearance.
Engine mounted with backward power output and turnover engine hood allow easy access to the main hydraulic components.

Main specification of 20tons road roller:

Model	Unit	XS142J
Operating weight	kg	14000
Weight on front drum	kg	7000
Static linear pressure	N/cm	322
Speed range	km/h
Speed I		2.7
Speed II		4.8
Speed III		10.5
Theoretical gradeability	%	30
Min. external turning radius	mm	6800
Steering angle	°	±30
Oscillating angle	°	±11
Vibration frequency	Hz	28
Nominal amplitude (high/low)	mm	1.9/0.95
Excitation force (high/low amplitude)	kN	274/137
Engine model		Shanghai Diesel Engine D4114
Type	Water cooled, pressurized	Water cooled, pressurized
Max. power	kW	92@2200r/min
Engine oil consumption	g/kW.h	230
Hydraulic oil tank capacity	L	170
Fuel tank capacity	L	180

Other hydraulic sing drum viabration road roller model:
XS122 Single Drum Vibration Road Roller
XS122E Single Drum Vibration Road Roller
XS143 Single Drum Vibration Road Roller
XS163 Single Drum Vibration Road Roller
XS183 Single Drum Vibration Road Roller
XS183E Single Drum Vibration Road Roller
XS203 Single Drum Vibration Road Roller
XS203E Single Drum Vibration Road Roller
XS223 Single Drum Vibration Road Roller
XS223E Single Drum Vibration Road Roller
XS263 Single Drum Vibration Road Roller
XS303 Single Drum Vibration Road Roller.

More information, please contact Ady at any time!

mobile/+86 18653113471
