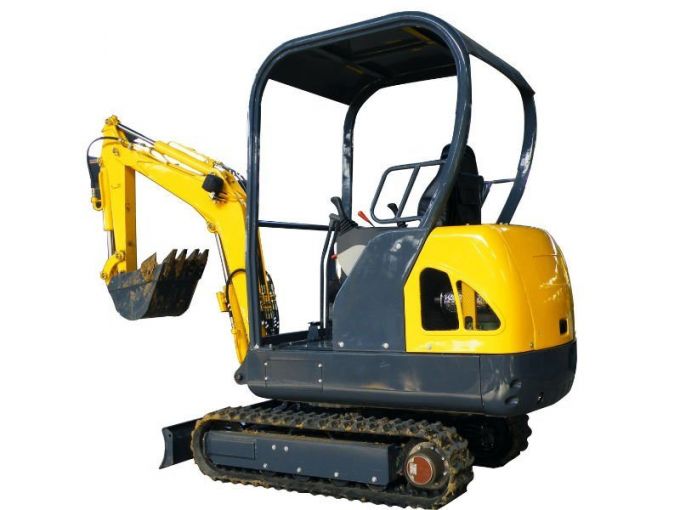

0.05 Cubic Meter Bucket 1.8ton Mini Excavator with Swing Boom

1---Basic parameter

1). Dimensions (LxWxH): 3825X1080x2240 mm
2). Weight: 1840 kg
3). Bucket Capacity: 0.05 m3
4). Bucket Width: 426 mm
5). Bucket Digging Force: 14 kN
6). Arm Digging Force: 9 kN
7). Ground Pressure: 28 KPa
8). Grade Ability: 58 %

2---Working performance parameters

1). Max. Digging Depth: 2116 mm
2). Max. Digging Height: 3406 mm
3). Max. Digging Radius: 3705 mm
4). Max. Discharging Height: 2265 mm
5). Min. Ground Clearance: 153 mm
6). Min. Swing Radius: 1618/1225 mm

3---Engine

1). Engine model: Perkins 403D-11
2). Rated power: 14.7/2200 kw/rpm
3). Max. Torque: 66.8/1900 Nm/rpm
4). Idling Speed: 1000 rpm
5). Engine Displacement 1.131 L
6). Cylinder No. - bore/Stroke: 3-77X81mm
7). Engine Oil Capacity: 3.4~4.4 L
8). Fuel Tank Capacity: 27 L
9). Fuel Consumption Rate: 260 g /kw. H

4--More construction machinery.

1). Construciton crane sector: Truck Crane / All Terrain Crane / Crawler Crane / Tower Crane/ Truck Mounted Crane / Aerial work machinery
2). Road machinery sector: Paver / Mixer station / Milling machine / Mixing plant/Cold recycling / Mixing station / Asphalt pavement / Road roller / Grader
3). Agricultural equipment machinery: Mini-excavator / Backhoe loader
4). Sanitation construction machinery: Detachable container garbage collector / Compression refuse collector.

Expect your inquiry at any time for any products.

Working performance parameters
Weight	kg	1840
Bucket Capacity	m3	0.05
Bucket Width	mm	426
Bucket Digging Force	kN	14
Arm Digging Force	kN	9
Ground Pressure	KPa	28
Grade Ability	%	58
Max. Digging Depth	mm	2116
Max. Digging Height	mm	3406
Max. Digging Radius	mm	3705
Max. Discharging Height	mm	2265
Min. Ground Clearance	mm	153
Min. Swing Radius	mm	1618/1225
Dimensions ( LxWxH )	mm	3825x1080x2240
Engine
Engine model	Perkins 403D
Rated power	Kw	14.7/2200kw/rpm
Max. Torque	Nm/rpm	66.8/1900
Idling Speed	rpm	1000
Engine Displacement	L	1.131
Engine Oil Capacity	L	3.4~4.4
Fuel Tank Capacity	L	27
Fuel Consumption Rate	g /kw.h	260 or less
Hydraulic pump	model	Nachi
