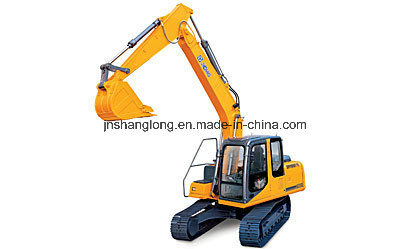

/Xe150d Hydraulic Excavator
- USD 15000.50 /Unit
- 1 Unit
- 29 Unit
- 27 days
Product Description
| Model | XE150D | ||
| Bucket capacity | m3 | 0.6 | |
| Standard bucket width | mm | 1,000 | |
| Operation weight | kg | 14,400 | |
| Dimension (in transportation) | Overall length | mm | 7,801 |
| Overall width | mm | 2,590 | |
| Overall height | mm | 2,850 | |
| Min. clearance | mm | 478 | |
| Engine | Model | 4BTAA3.9 | |
| Total displacement | L | 3.927 | |
| Rated output power | KW/rpm | 85.4/2200 | |
| Digging performance | Max. digging height | mm | 8,641 |
| Max. dumping height | mm | 6,181 | |
| Max. digging depth | mm | 5,538 | |
| Max. vertical digging depth | mm | 4,727 | |
| Max. digging radius | mm | 8,296 | |
| Boom deflection angle | ° | ||
| Min. slew radius | mm | 2,325 | |
| Min. rear slew radius | mm | 2,325 | |
| Bucket digging force | kn | 85 | |
| Track type | Steel | ||
| Track width | mm | 600 | |
| Travel system | Track length | mm | 3,660 |
| Wheel base | mm | 2,910 | |
| Track gauge | mm | 1,990 | |
| Travel speed (Gear I/II) | km/h | 5.21/3.16 | |
| Gradeability | % | 70 | |
| Slew speed | rpm | 12.3 | |
| Bulldozing plate | Bulldozing plate width | mm | |
| Bulldozing plate height | mm | ||
| Lifting distance | mm | ||
| Hydraulic pump type | Variable pump×2 +gear pump×1 | ||
| Slew motor type | Piston hydraulic motor | ||
| Travel motor type | Piston hydraulic motor | ||
| Fuel tank capacity | L | 250 | |
| Hyraulic oil tank capacity | L | 130 | |
