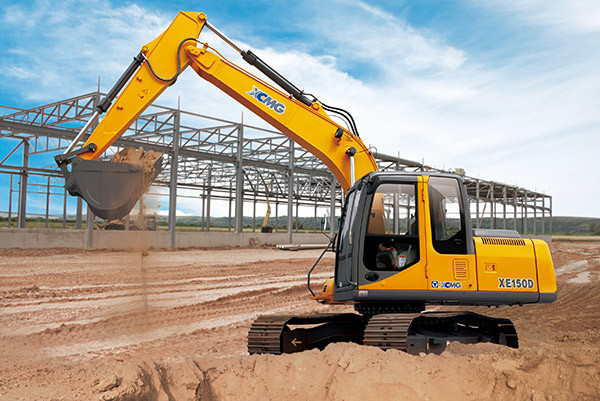

15ton New Crawler Excavator for Sale (XE150D)

15 Ton New Crawler Excavator (XE150D)
Our products have been widely used in the field of defense engineering, mine construction, road building, and farmland improvement, and have enjoyed great popularity in the world market. We have been exporting our products to many countries across the world and the products that we offer have attained many certifications, and enjoy a high reputation for their high quality and competitive price.

Company instruction:
Jinan Shanglong International Trade Co., Ltd is located in Jinan, shandong Province, China. With more years development, we specializes in exporting SINOTRUCK series trucks, such as tipper, tractor, mixer, Cargo truck, special-using truck, semi-trailer and spare parts.

Construction machinery such as truck cran, wheel loader, excavator, compactor, road rooler, pump truck and spare parts. Now in the international construction lifting machinery industry, their output and sales rank top and its economic scale and competitive benefits rank top, too.
We have been exporting trucks and construction machinery to many countries across the world. The products that we offered have attained many certifications, such as: ISO9001, ISO14001, CE, EU, GOST and enjoy a high reputation for their quality and competitive price.

Model		Unit	XE150D
Operating weight		kg	14400
Standard bucket capacity		m³	0.52-0.61
Engine	Engine Model	/	CUMMINS 4BTAA3.9
	Direct injection	/	√
	Four strokes	/	√
	Water cooling	/	√
	Turbo charged	/	√
	Air to air intercooler	/	√
	No. of cylinders	/	4
	Rated power/speed	kw/rpm	85.4/2200
	Max. torque/speed	N.m	447/1500
	Displacement	L	3.927
The main performance	Travel speed	km/h	5.2/3.4
	Swing speed	r/min	12.3
	Max. gradeability	/	≥35
	Ground pressure	kPa	38
	Max.Bucket digging force	kN	85
	Max.arm crowd force	kN	65
	Max.traction force	kN	135
Hydraulic system	Main pump	/	2
	Rate flow of main pump	L/min	2×120
	Max pressure of prime relief valve	MPa	31.4/34.3
	Max pressure of travel system	MPa	34.3
	Max pressure of swing system	MPa	25
	Max pressure of pilot system	MPa	3.9
Oil capacity	Fuel tank capacity	L	250
	Hydraulic tank capacity	L	130
	Engine lubrication	L	14
Overall dimensions	A Overall length	mm	7801
	B Overall width	mm	2590
	COverall height	mm	2880
	D Overall width of upperstructure	mm	2512
	E Track length	mm	3660
	F Overall width of undercarriage	mm	2590
	G Crawer width	mm	600
	H Track length on ground	mm	2910
	I Crawer gauge	mm	1990
	J Clearance under counter weight	mm	964
	K Ground clearance	mm	478
	L Min.tail swing radius	mm	2325
Working range	A Max. digging height	mm	8641
	B Max. dumping height	mm	6181
	C Max. digging depth	mm	5538
	D 8inch horizonal digging depth	mm	5287
	E Max. vertical wall digging depth	mm	4727
	F Max. digging reach	mm	8296
	G Min. swing radius	mm	2335
	Angle of arm deflection	Degree	__
