Diesel Cargo Truck Rhd Micro Truck 0.5ton

Diesel Cargo truck RHD Micro Truck 0.5ton

MAIN PARAMETER
1). Loading: 500kg
2). Cargo body inner size: 4200*1540*1900mm
3). Overall size: 2530*1430*330 mm
4). Power: 22 KW/30HP
5). Wheel base: 2200mm
6). Tyre: 5.50-13
More details please check the table.

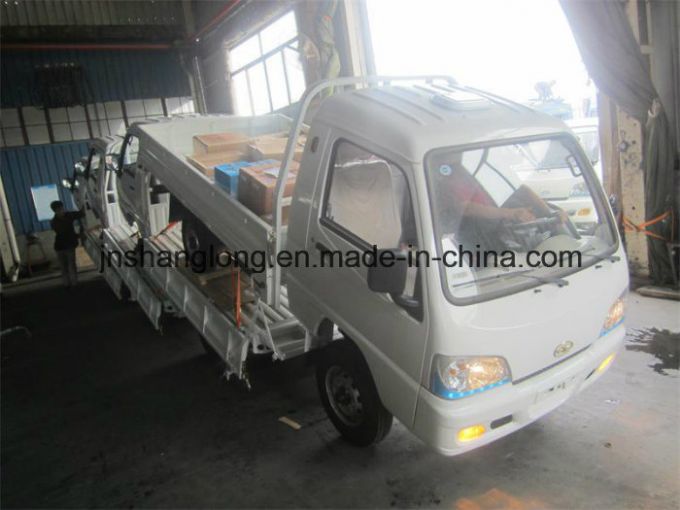

DETAILED PICTURES

CAB
Model			Single cabin
Wide of cab (mm)			1550
ENGINE
Model			Diesel LL380B
Type			Vertical,In-line,Four-stroke,Water-cool,Diesel engine
Max. Power (kW/r.p.m)			22/3200
Max. Torque (N.m/r.p.m)			73/2200-2300
Displacement (cc)			1357
CHASSIS & BODY
Drive type			4x2
Steering			Left hand drive
Curb Weight(kg)			1350
Load Capacity(kg)			500-1000
Total Weight(kg)			2100
Overall size (mm)			4380*1635*2000
Cargo body size (mm)			2430*1510*350
Wheel base (mm)			2200
Tread(F/R mm)			1300/1240
F/R Suspend (mm)			985/1195
Front axle		Type	Steel Tube Welded type
		Loading capacity(kg)	710
Rear axle		Type	Unitary Pipa type
		Loading capacity	1390
		speed ratio	5.375
Suspension		Leaf Spring Quantity	6+Shock absorber
		Leaf Spring Quantity	5+3
Clutch			Single,Dry
Gear box			LG5-15 (1:4.605,2:2.693,3:1.645,4:1,5:0.839,R:3.816)
Brake	Driving brake		Hydraulic double-pipeline,Front disc plate+Rear Drum
	Parking brake		Drum middle brake
Steering			Circulating spherical type
Tyre			5.50-13*5
Batteries			12V,90AH,Free maintenance
CONFIGURATIONS
Radio			With
Cigar lighter & Ash tray			With
Wood grain dashboard			With
Sun visors			With
Sunroof			With
Front defroster			With
Front fog lamps			With

TRANSPORATION (40'HQ ConTAINER OR RO-RO)

OTHER LIGHT TRUCK OF US

1) Diesel Flatbed Truck: Loading 0.5 ton, 1 ton, 2 ton, 3 ton, 3.5 ton, 5 ton;
2) Diesel BoxTruck: Loading 0.5 ton, 1 ton, 2 ton, 3 ton, 3.5 ton, 5 ton;
3) Diesel Dump Truck: Loading 2 ton, 3 ton, 5 ton, 7 ton, 10 ton, 12 ton;
4) Petrol Flatbed Truck: Loading 0.5 ton, 2 ton, 3 ton;
5) Petrol Box Truck: Loading 0.5 ton, 2 ton, 3 ton;
6) CNG Flatbed Truck: Loading 0.5 ton, 2 ton, 3 ton;

Expect your inquiry at any time for 0.5ton light truck.
