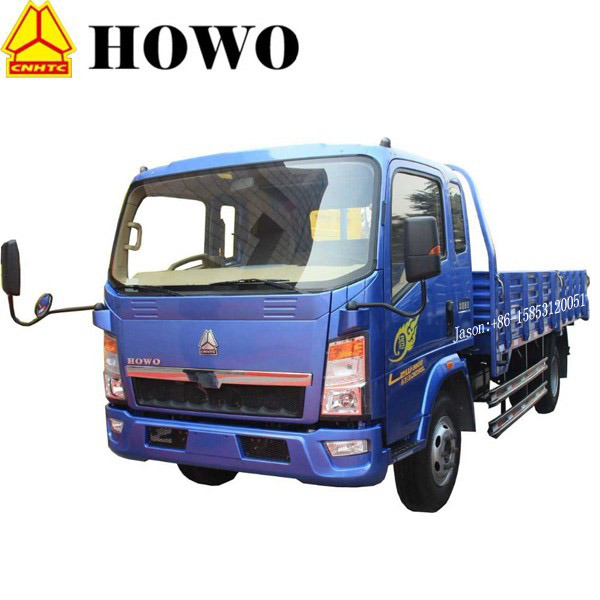

HOWO 103HP Diesel Euro2 3t Cargo Light Truck

HOWO Diesel Euro2 3T Cargo Light Truck

HOWO Light duty Truck Series is an entirely new product platform. The series uses L series cab which has integrated the style concept of CNHTC's latest A7 series cab into the most popular light duty truck in domestic and foreign market. It looks beautiful and grand and has comfortable and luxurious interiors.
Products type include lorry and construction vehicle such as tipper.
Drive types: 4x2
Engine power range: 75PS~116PS.

ZZ1047D3413C145/H5W-0498D17D2035L
CAB
Model	Single cab with 1 sleeper, width 1760mm. (Optional A/C)
Type	45° hydraulically tiltable to the front, 2-arm windscreen wiper system with three speeds, adjustable driver' s seat, with heating and ventilating system, interior double sun visor, sunroof, radio and USB interface, safety belts, adjustable steering wheel, horn.
Instrument panel	Active check central controller with indicators, with this integral instrument the daily manual checks on the vehicle and combined indicators of compressed air pressure, coolant temperature, engine oil pressure.
ENGINE
Manufacture	Deutz (Dalian) Engine Co., Ltd.
Model	CA4D32-10, Euro 2 emission standard
Type	Diesel, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling, 4-stroke, direct injection
Maximum output	103HP (76KW) at 3400rpm according to DIN
Maximum torque	210Nm at 1900~2100rpm
Number of cylinder	4
Displacement (L)	3.168
Bore (mm)	98
Stroke (mm)	105
Compression ratio (HP/L)	17.5
Specific fuel consumption (g/kwh)	225
Thermostat	71 opening begin
Other	Electric heating, Electrical extinguisher, Noise reduction board, Rigid fan
CHASSIS
Clutch	Single-plate diaphragm spring clutch, diameter 300mm, hydraulically operating
Transmission	WLY transmission, model WLY535L, synchromesh, 5 forward & 1 reverse. Ratio: 5.057, 2.609, 1.565, 1, 0.764, 4.575(R). (Optional HW35505TCL)
Front Axle	2.0, forging forming of front axle I-beam, to guarantee the stiffness and high strength. (Optional VPD022QB)
Rear Axle	3.5, mature punching welding axle and pressed axle housing. Ratio: 5.571
frame	U-profile parallel ladder frame with section of 170× 60× 5 mm, all cold riveted cross members
Front suspension	11 leaf springs, shock absorbers and stabilizer
Rear suspension	9 main leaf springs + 7 vice leaf springs
Spare wheel carrier	with one spare wheel
Fuel tank capacity (L)	80
Steering	LG9704470020, hydraulic steering with power assistance. Ratio: 18.85: 1
Brake	Service brake: dual circuit compressed air brake. (Optional parking/emergency brake: spring energy, compressed air operating on rear wheels; Optional auxiliary brake: engine exhausts brake)
Rims	5.50F-16, 6 hole-steel
Tyres	7.00-16 tube (optional 7.00R16 tubeless)
ELECTRICS
Operating voltage	24V, negative grounded
Starter	24V, 4.5Kw
Batteries	24V, 80Ah
Others	Cigar-lighter, horn, headlamps, fog lights, indicators and reverse light
DIMENSIONS (mm)
Wheel base	3360
Front wheel track	1620
Rear wheel track	1520
Front overhang	1160
Rear overhang	1475
Overall dimension (L*W*H)	5995*2000*2450
Body size (L*W*H)	3850*1900*400
WEIGHTS (kg)
Load weight	3000
Dead weight	2620
Gross vehicle weight	5620
PERFORMANCE
Approach angle (° )	17
Departure angle (° )	18
Max. driving speed (km/h)	90
Max. grade ability (%)	30
Min. ground clearance (mm)	210
Min. turning circle (m)	14
Fuel consumption (1/100km)	10.1/ 10.3
