190HP Motor Grader Gr180

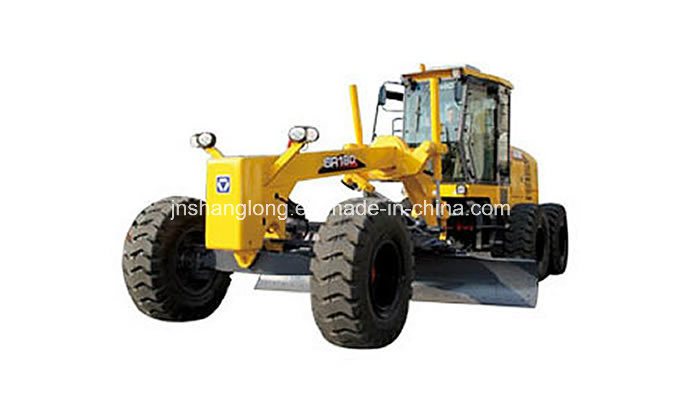

190HP X-CMG Motor Grader GR180

1. Shangchai D6114ZG1B(190HP)Diesel engine (Cummins Engine for option)
2. Arvin Meritor drive axle, imported differential,
3. Hangzhou power shift gear box, imported hydraulic components

Brake SystemThe travelling brake system adopts the hydraulic components of Rexroth (Germany). The hydraulic hub-type brake applies its performance on four middle & rear wheels. The parking brake system is of hub-type hand brake, which ensures the safety during travelling by applying its function on the output shaft of gearbox.

Steering system: Adopting sensor with load. The superior energy-saving fully hydraulic steering system makes it possilbe, with the articulated frame, to achive easy and flexible steering.

ChassisBeing of welded structure, just like a box, so it is strong enough to ensure no deformation.

Cabinwith wide-field vision, low noise, ultraviolet-protection glass, and with Curtis (of USA) or VDO (of Germany) instrument panel, height-adjustable seat, radio, ashtray, cup-seat etc. The cab is designed to be nice looking and very comfortable.

Slewing Mechanism: Be fitted with hard material lining, which ensures easy and flexible move of the blade, and high-accuracy flatness and low-cost maintenance as well.

Operation System: Forward/backward adjustable opertion Panel, with HUSCO multi-way valve, electrically- controlled ZF gearbox, so it is quite easy to make any operation.

Transmission: Adopting with auto-lock/unlock NO-SPIN anti-slide differential, heavy-duty balance box, heavy-duty roller chain transmisson, all of which make sure the transmission system being stable.


CategoryItemsValue
Engine model: D6114ZG1B
Rated power/speed: 140/2200r/min
Overall dimension: 9298x2601x3430 mm
Operating weight: 15400 kg
Operating weight on front wheel: 4620 kg
Operating weight on rear wheel: 10780 kg
Tire: 17.5-25 RP12
Min. Grounding clearance: 430 mm
Clearance between front and rear axle: 6266 mm
Clearance between middle and rear wheel: 639 mm
Min. Turning radius: 7.8 m
Max. Lifting height of shovel: 460 mm
Max. Shoveling depth of shovel: 500 mm
Molboard widthxheight: 3965x610 mm
Forward speed: 5, 8, 11, 19, 23, 38 km/h
Rear speed: 5, 11, 23 km/h
Max. Traction force: 80 kN
Max. Climb ability: 20 %
Capacity of fuel tank: 280 L
Filling oil in engine: 24 L
Capacity of blance tank: 46 L
Filling oil in axle: 28 L
Hydraulic oil: 110 L
Turbochared tank: 2.5 L
Filling oil in transmission: 26 L

Category	Items	Value
Engine model		D6114ZG1B
Rated power/speed	km/h	140/2200r/min
Overall dimension	mm	9298x2601x3430
Operating weight	kg	15400
Operating weight on front wheel	kg	4620
Operating weight on rear wheel	kg	10780
Tire		17.5-25 RP12
Min. grounding clearance	mm	430
Clearance between front and rear axle	mm	6266
Clearance between middle and rear wheel	mm	1639
Max. steering angle on front wheel	%	45(left and right)
Max. tipping angle on front wheel	%	17
Max. swing angle on front axle	%	15
Steering angle of frame	%	25(left and right)
Min. turning radius	m	7.8
Max. lifting height of shovel	mm	460
Max. shoveling depth of shovel	mm	500
Max. side-dumping angle of shovel	%	90
cutting angle of shovel	%	28-70
Circle reversing rotation angle of shovel	%	360
Molboard widthxheight	mm	3965x610
Forward speed	km/h	5, 8, 11, 19, 23, 38
Rear speed	km/h	5, 11, 23
Max. traction force	kN	80
Max. climb ability	%	20
Pressure of tyre	bar	2.6
Pressure of working system	MPa	18
Pressure of transmission	MPa	1.6-1.8(16-18kg/cm2)
Colding liquid	L	50
Capacity of fuel tank	L	280
Filling oil in engine	L	24
Capacity of blance tank	L	46
Filling oil in axle	L	28
Hydraulic oil	L	110
Turbochared tank	L	2.5
Filling oil in transmission	L	26
