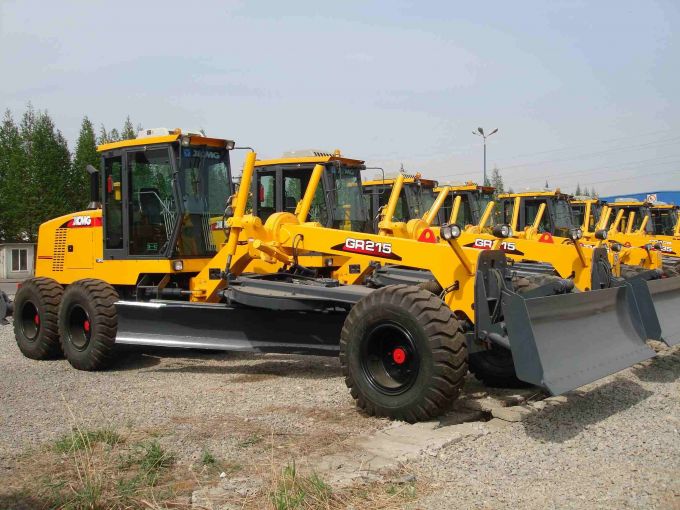

Construction Road Machine 215HP Motor Grader (GR215)

Construction Road Machine 215HP Motor Grader (GR215)
1)New appearance.
2)The adopted articulated frame assists the front wheel to steer, featuring small turning radius and flexibility.
3)Electro-hydraulic controlled brake power shift gearbox includes 6 Forward gears, and 3 Reverse gears.
4)The adopted international matched hydraulic parts ensure the reliable operation.

5)The blade movement is hydraulic controlled fully.
6)The rear axle is three-way drive axle with NO-SPIN self -locking differential.
7)The reasonable distribution of the adjustable operation panel, seat, lever and instrument guarantees the comfortable and convenient operation.
8)The luxury and beautiful cab features wide visibility and good sealing.
9)The machine can be equipped with front bulldozing plate, rear scarifier, front harrow and auto-leveling system.

Basic parameter
Operating weight	kg	16500kg
Dimension (L x W x H )	mm	8970x2625x3470 mm
Track	mm	2600
Tyres		17.5-25
Engine
Engine model	6CTA8.3
Rated power/rotary speed	kW/r/min	160kW/2200rpm
Performance specification
Travelling speed ,forward	km/h	5,8,11,19,23,38 km/h
Travelling speed ,reverse	km/h	5,11,23
Tractive force(f=0.75)	KN	82
Max. gradeability	%	20
Tire inflation pressure	kPa	260
Working hydraulic pressure	MPa	16
Transmission pressure	MPa	1.3~1.8
Operating specification
Max. steering angle of front wheels	°	±49
Max. lean angle of front wheels	°	±17
Max. oscillation angle of front axle	°	±15
Max. oscillation angle of balance box		15
frame articulation angle	°	±27°
Min. turning radius using articulation	m	7.3
Biade
Maximum lift above ground	mm	450
Maximum depth of cutting	mm	500
Maximum blade position angle	°	90
Blade cutting angle	°	28°-70°
Circle reversing rotation	°	360°
Moldboard width X height	mm	4270×610
